Ningbo Master Soken Electrical Co., Ltd. established in 1999, is a director member of Electrical Accessories and Appliance Controllers Branch of CEEIA. We are professional manufacturer engaged in the research, development, production, sale and service of various switches, including Rocker switches, Rotary switches, Push-button switches, Key switches, Indicator lights which are widely used in different fields such as Home Appliances industrial Facilities, Instruments and Meters, Communication Equipments, Fitness and Beauty Apparatus.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
RK1-22
-
Max. Current:
-
16A
-
Mechanical Life:
-
10000cycles
-
Color:
-
Red or black
-
Operating temperature:
-
-25℃~85℃
-
Function:
-
SPST
-
Push button material:
-
PC
-
Circuit function:
-
on-off with light
-
Electrical life:
-
10000 cycles
-
Certificate:
-
CQC TUV UL VDE ENEC KEMA KTL
-
Rating:
-
250VAC 16A or 125VAC 16A
-
Housing material:
-
PA66(nylon 66)
-
Pad printing color:
-
"O -" or "ON OFF"
-
Certification:
-
UL VDE TUV ENEC KEMA CB
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOKEN
-
Model Number:
-
RK1-22
-
Max. Current:
-
16A
-
Mechanical Life:
-
10000cycles
-
Color:
-
Red or black
-
Operating temperature:
-
-25℃~85℃
-
Function:
-
SPST
-
Push button material:
-
PC
-
Circuit function:
-
on-off with light
-
Electrical life:
-
10000 cycles
-
Certificate:
-
CQC TUV UL VDE ENEC KEMA KTL
-
Rating:
-
250VAC 16A or 125VAC 16A
-
Housing material:
-
PA66(nylon 66)
-
Pad printing color:
-
"O -" or "ON OFF"
-
Certification:
-
UL VDE TUV ENEC KEMA CB
|
Rating
|
250VAC 16A or 125VAC 16A
|
|
Rated Load
|
16A 250V AC
|
|
Contact Resistance
|
100MΩ Max
|
|
Dielectric Intensity
|
1500VAC/ 5S for terminal and terminal. 3000VAC 5s for terminal and ground
|
|
Withstand Voltage
|
1500VAC/min
|
|
Operating Temperature
|
-25~85°C
|
|
Insulation Resistance
|
500VDC, 100MΩ Min
|
|
Electrical Life
|
≥10,000 cycles
|
|
Pins (Terminals)
|
6 pins
|
|
Housing material
|
PA66
|
|
Push Button
|
PC
|
|
Contact Resistance：
|
100mΩ Max
|
|
|
Insulation Resistance：
|
500VDC，100MΩ Min
|
|
|
Dielectric Strength：
|
Terminal and terminal：1500VAC 5s
|
|
|
|
Terminal and ground：3000VAC 5s
|
|
|
Operating Temperature：
|
-25～85°C
|
|
|
Electrical Life：
|
10000 Cycles
|
|
|
Rating：
|
|
|
|
RK1Series：
|
16A 125VAC(UL)
16(6)A 250VAC(VDE) 16A 250VAC (TUV KEMA/ENEC K CQC RCM) 23A 250VAC T100/55(TUV) |
|
|
RK2Series：
|
6A 125VAC,10A 125/250VAC(UL)
6(4)A 250VAC(VDE) 10A 250VAC(TUV KEMA/ENEC CQC) 16A 250VAC T100/55(CQC TUV) |
|
|
Model
|

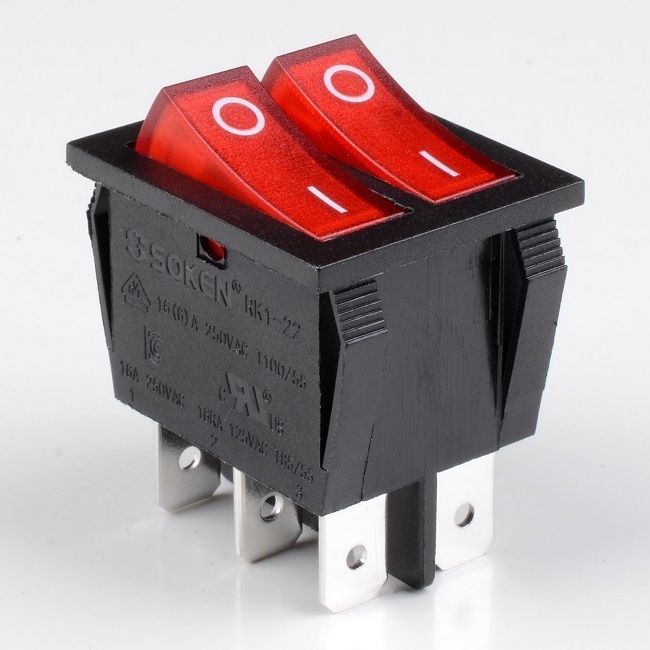

RK1-22 Rocker Switch
|
|
|
|
|
Function
|
on-off with neon
|
on-off/on-off-on/on-on
|
|
|
|
Base plastic
|
Nylon 66
|
|
|
|
|||
|
Button plastic
|
PC
|
|
|
|
|||
|
Copper parts such as terminal
|
Copper
|
|
|
|
|||
|
Terminal surface treatment
|
Silver plating
|
|
|
|
|||
|
Contact
|
Ag or Composite silver
|
|
|
|
|||
|
Spring
|
Steel Wire
|
|
|
|
|||
|
Waterproof Material
|
PVC
|
|
|
|
|||
