Quick Details
-
Brick size:
-
400*200*200 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HF Brand
-
Voltage:
-
220v-440v
-
Dimension(L*W*H):
-
1700x1200x1800mm
-
Marketing Type:
-
New Product 2022
-
Weight (KG):
-
1200 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
HF2-10 clay brick machine price
-
Molding Cycle:
-
8-12Seconds
-
Pallet Size:
-
no need pallet
-
Host machine weight:
-
1200kg
-
color:
-
accroding to your requirement
-
Pallet kinds:
-
can change for different bricks
-
Rated pressure:
-
16MPA
-
Power:
-
7.5KW
-
Raw material:
-
Clay Earth Soil Mud
Quick Details
-
Type:
-
Interlock Block Making Machine
-
Brick Raw Material:
-
Clay
-
Production Capacity (Pieces/8 hours):
-
5760pcs bricks/ 8hours
-
Brick size:
-
400*200*200 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HF Brand
-
Voltage:
-
220v-440v
-
Dimension(L*W*H):
-
1700x1200x1800mm
-
Marketing Type:
-
New Product 2022
-
Weight (KG):
-
1200 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
HF2-10 clay brick machine price
-
Molding Cycle:
-
8-12Seconds
-
Pallet Size:
-
no need pallet
-
Host machine weight:
-
1200kg
-
color:
-
accroding to your requirement
-
Pallet kinds:
-
can change for different bricks
-
Rated pressure:
-
16MPA
-
Power:
-
7.5KW
-
Raw material:
-
Clay Earth Soil Mud

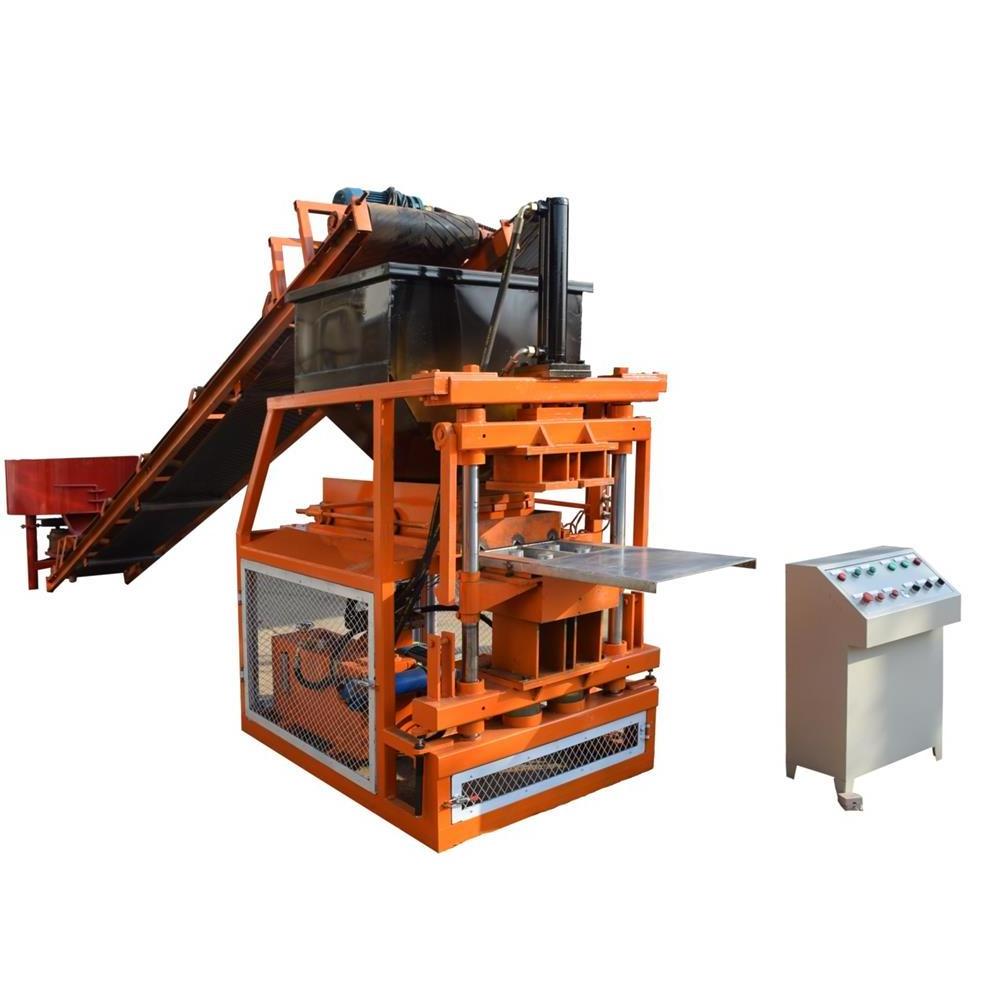

1. HF2-10 automatic hydraulic interlocking manual brick making machine/how to build earth homes is a small hydraulic brick machine which can be easily operated by one person. And it has been widely used in African countries.
2. The machine uses a electric motor to drag the CBT-E316 gear pump, and thus produces the oil pressure is about 35 Mpa to push the hydraulic oil cylinder doing to-and-fro motion The process of shaping and demoukling can be finished in 8 seconds. Additional, the production of this machine is two times more than that of similar foreign manual models and the labor intensity is greatly decreased.
3. By adjusting the screws, the height of the
|
Main Technical Specifications
|
|
|
|
Overall Dimension
|
1700(L)*1200 (W)*1800(H)mm
|
|
|
Power
|
7.5KW
|
|
|
Voltage
|
380V/220V(adjustable to local voltage)
|
|
|
Shaping period
|
8-10s
|
|
|
Operation pressure
|
16 Mpa
|
|
|
Capacity
|
5760pcs/day
|
|
|
Pallet
|
No need pallet
|
|
|
Weight
|
1200KGS
|
|
|
Labor need
|
2 person
|
|
|
Material
|
Clay, soil, cement or concrete
|
|
|
Mould
|
Machines come standard with 300mm interlocking brick mould
|
|
|
Accessories
|
Optional extra: spares (one year), brick cutter, brick tester, 150mm Mould 300mm Conduit Mould, and 300mm Capping Mould
|
|
