Quick Details
-
Color:
-
black
-
Certificate:
-
TUV
-
Function:
-
used to solar panel
-
amp:
-
10A
-
volt:
-
250V
-
Cable Standard:
-
2.5mm2 4.0mm2 6.0mm2
-
Gende:
-
1NO 1MC
-
Connecting system:
-
Crimp connection
-
Momentary:
-
Latching
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-
Limit Switch
-
Color:
-
black
-
Certificate:
-
TUV
-
Function:
-
used to solar panel
-
amp:
-
10A
-
volt:
-
250V
-
Cable Standard:
-
2.5mm2 4.0mm2 6.0mm2
-
Gende:
-
1NO 1MC
-
Connecting system:
-
Crimp connection
-
Momentary:
-
Latching
General Introduction
LIMIT SWITCHES are installed daily in all types of industrial machinery, in elevators, in the medical or marine sectors, all over in the world, in applications ranging from the heat of deserts to the cold of Iceland. In order to be used in a such wide variety of sectors and countries
.
Features:
1. Designed for applications of small mounting space
2. Constructed with Metal based and plastic cover
3. Mechanical movement and electrical line separtes
4. Positive opening mechanism*Improved current carrying capacity to 10A
Technical Specification
| Operating Speed | 0.5mm~50cm/sec | |||||
| Operating Frequency | Mechanical:120 operations/min;Electrical:30 operations/min | |||||
| Contact Resistance | 25mΩ max. (initial) | |||||
| Insulation Resistance | 100mΩ min(at 500VDC) | |||||
| Dielectric Strength | 1000VAC, 50/60Hz for 1 min between terminals of the same polarity | |||||
| 1500VAC, 50/60Hz for 1 min between load currents and no-load currents parts | ||||||
| 1500VAC, 50/60Hz for 1 min between terminal and ground | ||||||
| Vibration | malfunction:10Hz~55Hz, 1.5mm double amplitude | |||||
| Shock | Mechanical resistance:1000m/s2; malfunction:300m/s2 | |||||
| Ambient Temperature | minus 5ºC~65ºC | |||||
| Ambient Humidity | <95%RH | |||||
| Working Life | Mechanical:2*107;Electrical:3*105 | |||||
| Protection Degree | IP65 | |||||
| Model | Operating Force max |
Releasing Force min |
Pretravel max |
Overtravel min |
Movement Differential |
Operating Position |
| LX-ME8104 | 7.4N(0.75kgf) | 0.1N(1kgf) | 20° | 50° | 12° | / |
| LX-ME8108 | 7.4N(0.75kgf) | 0.1N(1kgf) | 20° | 50° | 12° | / |

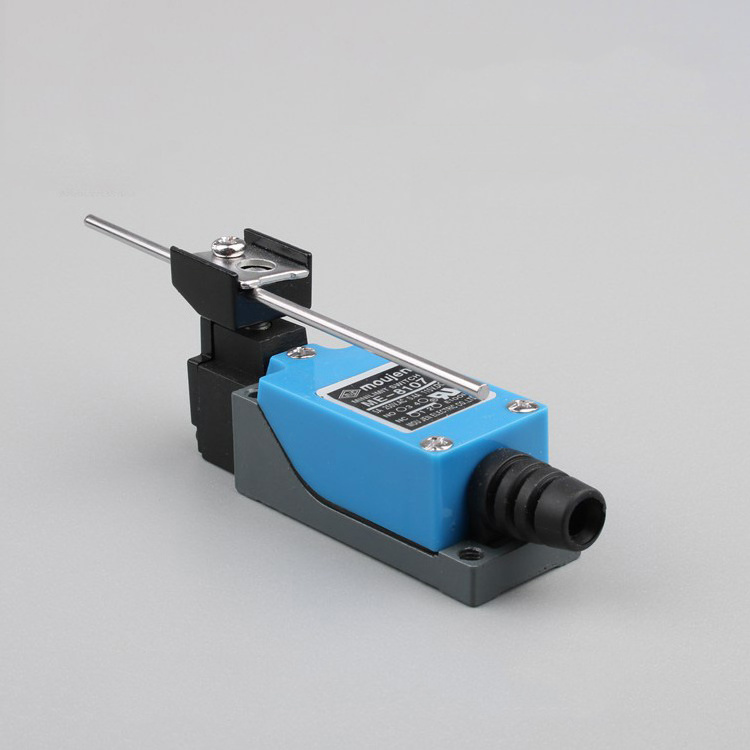

| LX-ME8107 | 7.4N(0.75kgf) | 0.1N(1kgf) | 20° | 50° | 12° | / |
| LX-ME8111 | 8.9N(0.9kgf) | 1.5N(0.15kgf) | 1.5mm | 4mm | 1mm | 26±0.8mm |
| LX-ME8112/8122 | 8.9N(0.9kgf) | 1.5N(0.15kgf) | 1.5mm | 4mm | 1mm | 37±0.8mm |
|
LX-ME8166/8168/ 8169/9101 |
1.5N(0.15kgf) | / | 30mm | / | / | / |
