Quick Details
-
Brand Name:
-
Gxcom
-
Model Number:
-
TS8248P
-
Place of Origin:
-
China
-
Model:
-
TS8248P
-
Product Name:
-
Unmanaged 48 port PoE Switch
-
Certification:
-
CE RoHS FCC
-
H x W x D (mm):
-
440mm*230mm*45mm /515mm*300mm*95mm
-
MAC Address:
-
8K
-
Brand:
-
Gxcom
-
PoE Ports:
-
1-48 port supports PoE
-
Applications:
-
CCTV Security System
-
Keywords:
-
Poe Switch 48 Port
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex
-
Switch Capacity:
-
112Gbps
-
Brand Name:
-
Gxcom
-
Model Number:
-
TS8248P
-
Place of Origin:
-
China
-
Model:
-
TS8248P
-
Product Name:
-
Unmanaged 48 port PoE Switch
-
Certification:
-
CE RoHS FCC
-
H x W x D (mm):
-
440mm*230mm*45mm /515mm*300mm*95mm
-
MAC Address:
-
8K
-
Brand:
-
Gxcom
-
PoE Ports:
-
1-48 port supports PoE
-
Applications:
-
CCTV Security System
-
Keywords:
-
Poe Switch 48 Port
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at
Product Description

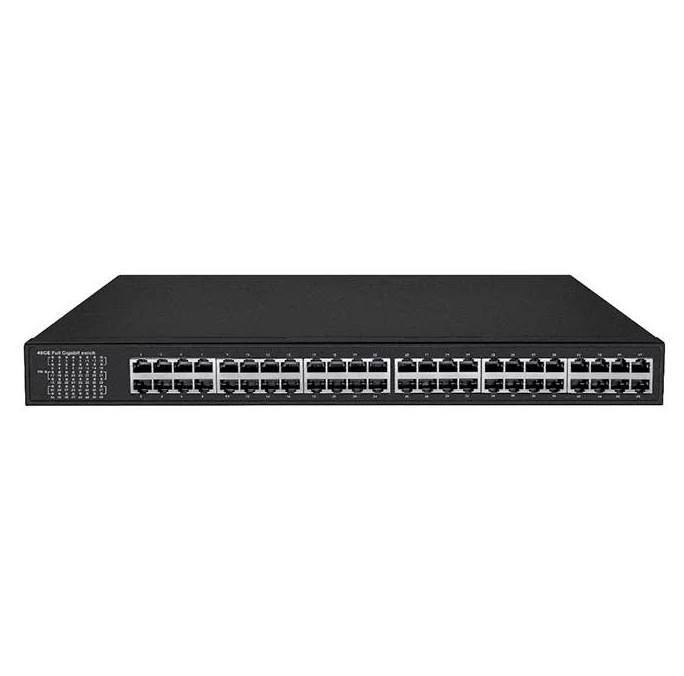

Unmanaged Gigabit 48 Port PoE Switch
Specification
|
Model
|
TS8248P
|
|
Port
|
48*10/100/1000Base-TX PoE port（Data/Power）
|
|
PoE Standard
|
Port1-Port2; Support IEEE802.3af/at/PoE+=/BT
Port3-Port48; Support IEEE802.3af/at |
|
Bandwidth
|
112gbps
|
|
Transmission Mode
|
Store and Forward(full wirespeed)
|
|
Packet Forwarding
|
80.64Mpps
|
|
MAC Address
|
8K
|
|
Buffer
|
4.1M
|
|
Transmission Distance
|
10BASE-T ： Cat3,4,5 UTP(≤250 meter)
100BASE-TX ： Cat5 or later UTP(150 meter) 1000BASE-TX ： Cat6 or later UTP(150 meter) |
|
Power Input
|
Built-in power AC：100～240V 50-60Hz 7A(800W_9A)
|
|
Power Pin
|
Port1-Port2:Default 1/2_4/5(+)，3/6_7/8(-)；
Port3-Port48:Default 1/2(+)，3/6(-)； |
|
Single port power
|
Port1-Port2:MAX 90W;
Port3-Port48:MAX 30W; |
|
LED Indicator
|
PWR:Power LED
1-48:(Link LED=10/100M Link、1000M=Gigabit Link) |
|
Operating Temperature/Humidity
|
-10～+55°C；5%～90% RH Non coagulation
|
|
Storage Temperature/Humidity
|
-40～+75°C；5%～95% RH Non coagulation
|
|
Product size/Packing size（L*W*H）
|
440mm*230mm*45mm
515mm*300mm*95mm |
|
N.W/G.W（kg）
|
4.2kg/5kg
|
