Quick Details
-
Model Number:
-
FPQ-33/10
-
Product name:
-
Pin Insulator
-
Certification:
-
ISO9001
-
Usage:
-
Insulation Protection
-
Creepage distance:
-
1200mm; 900mm
-
Sample:
-
Sample Avaliable
-
Mechanical failing load:
-
10KN
-
Packing:
-
Carton
-
MOQ:
-
100pcs
-
Voltage:
-
33kV
-
Delivery:
-
30days
Quick Details
-
Breaking Capacity:
-
High
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
L&R
-
Model Number:
-
FPQ-33/10
-
Product name:
-
Pin Insulator
-
Certification:
-
ISO9001
-
Usage:
-
Insulation Protection
-
Creepage distance:
-
1200mm; 900mm
-
Sample:
-
Sample Avaliable
-
Mechanical failing load:
-
10KN
-
Packing:
-
Carton
-
MOQ:
-
100pcs
-
Voltage:
-
33kV
-
Delivery:
-
30days

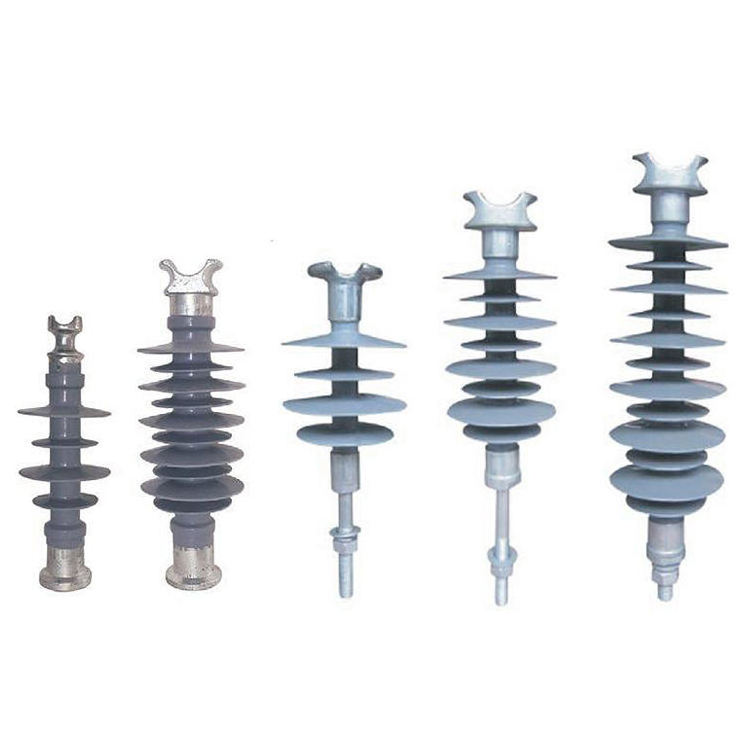

It has good cantilever strength, torsion, the impact of the shack and explosion-proof superior performance, reliability, insulation, light weight,
easy installation, voltage levels typically from 6 to 36 KV. Its top and bottom installed are the same as the corresponding size of porcelain
insulator,so they can be interchangeable use.
Purchase notice:
1 the specifications and pattern of the both end fitting
2 the main dimension and rate voltage
3 the colour of silicon rubber, usually it is gray
4 other particular requirement
Technical parameters
| product model | rated voltage (kV) | rated mechanical: bending load (kN) | structure height H.(mm) | minimum arc distrance Li. (mm) | min. creepage distance Lc. (mm) | diameter of shed D. (mm) | lightning impulse: withstand voltage (peak) (kV) | P.F. 1min wet withstand voltage (virtual value) (kV) |
| FPQ-11/5 | 11 | 5 | 280 | 180 | 380 | 90 | 105 | 45 |
| FPQ-11/10 | 11 | 10 | 300 | 165 | 420 | 140/114 | 105 | 45 |
| FPQ-11/12.5 | 11 | 12.5 | 320 | 195 | 450 | 100 | 95 | 45 |
| FPQ-15/12.5 | 15 | 12.5 | 280 | 160 | 665 | 130/100 | 145 | 65 |
| FPQ-24/8 | 24 | 8 | 315 | 200 | 450 | 120/100 | 145 | 65 |
| FPQ-24/11 | 24 | 11 | 476 | 165 | 610 | 135/105 | 145 | 65 |
| FPQ-33/10 | 33 | 10 | 406 | 280 | 940 | 120/92 | 200 | 95 |
| FPQ-33/12.5 | 33 | 12.5 | 425 | 320 | 1200 | 122/92 | 230 | 95 |
| FPQ-36/20 | 36 | 20 | 545 | 405 | 1650 | 150/120 | 265 | 135 |
