Quick Details
-
Brand Name:
-
LEFOO
-
Model Number:
-
LF08
-
Max. Current:
-
40.2A
-
Max. Working Pressure:
-
5000psi
-
Application:
-
Water Oil Air
-
Media:
-
Non Hazardous Gas
-
Connection:
-
G1/4
-
Rated voltage:
-
120VAC/240VAC
-
TERMINAL:
-
1/4 Blade
-
Switch Type:
-
SPST NC
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
240Vac
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LEFOO
-
Model Number:
-
LF08
-
Max. Current:
-
40.2A
-
Max. Working Pressure:
-
5000psi
-
Application:
-
Water Oil Air
-
Media:
-
Non Hazardous Gas
-
Connection:
-
G1/4
-
Rated voltage:
-
120VAC/240VAC
-
TERMINAL:
-
1/4 Blade
-
Switch Type:
-
SPST NC
Products Description

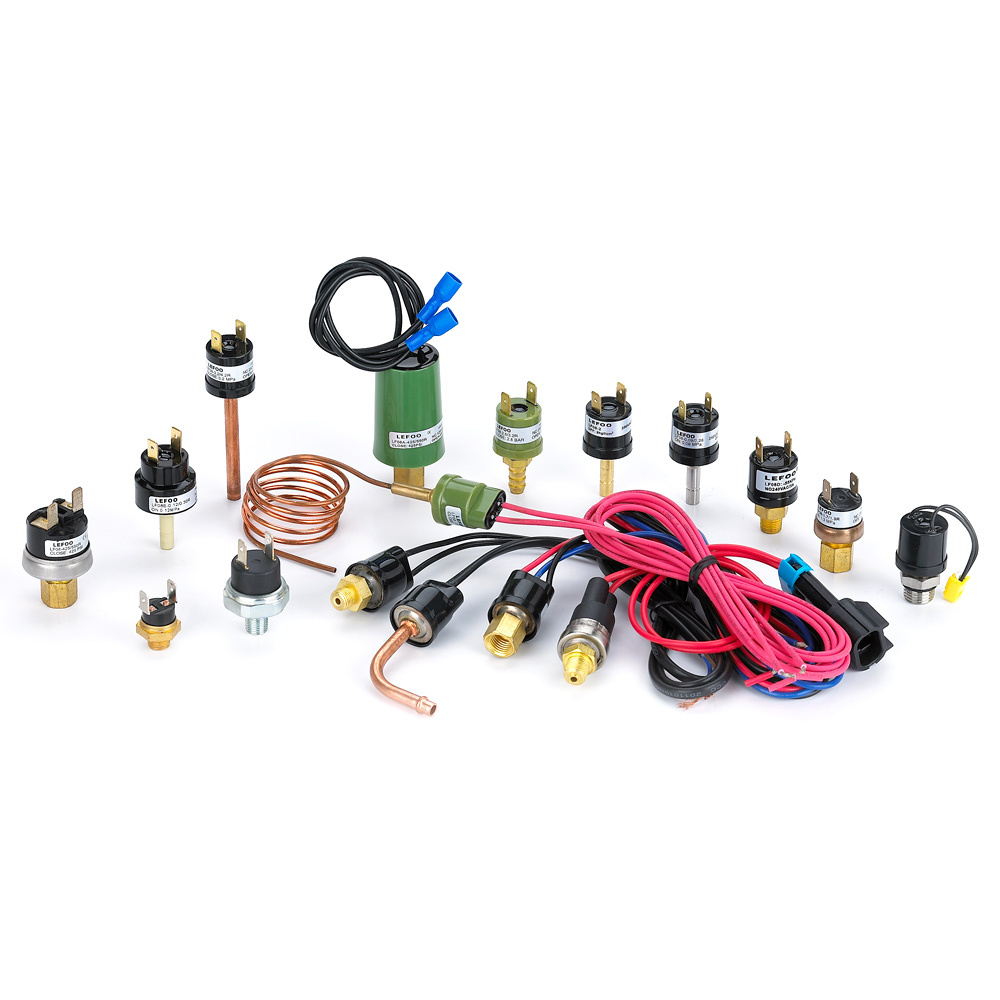

The
LF08
switches are fixed set point, factory calibrated pressure switches. It is automatic reset, and can be Normally open or normally close contacts. All metallic wetted components make the LF08 switch compatible with a multitude of chemicals in liquid or gas form.
It is offered numerous types of electrical terminations from different size and style push on terminals to wire leads with anarray of standard industry connectors.
In house machining capabilities allows Lefoo to offer a wide variety of pressure fitting from different thread types and sizes to units with internal deflator and cupper tubbing for sawing operations.
It is offered numerous types of electrical terminations from different size and style push on terminals to wire leads with anarray of standard industry connectors.
In house machining capabilities allows Lefoo to offer a wide variety of pressure fitting from different thread types and sizes to units with internal deflator and cupper tubbing for sawing operations.
|
Number
|
Circuitry
|
Base Material
|
Connection
|
Electrical connections
|
|
1
|
SPST-NC
|
brass
|
1/8NPT
|
6.35×0.8
|
|
2
|
SPST-NO
|
plated steel
|
1/4NPT
|
4.8×0.8
|
|
3
|
SPDT
|
/
|
R1/8
|
18AWG Wire leads
|
|
4
|
/
|
/
|
R1/4
|
/
|
|
5
|
/
|
/
|
G1/8
|
/
|
|
6
|
/
|
/
|
G1/4
|
/
|
|
7
|
/
|
/
|
1/4 Copper tube
|
/
|
|
8
|
/
|
/
|
7/16UNF Male
|
/
|
|
9
|
/
|
/
|
7/16UNF Female
|
/
|
|
10
|
/
|
/
|
7/16UNF Female with deflector
|
/
|
Specification
|
Model
|
LF08
|
|
|
||
|
Media
|
Air,Water,motor,lils,transmission oils,Hydrocarbon Media,Refrigeration fluid
|
|
|
||
|
Pressure Range/
Tolerance/ Proof Pressure |
Pressure Range
|
Tolerance
|
Proof Pressure
|
||
|
|
0.2~6bar(low presure)
|
±0.5bar
|
15bar
|
||
|
|
6~10bar
|
±0.7bar
|
35bar
|
||
|
|
11~20bar
|
±1bar
|
45bar
|
||
|
|
21~30bar
|
±1.5bar
|
|
||
|
|
31~45bar
|
±1.5bar
|
|
||
|
Burst Pressure
|
5000psi
|
|
|
||
|
Operating Temperature Range
|
Environment temperature:low pressure:-30~65℃,High pressure:-35~120℃
Medium temperature:-50~120℃ |
|
|
||
|
Switch Type
|
SPST(NC OR NO);SPDT
|
|
|
||
|
Electric Rating
|
120Vac 6FLA,40.2LRA;240Vac 4FLA,26LRA 120/240Vac 375VA;36Vdc 3A
|
|
|
||
|
Endurance
|
100000
|
|
|
||
|
Connection
|
Please see the selection table （customizable）
|
|
|
||
|
Electrical connections
|
6.35*0.8 ; 4.8*0.8 : Wire connection（can be customized length and electrical plug）
|
|
|
||
Conversion:1bar=14.5psi 1MPa=10bar
