Quick Details
-
Cooling Capacity:
-
100ton
-
Place of Origin:
-
China
-
Brand Name:
-
ColdTech
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
100 KG
-
Optional Materia of Sliding Door:
-
PPGI/Embossed Aluminium/Stainless Steel
-
Drive:
-
Manual or Electricity Control
-
Safety Device:
-
Emergency Escape Lock
-
Fire Resist:
-
B2 Grade Fire Retardant
-
Thermal Insulation:
-
0.018~0.029W/(M/K)
-
Door Panel Thickness:
-
75mm/100mm/150mm/200mm
-
Seal Structure:
-
EPDM Weather Seal Rubber
-
Leaf Quantity:
-
Single Leaf or Double Leaf
-
Hinge:
-
Zinc Alloy or Stainless Steel
-
Heating Device:
-
Anti-Icing Heating Belt
Quick Details
-
Temperature:
-
-40℃ ~ +20℃
-
Compressor brand:
-
TECUMSEH, Copeland, Bitzer, Emerson
-
Panel Thickness:
-
100mm, 200mm, 120mm, 75mm, 50mm, 150mm
-
Cooling Capacity:
-
100ton
-
Place of Origin:
-
China
-
Brand Name:
-
ColdTech
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
100 KG
-
Optional Materia of Sliding Door:
-
PPGI/Embossed Aluminium/Stainless Steel
-
Drive:
-
Manual or Electricity Control
-
Safety Device:
-
Emergency Escape Lock
-
Fire Resist:
-
B2 Grade Fire Retardant
-
Thermal Insulation:
-
0.018~0.029W/(M/K)
-
Door Panel Thickness:
-
75mm/100mm/150mm/200mm
-
Seal Structure:
-
EPDM Weather Seal Rubber
-
Leaf Quantity:
-
Single Leaf or Double Leaf
-
Hinge:
-
Zinc Alloy or Stainless Steel
-
Heating Device:
-
Anti-Icing Heating Belt

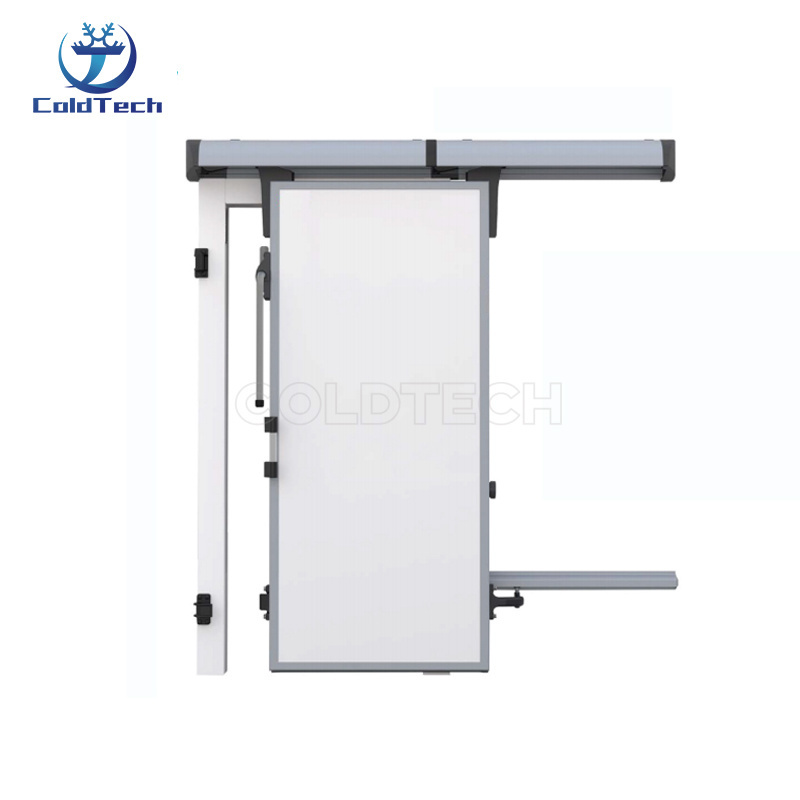

Manual or Automatic Walk in Freezer Sliding Door Cold Storage Room Door
Doors are among the most important elements of cold storage. Cold storage doors must provide convenience for all entries and exits to cold storage facilities along with keeping the temperature levels of a cold room within permitted range. They need to be in different types for different processing and storing conditions, product characteristics and needs of the facility. Correct choice of doors enables users to use cold storage in the most effective and efficient way.
Products Description
There are two types of sliding door, manual sliding door and electric sliding door. It has good sealing, and long life span, usually used for medium to large size of cold room, and there is safety lock on it for escaping from inside.
Our Advantages
1. Escape system will keep you safe, you can open cold room door from inside when it is closed.
2. The core material of cold room door is polyurethane, so they have good sealing and insulation
performance.
3. It is easy to install cold room door.
4. For cold room with low temperature, cold room door can be equipped with electric heating wire in door
frame to prevent frosting.
5. Cold room door can be covered with embossed aluminum steel additionally for longer service life.
2. The core material of cold room door is polyurethane, so they have good sealing and insulation
performance.
3. It is easy to install cold room door.
4. For cold room with low temperature, cold room door can be equipped with electric heating wire in door
frame to prevent frosting.
5. Cold room door can be covered with embossed aluminum steel additionally for longer service life.
Manufacturing Technique
Applicable without Floor:
Door type: electric translation sweeping door, door opening size 1600*2100mm
Open right, thickness 150mm + double-sided 0.6mm stainless steel
Customer construction: if it is a low-temperature storage, the aluminum groove +
heating wire is embedded in the ground
Open right, thickness 150mm + double-sided 0.6mm stainless steel
Customer construction: if it is a low-temperature storage, the aluminum groove +
heating wire is embedded in the ground
Applicable with Floor:
Door type: electric translation sweeping door, door opening size 1600*2100mm Open right, thickness 150mm + double-sided 0.6mm
stainless steel Customer construction: 1.When pouring concrete slopes, aluminum grooves need to be fixed in the slopes, see the picture on the right
2.If it is a low-temperature storage, the aluminum tank is equipped with a heating wire
Customer Case
Product Paramenters
|
Parameters of Cold Room Sliding Door
|
|
|
|
Temperature of cold room
|
-45°C～+50°C
|
|
|
Applicable industry
|
Retailing, storage, food, medical industry, etc.
|
|
|
Surface metal of door panel
|
PPGI/Color steel, Stainless steel, etc.
|
|
|
Inside material
|
Environmental PU with high density and fire resistance
|
|
|
Thickness of door panel
|
100mm，150mm
|
|
|
Size of door opening
|
Customized
|
|
|
Way of control
|
Manual or electric
|
|
|
Way of opening
|
Left-open, right-open, double-open
|
|
|
Safety lock
|
For escape from cold room
|
|
|
Sealing strip
|
Magnetic strips inside soft plastic for good sealing
|
|
|
Electric heating wire
|
For preventing frosting of low temperature cold room
|
|
|
Observation window
|
For observing situation inside cold room (Optional)
|
|
Packaged and Shipping
Recommend Products
Providing solutions suitable for all types of sectors with its in-house developed and produced cold storage doors, ColdTech offers the following types of doors:
