- Product Details
- {{item.text}}
Quick Details
-
Core Components:
-
Stainless Steel Tank, Manhole, Spare parts
-
Marketing Type:
-
Hot Sale 2023
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Precise
-
Weight:
-
900 KG
-
Core Components:
-
Stainless Steel Tank, Manhole, Spare parts
-
Marketing Type:
-
Hot Sale 2023
Products Description

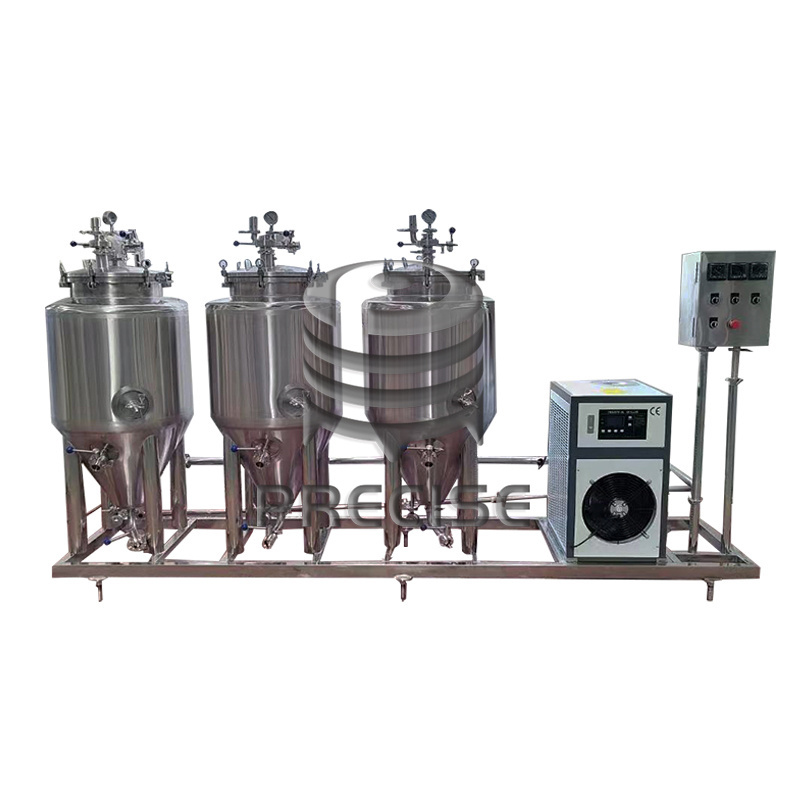

This 50L Nano home brewing equipment is between home brewing and small beer brewing, which not only meets the brewing needs of home brewing enthusiasts, but also provides a transition for home brewers from manual brewing to commercial brewing.
Features:
1. Includes all the functions required for craft beer production process.
2. The temperature and process are controllable, so that it is easy to record and then import the process into large-scale craft beer equipment.
3. The design is scientific and reasonable, simple and easy to operate, easy to get started.
4. Affordable price,small footprint.
5. The number and size of fermentation tanks can be customized according to customer needs.
Product Paramenters
50L Nano home brewing equipment
(1 vessel + 3 FV) Electrical Heating
|
S.N.
|
Name&description
|
Qty:pc
|
|
1
|
Malt milling
|
1
|
|
|
- Millstone type, adjustable mill degree;
|
|
|
|
-Power: 0.75kw
|
|
|
|
- Capacity: 80kg
|
|
|
2
|
Brewhouse
|
|
|
2.1
|
Mash tun/Lauter tun/kettle/whirlpool
|
1
|
|
|
- Accessories include PT100, thermowell, sanitary valves&fittings, mandoor
|
|
|
2.2
|
Lauter Basket
|
1
|
|
2.4
|
Wort pump
|
1
|
|
|
- 0.37kw, 1m3/H flowmeter
|
|
|
3
|
Fermentation System
|
|
|
3.1
|
50L Fermentation Tank
|
3
|
|
|
- Material:SS304
|
|
|
|
- Finish:external brushed,internal polished less than 0.6um
|
|
|
|
- Effective/Total volume: 50/65L
|
|
|
|
- Designing/working pressure: 0.3/0.15MPa
|
|
|
|
- Cooling jacket
|
|
|
|
- Insulation 50mm PU
|
|
|
3.2
|
Pipeline&Valves
|
|
|
3.3
|
Food grade hose with TC
|
|
|
4
|
Refrigeration System
|
|
|
4.1
|
Chiller
|
1
|
|
|
-800w/h, 0.4hp
|
|
|
|
-power :0.35kw
|
|
|
4.2
|
Glycol water tank
|
|
|
4.3
|
Glycol water pump
|
|
|
5
|
Controlling system
|
1
|
|
|
- Controlling cabinet
|
|
|
|
- To control brewhouse, fermentation and cooling system temperature
|
|
|
|
- To control pumps
|
|
|
6
|
Movable platform
|
1
|
|
|
- Stainless steel
|
|
|
|
- With movable and brake wheels
|
|
|
|
- Platform
|
|
|
7
|
Accessories
|
|
|
|
'- clamp gasket/'- pump seal/'- Bufferfly valve gasket/'- Saccharometer /'- Raker
|
|
