New Products Factory Industrial use combined air handling unit capacities with DX coil

New Products Factory Industrial use combined air handling unit capacities with DX coil

FOB Reference Price: Get Latest Price

≥2 Sets

US $5999

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Beijing, China

Brand Name:: Holtop

Dimension(L*W*H):: customized

Weight (KG):: customizedKG

Product name:: air handling unit capacities

Cooling capacity:: 8.4-168 Kw

Function:: Air Conditioner Terminal Unit

Refrigerant:: R410a

Filter:: F7+F9+F13

Power:: 380V

Fan type:: Centrifugal Fan

Left or right type::: Y-right, Z-left

Application:: Heat recovery,adjust cold/heat/humidity

Quick Details

Type:: Air Handling Unit

Mounting:: Floor Standing

Airflow:: customized, 34000

Place of Origin:: Beijing, China

Brand Name:: Holtop

Dimension(L*W*H):: customized

Weight (KG):: customizedKG

Product name:: air handling unit capacities

Cooling capacity:: 8.4-168 Kw

Function:: Air Conditioner Terminal Unit

Refrigerant:: R410a

Filter:: F7+F9+F13

Power:: 380V

Fan type:: Centrifugal Fan

Left or right type::: Y-right, Z-left

Application:: Heat recovery,adjust cold/heat/humidity

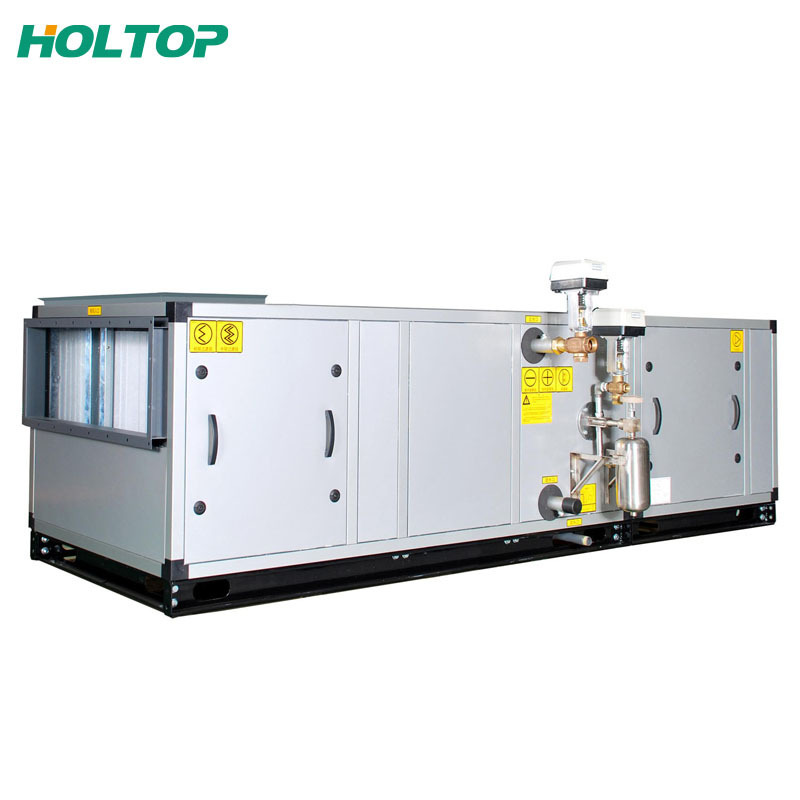

New Products air handling unit capacities indusrial use combined air handling unit directly from factory air handling unit with dx coil

Product name	Air handling unit
Material	Stainless steel
Function	Heat recovery,adjust cold/heat/humidity
Application	Home,office,factory,plaza,toilets and other house
Filter class	G4+F7+H10
Place of origin	Beijing,China

Selection Table of AHU

Working principle

1/Both supply fan and exhaust fan are built inside tobring in fresh air and exhaust out the stale indoor air as well, thus to keep indoor space in natural comfort.
2/Built-in heat exchanger (rotary heat exchanger or plate heat exchanger) transfers energy contained in the outgoing indoor air to the coming fresh air,thus fresh air is precooled or preheated.
3/Various functional sections such as filter section,cooling/heating section, humidifying section etc.can be combined together to meet different air treatment requirements.

Judging left or right type

Look at the direction of airflow supplied to indoor, it’s left type if water pipes are located on the left side of the unit; otherwise, it’s a right type. For standard AHU, service door, wiring port and water pipe locate on the same side.

Main features

1/ Up-down layer construction, concise, compact.
2/ Rotary heat exchanger(RHE) as a basic part. Humidifying section, coil section etc. selectable as per requirements.

Typical Combinations

Combination mode 1:
Wheel + Coarse filter (medium filter) + Cooling coil (heating coil)+ Humidification + Fan

Combination mode 2:
Plate heat exchanger + Coarse filter (medium filter) + Mixed air +Cooling coil (heating coil) + Fan

Rotary heat exchanger (heat recovery wheel) is mainly used in building ventilation or in the air supply/discharge system of air conditioning equipment. The wheel transfers the energy (cold or heat) contained in exhaust air to the fresh air supplied to indoor.It’s a piece of important equipment and a key technology in the field of construction energy saving.

Rotary heat exchanger section

1. Rotary heat exchanger is composed of heat rotor(wheel), frame, drive system, double purge sector and sealing parts etc..
2. Supply air(SA) passes through half of the wheel, exhaust air(EA) passes through reversely the rest half of the wheel, meanwhile the wheel is rotating driven be the drive system. Thus, the wheel can be self-cleaning.
3. Drain pan is equipped under the wheel, in case condensed water occurs from fresh air in summer or return air in winter when their temperature is decreasing. Meanwhile, make sure the drainpipe is expedite and waterseal is installed.

4. Ice jam might occur on the exhaust side when operating in very cold area, if so, rotary speed reduction or turn-on of bypass is required to ensure safe operation of the wheel.
5. On some occasions with strict cleanness requirement, to minimize the carryover from return air to supply air, exhaust fan shall be placed in the leaving section of the exhaust side to create passive pressure, and the pressure shall be lower than that of supply side, so that the double purge sector can perform more effectively.
6. For easy transportation or easy installation in limit space, the wheel can be cut into segments.

FAN SECTION

We offer different types of fans such as direct driven centrifugal fan, belt driven DIDW forward centrifugal fan, and belt driven DIDW backward centrifugal fan etc..

Air filter

In order to ensure heat exchanging efficiency and cleanness, combination of G3 coarse filter and F5 medium filter is selected as standard configuration in HJK AHU.
