Quick Details
-
Brand Name:
-
Gidape, Andetong, Gida
-
Voltage (V):
-
110
-
Product name:
-
110 Volt Thick Film Electric Hot Water Heater Heating Element
-
Technology:
-
Thick film water heating electric element
-
Heating element:
-
Thick film SS430 tube
-
Power:
-
2.2kw or customize
-
Work temperature:
-
180-300℃
-
Service Life:
-
>10,000 hours
-
Heat Transfer:
-
≥97%
-
Feature:
-
Fast heat conduction
-
MOQ:
-
1000pcs
Quick Details
-
Warranty:
-
None
-
Application:
-
Hotel, Commercial, Household
-
Place of Origin:
-
China
-
Brand Name:
-
Gidape, Andetong, Gida
-
Voltage (V):
-
110
-
Product name:
-
110 Volt Thick Film Electric Hot Water Heater Heating Element
-
Technology:
-
Thick film water heating electric element
-
Heating element:
-
Thick film SS430 tube
-
Power:
-
2.2kw or customize
-
Work temperature:
-
180-300℃
-
Service Life:
-
>10,000 hours
-
Heat Transfer:
-
≥97%
-
Feature:
-
Fast heat conduction
-
MOQ:
-
1000pcs

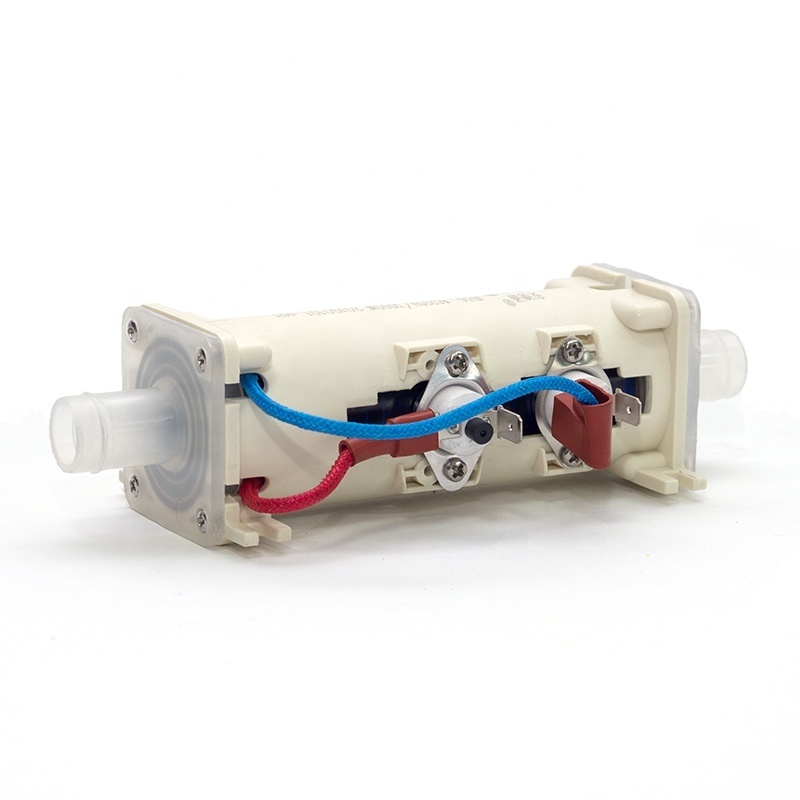

110 Volt Thick Film Electric Hot Water Heater Heating Element
to get 95℃ Boiling Water 480ml per minute
Descriptiom
Hot Sale 110 Volt Thick Film Electric Hot Water Heater Heating Element. It is a new type Instant Heating Electric Element.
As its high power density up to 40w/cm2, heating element temperature ramp up very fast, thermal should be taken away quickly. So that we design this tubular thick film water heating element, which allows water flowing inside tube.
The heating circuit is made on tube surface's insulation layers, and covered by another insulation layer.
Water and Electric are totally insulated.
Compared with immersion Water Heaters elements, Jieda Thick Film Water Heating Element is advanced in larger heating area (Tubular Structure), compact profile, higher power density(40W/cm²), faster temperature response (up to 150℃/S), longer life time (>10,000 hours) and better thermal transfer(≥97%).
It connects with wire leads by spot-weld to silver conductor on the surface.
Due to its high power density up to 40w/cm2, the thermal should be taked away quickly. So that we design this tubular thick film heating element, to let water flowing inside tube and take away the heat quickly.
It's advanced in power density(60W/cm²), thermal transfer (≥97%) and temperature ramp-up rate(150℃/S).
You can get boiling water in 3 seconds, in the rate 550ml per minutes (3kw).
Specification
| Dimension | 161mm*60mm | Heat Density | >40W/cm² |
| Ramp-Up Rate | 150℃/s | Thermal Efficiency | ≥97% |
| Heating Power | 2.2KW | Service Life | >10,000 hours |
| Rated Voltage | 220v | Certificate | CQC, RoHS |
| Dielectric Strength | 1,500V/5mA/60s | Power Deviation | -10% - +5% |
| Leakage Current | ≤0.25mA | Insulation Resistance | ≥200MΩ |
| Type |
PA66+ glass fibre, temperature resistance≥250℃
|
Application | to replace iron immersion electric water heating element |
| Shield Thermistor | PTC | Grounding Type | Spot-Weld |
| Water Inlet&Outlet | G1/2 | Heating Tube Dimention | Φ30mm*110mm |
