Quick Details
-
Model Number:
-
RS601C-1010011GW
-
Max. Current:
-
6A
-
Mechanical Life:
-
10000 Cycles
-
Color:
-
White/Black
-
certification:
-
TUV/CQC/KC/VDE/ENEC
-
Contact resistance:
-
≤20(MΩ)
-
Insulation resistance:
-
≥100(MΩ)
-
The use of temperature:
-
-40+85(℃)
-
Shell material:
-
PA66
-
Conductive material:
-
Phosphor bronze
-
Electrical life:
-
≥15000
-
Function:
-
ON-OFF
-
Application:
-
Electric Equipment
-
Certification:
-
TUV/CQC/KC/VDE/ENEC
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ONEGOL
-
Model Number:
-
RS601C-1010011GW
-
Max. Current:
-
6A
-
Mechanical Life:
-
10000 Cycles
-
Color:
-
White/Black
-
certification:
-
TUV/CQC/KC/VDE/ENEC
-
Contact resistance:
-
≤20(MΩ)
-
Insulation resistance:
-
≥100(MΩ)
-
The use of temperature:
-
-40+85(℃)
-
Shell material:
-
PA66
-
Conductive material:
-
Phosphor bronze
-
Electrical life:
-
≥15000
-
Function:
-
ON-OFF
-
Application:
-
Electric Equipment
-
Certification:
-
TUV/CQC/KC/VDE/ENEC
Specification

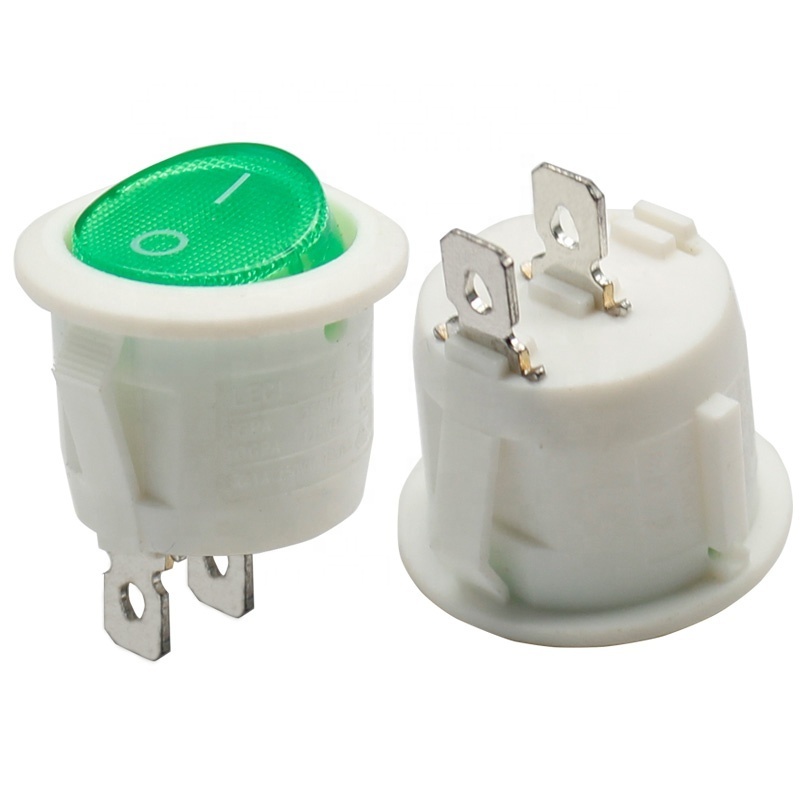

Diameter Small Round Boat Rocker Switches Black Mini Round Black White green lamp 3 Pin ON-OFF Rocker Switch
|
Size
|
ø 23mm*24.4mm
|
|
Rated voltage
|
6a/10a
|
|
Switching Method
|
ON-OFF
|
|
Pin
|
3 pin
|
|
Rating
|
CQC 6A 250V AC T105/55 6(8)A 250VAC
8A/128A 250VAC CUL 10GPA 250V AC 6GPA 125V AC T105/55 VDE ENEC 6(4)A 250V AC T85/55 KC 6(4)A 250V AC T85/55 |
|
Treminal strength
|
≥80N
|
|
Electrical life
|
≥10000cycles
|
|
Current resistance
|
≤50mΩ(initial)
|
|
Insulation resistance
|
≥100MΩ
|
