Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
OCEAN
-
Dimension(L*W*H):
-
1700*1200*600
-
Weight:
-
150 kg
-
Power:
-
4-11KW
-
Marketing Type:
-
New Product 2024
-
Name:
-
Plaster Spray Gun
-
Applicable materials:
-
Mortar Cement Water
-
Function:
-
Motar Plastering Machine
-
Type:
-
Mortar Putty Spray Plaster Machine
-
Usage:
-
Spray Wall Ceiling Machine
-
Appliaction:
-
Electric Mortar Spray Plaster Machine
-
Advantage:
-
Higher Efficiency
-
Fuction:
-
Wipe
-
Kw:
-
4-12KW
-
MOQ:
-
1 Set
Quick Details
-
Max. vertical conveying distance:
-
20M
-
Max. horizontal conveying distance:
-
40M
-
Hopper Capacity:
-
10L
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
OCEAN
-
Dimension(L*W*H):
-
1700*1200*600
-
Weight:
-
150 kg
-
Power:
-
4-11KW
-
Marketing Type:
-
New Product 2024
-
Name:
-
Plaster Spray Gun
-
Applicable materials:
-
Mortar Cement Water
-
Function:
-
Motar Plastering Machine
-
Type:
-
Mortar Putty Spray Plaster Machine
-
Usage:
-
Spray Wall Ceiling Machine
-
Appliaction:
-
Electric Mortar Spray Plaster Machine
-
Advantage:
-
Higher Efficiency
-
Fuction:
-
Wipe
-
Kw:
-
4-12KW
-
MOQ:
-
1 Set
Product Description
Introduction

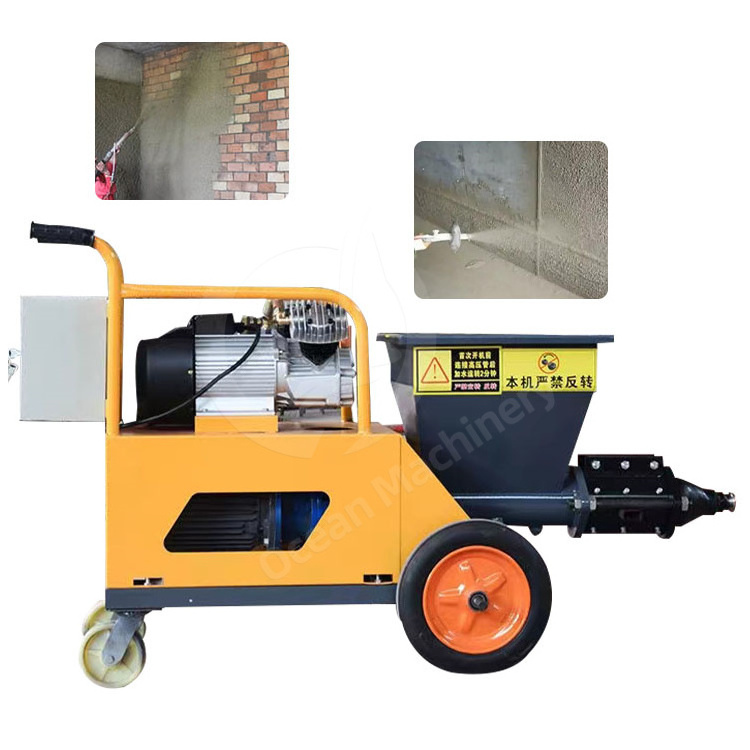

This machine is Compact and extremely versatile plastering machine and is suitable for pumping And spraying the wet ready mixed mortar which is pumpable, such as Cement mortars, Lime plasters, Gypsum plasters, Masonry mortars, Insulating plasters, Self-leveling floor screeds, etc.
Application
The spraying machine is suitable for spraying water soluble materials such as cement mortar, putty powder, coating, latex paint, real stone paint, insulation mortar, waterproof material, fireproof material, insulation material, sound-absorbing material, etc
Features
1.
Adopting all copper clad national standard motors, with stable performance.
2.
The connection between the spray gun and the feeding pipe can rotate for easy operation.
3.
High construction efficiency and good quality. And its small size makes it easy to carry on site,
4.
The sealant sleeve is made of black rubber, which is wear-resistant and corrosion-resistant.
5.
Convenient to use, fast, material saving, labor saving, and more cost-effective
|
Model
|
311
|
511
|
|
Conveying Pipe Diameter
|
32mm
|
38mm
|
|
Air Pump Power
|
2.2kw
|
2.2kw
|
|
Motor Power
|
4kw
|
7.5kw
|
|
Voltage
|
380V Three Phase Electric/Diesel Engine
|
380V Three Phase Electric/Diesel Engine
|
|
Spraying Area
|
150-170m²/h
|
180-200m²/h
|
|
Working Pressure
|
5-8mpa
|
5-8mpa
|
|
Conveying Flow
|
3m³/h
|
3m³/h
|
|
Water:Cement:Sand
|
1:1:3
|
1:1:3
|
|
The Maximum Passing Particle
|
4mm
|
4mm
|
|
Maximum Vertical Distance
|
10-15m
|
15-20m
|
|
Maximum Horizontal Distance
|
25-35m
|
30-40m
|
|
Overall Dimensions
|
1600*450*900mm
|
1700*600*1100mm
|
|
Total Weight
|
150kg
|
300kg
|
|
Scope of Application
|
motar,putty,paint,etc
|
motar ,putty,paint,etc
|
Product Details
Product Real shot
Related Products
Packaging & Shipping
Install waterproof membrane to reduce dust and water pollution
Standard wooden boxes are used as outer packaging to reduce bumps in international transportation
