Quick Details
-
Output:
-
IP Output over UDP/RTP (Unicast/Multicast)
-
Application:
-
IPTV OTT DVB System
-
Type:
-
Encoder
-
Encoding:
-
H264/HVEC video encoding format
-
Management:
-
Web
-
Brand name:
-
Hooray Vision
Quick Details
-
Place of Origin:
-
China
-
Size:
-
L
-
Input:
-
4 8 12 HD Input
-
Output:
-
IP Output over UDP/RTP (Unicast/Multicast)
-
Application:
-
IPTV OTT DVB System
-
Type:
-
Encoder
-
Encoding:
-
H264/HVEC video encoding format
-
Management:
-
Web
-
Brand name:
-
Hooray Vision

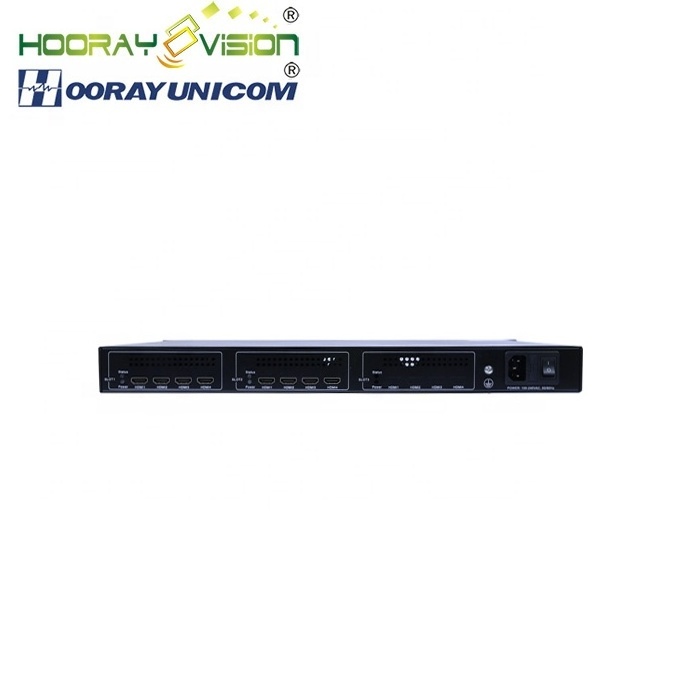

8 Channels HD IPTV H265 H264 Encoder
INTRODUCTION
It is a 1RU multi-channel professional HD encoder with Logo/QR Code/OSD insertion targeting at Digital Cable/Terrestrial/Satellite TV system and IPTV system. The device supports 4, 8, or 12 HDMI inputs, compressing to H.264/H.265 high definition in high compression ratio and Mpeg-1 Layer II, AAC (optional), AC-3 (optional) encoding, which can dramatically save the network bandwidth. Featured by B frame and de-interlacing, it provides high quality video audio and output in either IP or ASI format.
With its powerful features and compact design, it is perfect for most of the operators to achieve content distribution and local content insertion and thus can properly meet different application requirements such as CATV, DTH, HITS and IPTV system.
FEATURES
- 4, 8, or 12 HDMI encoding up to 1080p60 input/output
- Flexible selection of H.264/H.265 encoding format with high compression ratio
- MPEG-1 Layer II, AAC (optional), AC3 (optional) audio encoding
- Supports Logo/QR Code/OSD insertion with custom position/font/color adjustment
- Customized OSD insertion (language supported: Chinese, English, Thai and more*)
- Unparalleled video quality for any signal input including interlaced signal input
- Embedded multiplexing that enables different MPTS to different IP output
- Powerful PSI/SI table processing: PAT, PMT, NIT, SDT, and BAT table generation
- Supports TSIP output (MPTS/SPTS, UDP/RTP) and one ASI output(MPTS)
- Configuration takes effect immediately without reboot
- Web-based network management and software upgrade with user-friendly GUI
SPECIFICATIONS
|
Input |
4,8,12 HD input |
|
|
Output |
1 x RJ45 IP output (MPTS/SPTS, UDP/RTP) 1 x ASI output(MPTS/SPTS) up to 180M,BNC |
|
|
Video Encoding |
Encoding Format |
H.264/AVC HD: MP/HP L4.0/4.1/4.2 H.265/HEVC HD: MP(High Tier) L4.0/4.1 |
|
Interface |
4,8,12 x HDMI female connector(HD1.4) |
|
|
Resolution |
HEVC Encoding: Input: 1080i50/59.94/60, 1080P50/59.94/60, 720P50/59.94/60 Output: 1080P50/59.94/60, 720P50/59.94/60
H.264 Encoding: Input: 1080i50/59.94/60,720P50/59.94/60 Output: 1080P29.97/30, 720P50/59.94/60
*Output supports progressive only and resolution supports up to 1080p60 in HEVC and 1080P30 in H.264. |
|
|
TS Rate |
3000~20000 Kbps |
|
|
Rate Control |
CBR |
|
|
Audio Encoding |
Encoding Format |
MPEG-1 Layer II, AAC (optional), AC3(optional) |
|
Sample Rate |
48KHz |
|
|
Bitrate |
32~384Kbps |
|
|
Multiplexing |
Table Supported |
PSI/SI generation including PAT, PMT, NIT, SDT and BAT |
|
PID Processing |
PMT PID, Video PID, Audio PID, PCR PID editable |
|
|
Service Name Edit |
Yes |
|
|
Service Operator Edit |
Yes |
|
|
TS stream output |
UDP/RTP Multicast/Unicast Output, SPTS/MPTS, ASI Output |
|
|
System |
1 x RJ45 management port |
|
|
Web-based network management & software upgrade |
||
|
English/Chinese GUI |
||
|
Physical& Environment |
Chassis Dimension |
444mm x 44mm x 336mm(W x H x D), 1RU |
|
Weight |
3~6kg |
|
|
Temperature Range |
0~50℃ (operation); -10~70℃ (storage) |
|
|
Input Voltage |
100-240 VAC, 50/60Hz |
|
