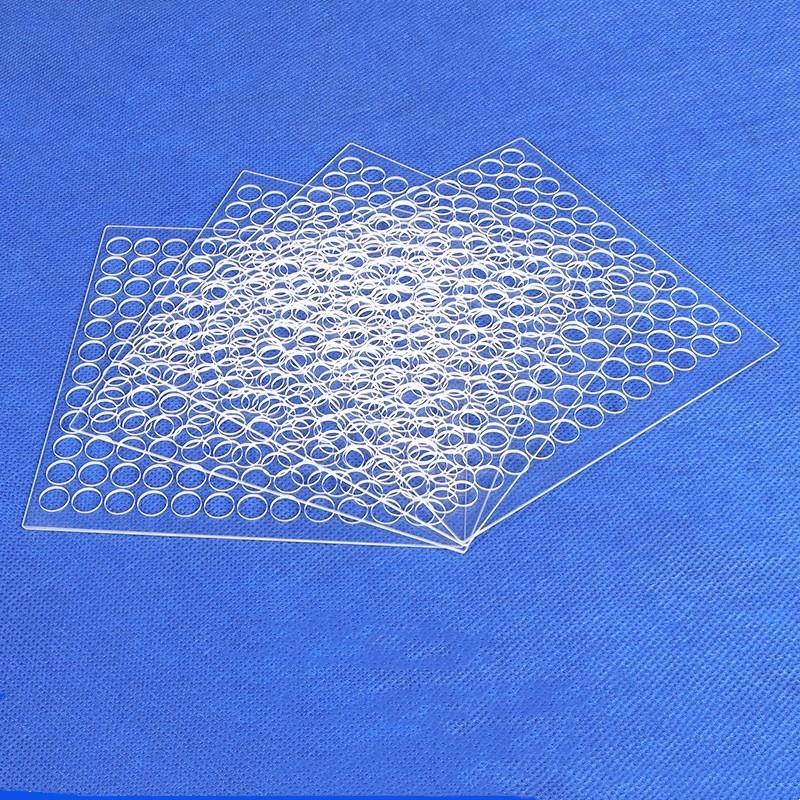

Laser Drilling Cutting Transparent Quartz Glass Plate Clear Glass Quartz Sheet With Hole

Laser Drilling Cutting Transparent Quartz Glass Plate Clear Glass Quartz Sheet With Hole

FOB Reference Price: Get Latest Price

≥10 Pieces

US $4

≥50 Pieces

US $3.8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Quayer

Model Number:: OEM

Product name:: Laser Drilling Cutting Quartz Glass Plate Clear Glass Quartz Sheet

Color:: Transparent

Size:: Customized

Working Temperature:: 1200 Degree

Surface:: Polished Treatment

Usage:: Optical Instrument ,Industry

Sample:: Available

Keyword 1:: Laser Cutting Transparent Quartz Glass Plate

Keyword 2:: Laser Drilling Quartz Glass Plate

Keyword 3:: Quartz Glass Sheet With Hole

Quick Details

Type:: Opaque Quartz Plate

Application:: Optics

Thickness:: 0.5mm

Place of Origin:: Jiangsu, China

Brand Name:: Quayer

Model Number:: OEM

Product name:: Laser Drilling Cutting Quartz Glass Plate Clear Glass Quartz Sheet

Color:: Transparent

Size:: Customized

Working Temperature:: 1200 Degree

Surface:: Polished Treatment

Usage:: Optical Instrument ,Industry

Sample:: Available

Keyword 1:: Laser Cutting Transparent Quartz Glass Plate

Keyword 2:: Laser Drilling Quartz Glass Plate

Keyword 3:: Quartz Glass Sheet With Hole

Product Description

Quartz glass silica content 99.99%,high temperature resistance 1200 degresss Celsius temperature change.It can be used at 1100 degree Celsius for a long time,and the maximum temperature can reach 1450 degree Celsius for a short time.

They are widely used in optical instrument, sight glass, observation window for furnace, semiconductor, photoelectron, military industry, metallurgy, lab glassware and many other fields.

Product Name	Laser Drilling Cutting Transparent Quartz Glass Plate Clear Glass Quartz Sheet With Hole
Size	Customized
Working Temperature	1200 Degree
Application	Optical Instrument ,Industry
Sample	Available
Payment	TT, Western union, Credit Card
Delivery	Air Express (DHL/UPS/TNT/ FedEx), Sea transportation

Transparent quartz glass sheet, opaque quartz glass plate, quartz observation window, optical quartz glass, optical coating,
infrared quartz glass, ultraviolet quartz glass, far ultraviolet (JGS1), near ultraviolet (jgs2) and infrared (jgs3) quartz glass
plates for optical long-term processing, electronics, chemical industry, military industry and other industries.

Advantage

1)High purity :SiO2> 99.99%.

2)Operating Temperature: 1250℃; Soften Temperature: 1730℃ .

3)Excellent visual and chemical performance:acid-resistance,alkali resistance,Good thermal stability

4)Health care and environmental protection.

5)No air bubble and no air line.

6)Excellent electrical insulator.

Specifiaction

Purity	>99.99%
Density	2.2(g/cm3)
Degree of hardness Moh' scale	6.6
Melting point	1732℃
Working temperature	1100℃
Max temperature can reach in a short time	1450℃
Acid tolerance	30 times than Ceramics , 150 times than Stainless steel
Visible light transmittance	above 93%
UV spectral region transmittance	80%
Resistance value	10000 times than ordinary glass
Annealing point	1215℃
Softening point	1730℃
