Quick Details
-
Production Capacity:
-
5000L
-
Power:
-
88
-
Place of Origin:
-
China
-
Brand Name:
-
Sinoroader
-
Dimension(L*W*H):
-
8750*2500*3250mm
-
Working speed::
-
2.5~10.5km/h
-
Spray width::
-
6500mm
-
Spray Medium::
-
liquid asphalt, hot asphalt, etc
-
Type:
-
Automatic
-
Hopper Capacity:
-
5000L
-
Product name:
-
asphalt distributor
Quick Details
-
Weight:
-
6000 kg
-
Engine Brand:
-
CAMC
-
Marketing Type:
-
New Product 2023
-
Production Capacity:
-
5000L
-
Power:
-
88
-
Place of Origin:
-
China
-
Brand Name:
-
Sinoroader
-
Dimension(L*W*H):
-
8750*2500*3250mm
-
Working speed::
-
2.5~10.5km/h
-
Spray width::
-
6500mm
-
Spray Medium::
-
liquid asphalt, hot asphalt, etc
-
Type:
-
Automatic
-
Hopper Capacity:
-
5000L
-
Product name:
-
asphalt distributor
|

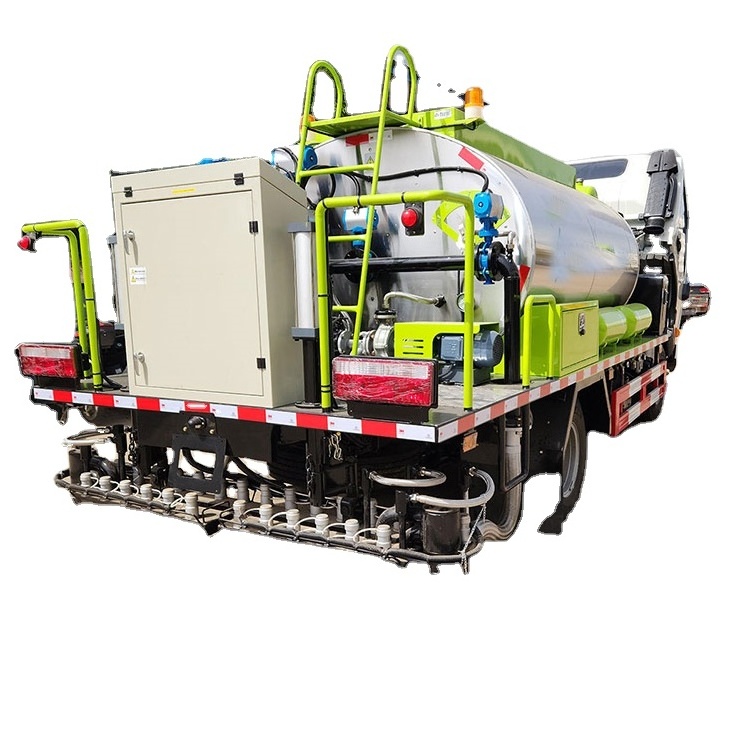

Product Name
|
Asphalt Distributor
|
Asphalt Distributor
|
Asphalt Distributor
|
Asphalt Distributor
|
|||
|
Product Model
|
SRAD-13
|
SRAD-8
|
SRAD-6
|
SRAD-4
|
|||
|
Auxiliary Engine Power
|
/
|
26kW/35hp
|
26kW/35hp
|
26kW/35hp
|
|||
|
Tank Volume
|
13000L
|
8000L
|
6000L
|
4000L
|
|||
|
Spray Width
|
6000mm
|
6000mm
|
6000mm
|
4500mm
|
|||
|
Spray Volume
|
0.2-3kg/m2
|
0.2-3kg/m2
|
0.2-3kg/m2
|
0.2-3kg/m2
|
|||
|
Spray Media
|
Hot asphalt, Emulsified asphalt,Modified asphalt
|
|
|
|
|||
|
Asphalt Heat-up Speed
|
≥12°/h
|
≥12°/h
|
≥12°/h
|
≥12°/h
|
|||
|
Total Weight
|
25000kg
|
16000kg
|
12490kg
|
9990kg
|
|||
|
Dimensions
|
10740x2496x3820mm
|
8970x2496x3350mm
|
8970x2496x3135mm
|
7150×2100×2500mm
|
|||
Spray width: 200—6000mm
Spraying amount: 0.2—3.0 kg/m2
Tank volume: 8000L
Asphalt heating method: imported diesel burner
Spraying medium: hot (modified) asphalt, diluted asphalt, emulsified asphalt, etc.
Dispensing accuracy: ±1.5%
Total mass: 16000 (㎏)
Product Feature
Intelligent control: The spray operation control can be completed in the cab, the touch screen sets the spray amount, and the rear operation platform is provided. The amount of sprinkling can be controlled manually or automatically.
Quantitative spraying: The spraying process is controlled by the microcomputer from time to time, the pump speed is synchronized with the vehicle speed, and the computer speed compensation is used, and the external power output is separately used. Once the amount of sprinkling is set, it will not be affected by the change of the speed in the recommended speed range, and the amount of sprinkling is high.
Width control: sprinkle width can be freely adjusted, unique nozzle design, can be manually controlled separately, the maximum spray width of up to 4 meters.
Uniform spreading: The unique nozzle design can be used for three overlapping spraying, and the spraying amount is very uniform within the range of 0.4-2KG/m2.
Convenient maintenance: After the spraying, the asphalt pump and nozzle do not need to be cleaned with diesel. The high-pressure air is used to press the asphalt in the pipeline and the spray pipe back to the tank, and then the oil passage and nozzle are purged.
Free configuration: The equipment is self-contained and the selected chassis must have low speed stability (3-8 km/h). Party A only needs to provide the vehicle model, the inner diameter of the bucket, and the height from the ground. Can also be customized according to the customer's existing vehicles, hoisting structure, can achieve a multi-purpose vehicle, saving investment for customers.
Spray media: can spray emulsified asphalt, diluted asphalt, hot asphalt and so on.
Founded in 1997, Sinoroader has grown to become a leading provider of technological developments and has been a pioneer in its sector with its innovation departments and became the first China manufacturer of “Mobile Concrete Batching Plants”, “Concrete Pump”, “Concrete Mixer Pump”, “Compact Type Concrete Batching Plants” ," Concrete Trailer Pump" and “Self Loading Concrete Mixer”,"Wheel Loader","Concrete Mixer Truck","Concrete Pavers machine . Sinoroader provides an unparalleled, single-source solution for all of their clients’ aggregate-based facilities. owadays,asphalt mixing plant, concrete mixing plant and road maintenance equipment produced by Sinoroader have been widely used in more than 120 countries and regions.
