Quick Details
-
Material:
-
Zinc Alloy
-
Function:
-
Keyed Entry, Privacy, Passage, Storeroom, Dummy...
-
Finish:
-
PB(US3), SS(US32D),AB(US5),SC(US26D),SN(US15),PVD,ORB(10B)
-
Rossette:
-
65mm
-
Application:
-
Wooden Door
-
Door thickness:
-
35-45mm as standard
-
Backset:
-
60/70mm adjustable latch
-
Feature:
-
Easy Installation
-
Warranty:
-
200000 life cycles
-
Packing:
-
Color Box or Blister Pack
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HOWKEE, GHL
-
Model Number:
-
8032-BK AB
-
Material:
-
Zinc Alloy
-
Function:
-
Keyed Entry, Privacy, Passage, Storeroom, Dummy...
-
Finish:
-
PB(US3), SS(US32D),AB(US5),SC(US26D),SN(US15),PVD,ORB(10B)
-
Rossette:
-
65mm
-
Application:
-
Wooden Door
-
Door thickness:
-
35-45mm as standard
-
Backset:
-
60/70mm adjustable latch
-
Feature:
-
Easy Installation
-
Warranty:
-
200000 life cycles
-
Packing:
-
Color Box or Blister Pack

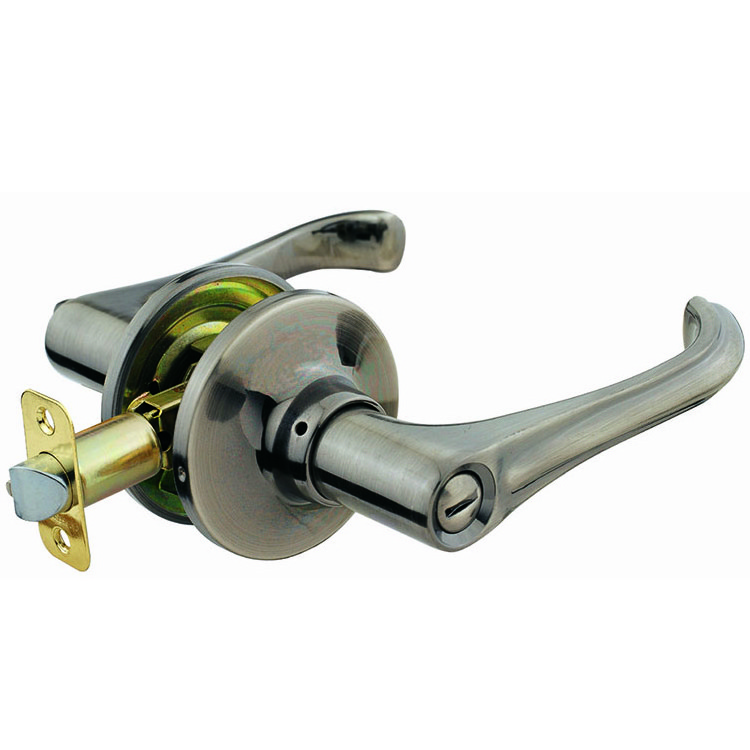

Product Description
|
SPECIFICATIONS
|
|
|
|
|||
|
Door Thickness:
|
1 3/8"-1 3/4" (35mm-45mm)
|
Strike:
|
D strike/T strike, steel as standard;
|
|||
|
|
|
|
ASA commercial strike as optional.
|
|||
|
Functions:
|
Keyed Entry,Privacy,Passage,Dummy,
|
|
|
|||
|
|
Classroom,Storeroom.
|
Lever:
|
Zinc Alloy
|
|||
|
|
|
|
|
|||
|
Cylinder:
|
5-pin brass cylinder plug with 2 nickel
|
Rose:
|
Brass, Stainless Steel SS304 or SS201
|
|||
|
|
plated brass keys per keyed lock.
|
|
|
|||
|
|
|
Backset:
|
Adjustable 2 3/8" (60mm) or 2 3/4"
|
|||
|
Keyway:
|
SC1, KW1, YL,SE, WR... optional.
|
|
(70mm) as standard.
|
|||
|
|
|
|
|
|||
|
Keying:
|
Key Different (KD) as standard, keyed
|
Finishes:
|
US3, US4, US5,US15, US10B,
|
|||
|
|
alike (KA) available. Can be master
|
|
US26D, US32D…optional.
|
|||
|
|
keyed or grand master keyed.
|
|
|
|||
|
|
Construction key system available.
|
Packaging:
|
Color box, 30pcs/CTN, as standard;
|
|||
|
|
|
|
Visual pack, 6pcs/inner carton,
|
|||
|
Latch bolt:
|
1/2" (12.5mm) throw.
|
|
24pcs/outer carton as optional.
|
|||
|
1. Cylinder Plug
|
2. Key
|
3. Flat Pins
|
4. Pin Springs
|
5. Bottom Pins
|
|
6. Pin Clips
|
7. Cylinder Plug Catch
|
8.Key Ring
|
9,23. Outside Rosette
|
10.Locking Tail
|
|
11-14. Rotating Frame
|
15. Restoration Spring
|
16. Square Spindle
|
17. Screw Posts
|
18,19,27.Switch Turn
|
|
20. Screws
|
21. Cylinder Housing
|
22. Cylinder Plug Nut
|
24,28,29,30,32. Inside Rosette
|
31. Plastic Insert
|
|
33,34. Levers
|
|
|
|
|
