Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm, Other
-
Processing:
-
Block Production Line
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CANMAX
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
2060*1730*2580mm
-
Warranty:
-
1 Year
-
Marketing Type:
-
Hot Product 2022
-
Warranty of core components:
-
3 Year
-
Weight (KG):
-
2400 kg
-
Name:
-
QT4-26 block making machine
-
Model:
-
QT series
-
PLC:
-
SIEMENS
-
Motor:
-
SIEMENS
-
Color:
-
Optional
-
Foaming force:
-
50KN
-
Molding cycle:
-
26s
-
Weight:
-
2.4 t
-
Lifespan:
-
10 years
-
Pressure:
-
15mpa
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other, Autoclaved aerated concrete block (AAC), Hollow/Solid/Paver/Curbstone
-
Brick Raw Material:
-
CONCRETE
-
Production Capacity (Pieces/8 hours):
-
4000-60000 Pieces/day
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm, Other
-
Processing:
-
Block Production Line
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CANMAX
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
2060*1730*2580mm
-
Warranty:
-
1 Year
-
Marketing Type:
-
Hot Product 2022
-
Warranty of core components:
-
3 Year
-
Weight (KG):
-
2400 kg
-
Name:
-
QT4-26 block making machine
-
Model:
-
QT series
-
PLC:
-
SIEMENS
-
Motor:
-
SIEMENS
-
Color:
-
Optional
-
Foaming force:
-
50KN
-
Molding cycle:
-
26s
-
Weight:
-
2.4 t
-
Lifespan:
-
10 years
-
Pressure:
-
15mpa

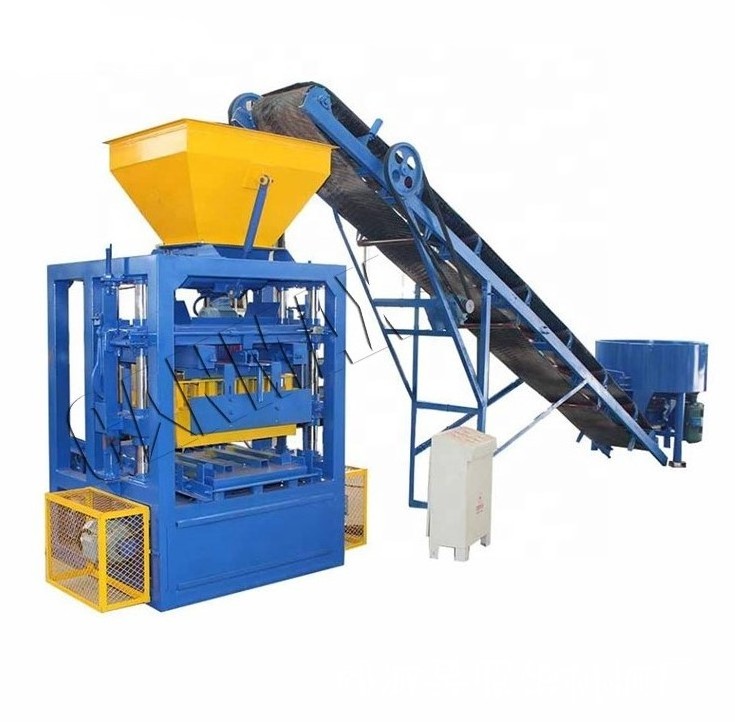

QT4
-26 block Machine is one kind of perfecting model for a starting or an upgrading project. With
economical prie, compact and exquisite structure, simple and convenient operation and maintenance,
small investment and quick results. It is suitable for small and medium-sized customers to invest in
a
simple production line.
Main features of the product:
*Easy operation and labor saving;
*Low investment and high benefit;
*Manual mobile operation;
*A variety of brick mould type;
*Strong vibration force generated by national certified motors and patend design V-box;
*Simple horizontal secondary feeding system for lighter loading volume;
*360°rotating mixing bars, more suitable for solid bricks and pavers;
| MODEL | QT4-26 |
| POWER (KW) | 14.25KW |
| DIMENSION (MM) | 2060*1730*2580mm |
| WEIGHT | 2400KG |
| PALLET SIZE (MM) | 880*580*30mm |
| CYCLE TIME (s) | 26S |
| CAPACITY | 8 HOURS SHIFT |
| VIBRATION FORCE (KN) | 50KN |
| HYDRAULIC PRESSURE (mpa) | 16 |
| OPERATION METHOD | AUTOMATIC |
| BLOCK DESIGNS | BLOCK SIZE (mm) | PCS. / PALLETS | PCS / HOUR |
|
400*200*200 | 4 PCS | 360-576 PCS |
|
240*115*53 | 26 PCS | 2,340-3,744 PCS |
| 200*100*60 | 8 PCS | 720-1,152 PCS | |
| 225*112*60 | 9 PCS | 810-1,296PCS |
| QT SERIES BLOCK MACHINES | ||||||||
| For bigger or smaller plants please refer to the models below: | ||||||||
| Model | Power | Size(mm) | Weight | Capacity/day (400*200*200) |
Capacity/day (230*115*75) |
Pallets Suggested | Area Suggested | Staff Suggested |
| QT4-35A | 4.8KW | 1120*1400*1700 | 1T | 3,300 | 16,000 | 300 | 300 | 2 |
| QT4-35B | 4.8KW | 1120*1400*2000 | 1T | 3,500 | 17,000 | 300 | 300 | 2 |
| QT4-40A | 9.5KW | 1400*1250*1900 | 1.2T | 3,500 | 17,000 | 300 | 500 | 2 |
| QT4-40B | 11KW | 1400*1250*2000 | 1.25T | 3,700 | 18,000 | 300 | 500 | 2 |
| QT4-26 | 13.5KW | 2060*1530*2400 | 2.4T | 4,400 | 19,000 | 500 | 600 | 2 |
| QT4-25BH | 11.5KW | 2580*1550*2000 | 2.5T | 4,800 | 23,000 | 500 | 800 | 2~3 |
| QT4-25PLC | 9KW | 2650*1500*1800 | 2.5T | 5,000 | 24,000 | 500 | 800 | 2~3 |
| QT4-25PLC-A | 14KW | 1200*1800*1800 | 2.8T | 5,200 | 25,000 | 500 | 800 | 2~3 |
| QT4-22 | 19.5KW | 2950*1580*1800 | 3T | 5,250 | 26,000 | 500 | 800 | 2~3 |
| QT4-18 | 16KW | 2900*1580*2580 | 3.2T | 6,400 | 30,000 | 850 | 1,000 | 3~4 |
| QT3-15 | 19KW | 2800*1450*2300 | 3.2T | 5,760 | 31,000 | 1,000 | 1,000 | 4~5 |
| QT4-15 | 28.5KW | 3000*1600*2300 | 4.5T | 7,680 | 38,500 | 1,000 | 1,500 | 4~5 |
| QT6-15 | 32KW | 4350*1680*2450 | 6.5T | 11,520 | 57,500 | 1,000 | 2,000 | 4~5 |
| QT8-15 | 32KW | 4400*1800*2680 | 8.8T | 15,360 | 77,000 | 1,000 | 2,500 | 4~5 |
| QT10-15 | 40KW | 5400*2500*2680 | 11T | 19,200 | 96,000 | 1,000 | 3,000 | 4~5 |
| QT12-15 | 40KW | 5400*2500*2680 | 11T | 23,000 | 115,500 | 1,000 | 3,000 | 4~5 |
