Quick Details
-
Model Number:
-
GL41H-16Q
-
Type:
-
Strainer, Normal close
-
Brand Name:
-
LIANGJING
-
Product name:
-

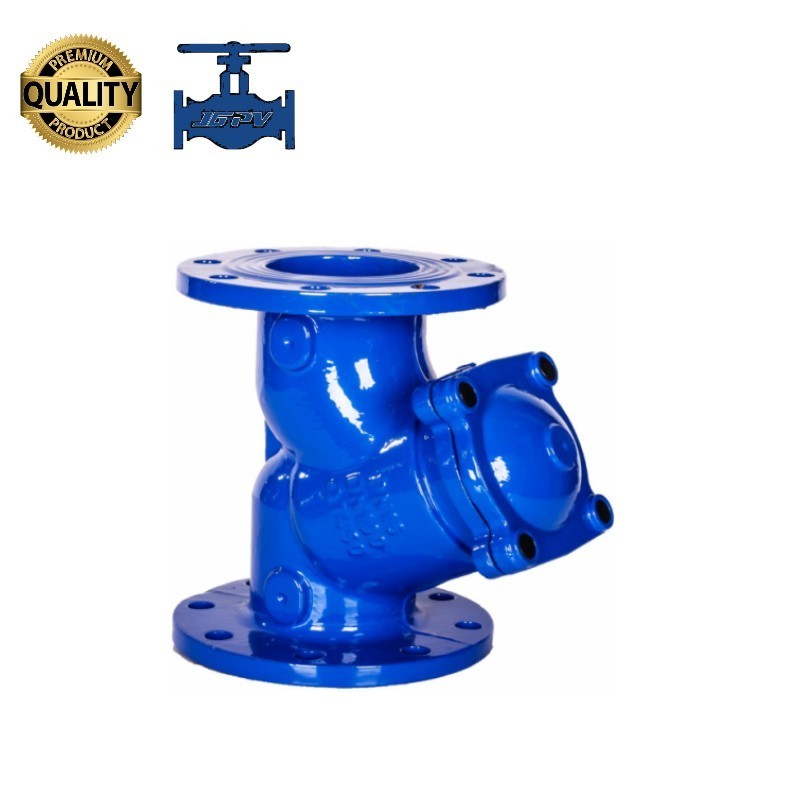

Flange End Ductile Iron Y Type Filter
-
Shape:
-
Y strainer
-
Body material:
-
Ductile Iron
-
Flow type:
-
2-way
-
Color:
-
Blue & per customer's request
-
Connection:
-
Flange ends
-
Certificate:
-
ISO9001:2008, ISO14001
-
Standard:
-
ASTM
-
Quality warranty:
-
1 year after receiving products
Quick Details
-
Port Size:
-
DN50-DN300MM
-
Warranty:
-
18 months
-
Place of Origin:
-
Shaanxi, China
-
Model Number:
-
GL41H-16Q
-
Type:
-
Strainer, Normal close
-
Brand Name:
-
LIANGJING
-
Product name:
-
Flange End Ductile Iron Y Type Filter
-
Shape:
-
Y strainer
-
Body material:
-
Ductile Iron
-
Flow type:
-
2-way
-
Color:
-
Blue & per customer's request
-
Connection:
-
Flange ends
-
Certificate:
-
ISO9001:2008, ISO14001
-
Standard:
-
ASTM
-
Quality warranty:
-
1 year after receiving products
Ductile Factory Cast Iron Y type strainer water High Quality Y Filter
Brief introduction:
Flange type Y filter has the advantages of advanced structure, small resistance, convenient pollution discharge characteristics.
A Y-strainer can be installed in either a horizontal or vertical position (Downward flow) with the screen element pointing downward. This allows the strainer screen to collect material in the strainer at the lowest point of the screen.
Technical data
|
PN(MPa) Nominal pressure |
1.6 |
2.5 |
|
°C Suitable temperature |
≤200 |
|
|
Suitable medium |
Water, oil, gas, etc. |
|
|
Flange standard |
GB/T9113.1 |
|
|
Standard |
GB/T13927 |
|
Material of main parts
|
Part name |
Meterial |
|
Body, bonnet |
Cast iron, ductile iron, cast steel |
|
O-ring |
NBR |
|
Fixed bolt |
Steel or galvanized bolts |
|
Filter |
Stainless steel |
Specification
Flange drill suitable for BS EN1092-2 PN16, PN25 flange drill
Suitable temperature:-10~250°C.
Epoxy fashion coating.
Pressure and temperature
|
working pressure |
PN16/PN25 |
|
testing pressure |
Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. |
|
working temperature |
-10~250°C. |
|
suitable media |
Water, Oil and gas. |
Main material list
|
part |
material |
|
body |
carbon steel |
|
screen |
stainless steel |
|
Bonnet |
carbon steel |
|
nut |
Stainless steel |
