Quick Details
-
Brand Name:
-
ACM
-
Model Number:
-
D5-X Wireless door lock
-
Type:
-
Fingerprint + EM card + PIN code
-
D5-X:
-
Fingerprint Wireless door lock
-
User Capacity:
-
1000 (including 100 fingerprint users + 900 PIN / Card users)
-
Card Type:
-
125KHz EM Card
-
Communication Frequency:
-
433MHz
-
Communication Distance:
-
20m Maximum
-
Operating Humidity:
-
0%~86%RH
-
Wireless Lock:
-
Zinc-Alloy
-
Wireless Fingerprint Keypad:
-
Zinc-Alloy (IP65)
-
Remote Transmitter:
-
ABS
-
Idle Current:
-
All items < 10uA
Quick Details
-
Special Features:
-
waterproof fingerprint keypad
-
Customized support:
-
Online technical support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACM
-
Model Number:
-
D5-X Wireless door lock
-
Type:
-
Fingerprint + EM card + PIN code
-
D5-X:
-
Fingerprint Wireless door lock
-
User Capacity:
-
1000 (including 100 fingerprint users + 900 PIN / Card users)
-
Card Type:
-
125KHz EM Card
-
Communication Frequency:
-
433MHz
-
Communication Distance:
-
20m Maximum
-
Operating Humidity:
-
0%~86%RH
-
Wireless Lock:
-
Zinc-Alloy
-
Wireless Fingerprint Keypad:
-
Zinc-Alloy (IP65)
-
Remote Transmitter:
-
ABS
-
Idle Current:
-
All items < 10uA
Hot Selling Products
ACM Fingerprint Access Control Kit Wireless door lock 433MHz Remote Control Invisible Lock Security Lock with Password Keypad
IP65 Wireless Fingerprint Lock Kit
> Metal design & Waterproof Fingerprint Keypad, can install outside
> 433MHz Rolling Code technology
> Communication distance: 20m Max
> Open/Close by Fingerprint Keypad, transmitter, or touch the lock
> Open times: 12000 times
> 1000 users (including 100 fingerprint users + 900 PIN / Card users)
> 4~6 digits PIN, 125KHz EM card

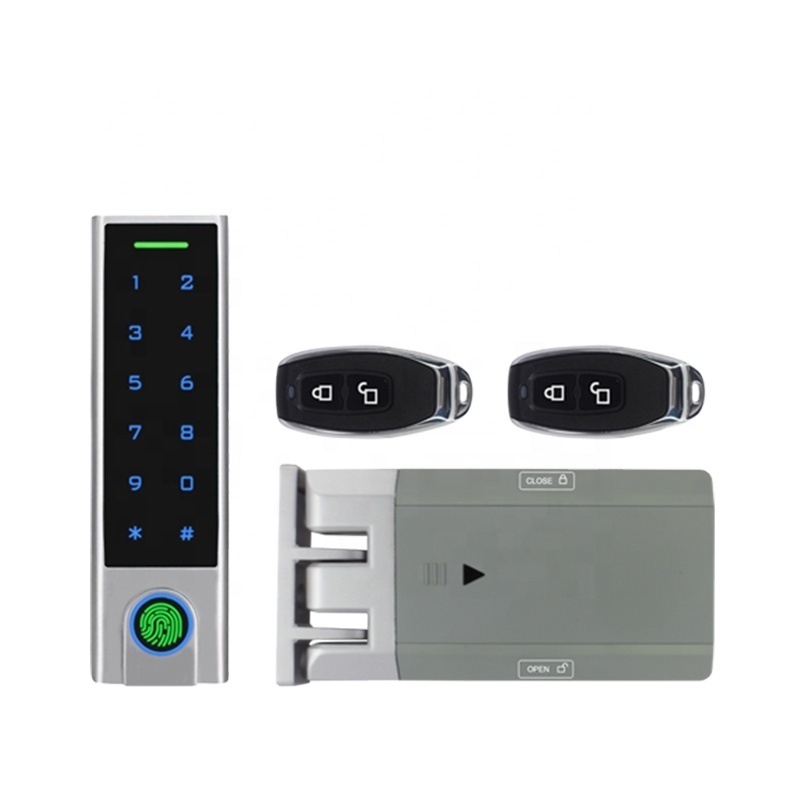

The D5-X is a Wireless Fingerprint DIY Lock Kit for home use.
It includes Wireless Fingerprint Keypad (metal, waterproof) + Wireless Lock + 2pcs
Remote Transmitters . 433MHz Rolling Code of encryption algorithm and the split design guarantee higher-secure.
|
Specification |
|
|
User Capacity |
1000 (including 100 fingerprint users + 900 PIN / Card users) |
|
PIN Length |
4-6 Digits |
|
Card Type |
125KHz EM Card |
|
Operating Voltage |
|
|
Wireless Fingerprint Keypad |
3 units of AAA batteries |
|
Wireless Lock |
2 units of AA batteries |
|
Remote Transmitter |
1 unit of 2032 Lithium battery |
|
Idle Current |
All items < 10uA |
|
Working Current |
|
|
Wireless Fingerprint Keypad |
> 35mA |
|
Wireless Lock |
< 60mA |
|
Remote Transmitter |
< 3mA |
|
Communication Frequency |
433MHz |
|
Communication Distance |
20m Maximum |
|
Operating Temperature |
|
|
Wireless Fingerprint Keypad |
-25°C~+60°C (-13°F~+140°F) |
|
Wireless Lock |
-20°C~+60°C (-4°F~+140°F) |
|
Operating Humidity |
0%~86%RH |
|
Physical |
|
|
Wireless Lock |
Zinc-Alloy |
|
Wireless Fingerprint Keypad |
Zinc-Alloy (IP65) |
|
Remote Transmitter |
ABS |
|
Dimensions |
|
|
Wireless Fingerprint Keypad |
L148 x W43.5 x D22(mm) |
|
Wireless Lock |
L150 x W83 x D38(mm) |
|
Remote Transmitter |
L62 x W30 x D11.5(mm) |
|
Unit Weight |
|
|
Wireless Fingerprint Keypad |
300g |
|
Wireless Lock |
800g |
|
Remote Transmitter |
25g/pc |
