Quick Details
-
Type:
-
fire cabinets,Firefighting Equipment
-
Material:
-
stainless steel,cold roll sheet, metal
-
Size:
-
customizable
-
Style:
-
Office&home furniture
-
Color:
-
Red ( customized)
-
Advantages:
-
security
-
Finish:
-
Powder Coated Flame Red
-
Usage:
-
suit any standard fire extinguisher
-
Drawer Type::
-
Letter
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Minshan
-
Model Number:
-
Fire hose cabinet unit, FC001
-
Type:
-
fire cabinets,Firefighting Equipment
-
Material:
-
stainless steel,cold roll sheet, metal
-
Size:
-
customizable
-
Style:
-
Office&home furniture
-
Color:
-
Red ( customized)
-
Advantages:
-
security
-
Finish:
-
Powder Coated Flame Red
-
Usage:
-
suit any standard fire extinguisher
-
Drawer Type::
-
Letter

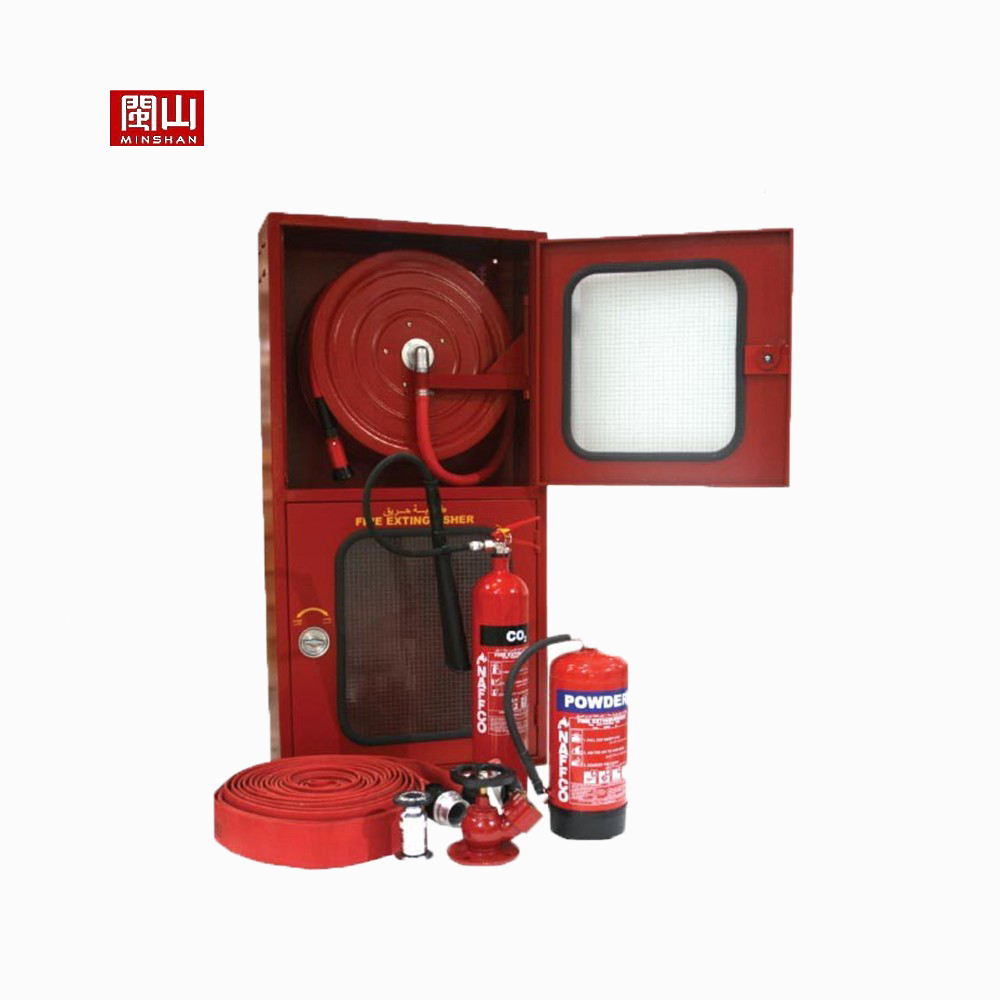

Fire Extinguisher Cabinets / Fire Hose Reel Cabinets / Hydrant Booster Cabinets / Custom Cabinets & Parts / Fire Hose Cabinets
SGS approved high pressure water mist fire hose cabinet
•Applicable to Class A (general fire), Class B (oil fire), Class C (electricity fire), Class D (Metal fire) and others . (Remark: When confronting the metal fire, please add the firefighting foam to the foam tank so as to do firefighting. )
Applications:
- IT, Computer Rooms, Communication Equipment Rooms
- Clean Rooms, Semi-Conductor Assembly Production Lines
- Electrical Switch Rooms, Industrial boilers, Turbine Houses
- Chemicals’ Laboratories or Storage Room
- Factories, Under Construction Buildings
Features:
Quick and easy operte by individual
After testing by men, women, the old and children, it proves that it is very easy to manipulate by anyone.
Twi-Fire fighting choice
The operator can choose the high pressure nozzle or the water mist nozzle when facing different fire scenario so as to extinguish the fire.
No Electrical induction
When the distance is far away from 60 centimeters, using the water mist nozzle can swiftly put out the initial fire without shutting down the electricity, pushing out the heavy smoke, lowering the temperature of the surroundings and prevent the phenomenon of flash-over.
Fast for recovery
Compared to the chemical or foam extinguishers, using the water mist for firefighting is easy to clean up for the high tech equipment or fine and delicate electrical instruments. Besides the time for recovery is faster than the chemical or foam extinguishers’ without corrosion damage.
Main Parts - SGS approved high pressure water mist fire hose cabinet
| Name | Characteristics | Materials |
| Cabinet Painted with Red Color | 800*800*300mm (L*W*H) | SS400 steel |
| Turntable | 585*585mm | SS400 steel |
| Holding Rack |
SGS passed
Maximum Loading 130Kg Tension Strength up to 700Kg |
SS400 steel |
| 40M High Press Water Hose | Working Pressure up to 2160Psi | NBR-oil Resistant Black Synthetic Rubber & Single Wire Braid |
| 3/8 ”Male Quick Release Connector | 3/8 ” | SUS304 stainless steel |
| 360 degree Connector | 1/2” turn to 3/8 ” | SUS304 stainless steel |
| Fire Fighting Water Gun |
Length:49 cm Weight:2Kg |
SUS304 stainless steel , Plastic & Rubber |
| Nozzles | Water mist nozzle *1 & Jet Spray nozzle *1 | |
| High Pressure Water Mist Nozzle |
Q=24LPM↑,42 kg/cm
2
↑, Spray Distance:13m
↑
|
|
| Weight | 69kg | |
| Scope of application |
Class A, Class B, Class and Class D fires.
When confronting Class B and Class D fires, adding the chemical for firefighting will have super strong efficacy. |
|
System advantages
- Immediate fire fighting capability (Class A, B, C, D, and K fires)
- Easy to use, almost no reaction force on discharge.
- Installed at strategic locations close to the risk.
- Safe for use on liquid fires.
- Operator is protected against radiant heat.
- Highly efficient fire fighting.
- Continuous supply of water mist.
- Unlimited extinguishing time.
- Minimal water consumption and water damage.
- Environmentally friendly.
- Easy maintenance.
SGS approved high pressure water mist fire hose cabinet
*
Warranty Commitment
One Year
*Providing Well and Best After-Sales Service
When facing the problem beyond listed in our technical manual, we offer several ways to help your solving your problem including e-mail, skype and alibaba on-line service.
