Quick Details
-
Product name:
-

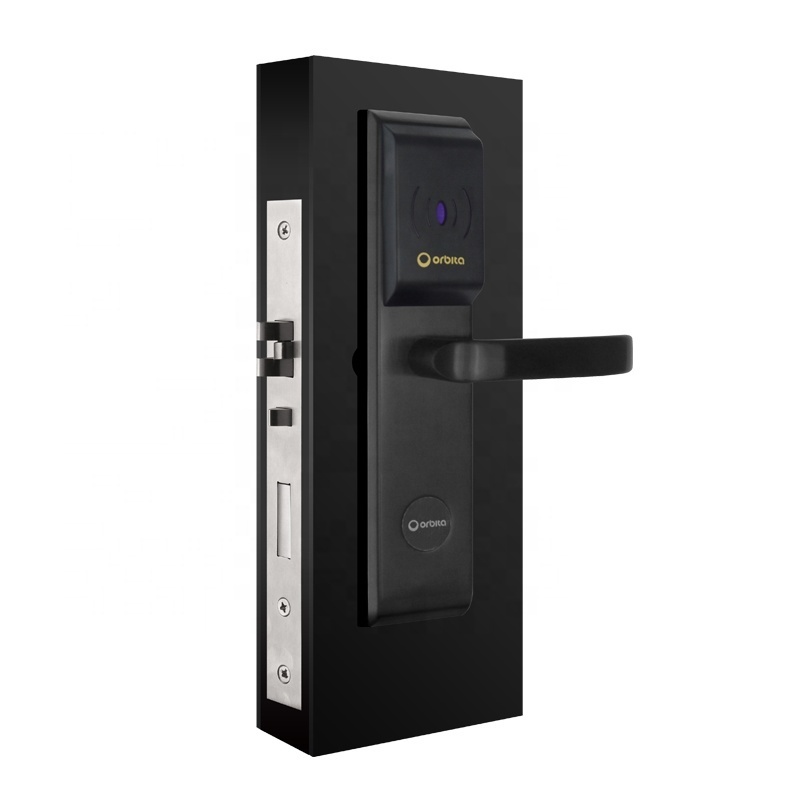

Orbita High Quality Hotel Room Card Lock System
-
Material:
-
304 Stainless Steel/2.0mm, Moisture Proof, Fire Rated
-
Mortise:
-
ANSI Standard Mortise
-
Card option:
-
RFID, M1 K / S50 Card, Temic card
-
Certificate:
-
CE, FCC, BHMA, ISO, Fidelio /Opera
-
PMS interface:
-
Fidelio Registered, Others Available
-
Size:
-
L290mm*W60mm*H34mm
-
Warranty:
-
2 Years
-
Working Voltage:
-
DC6 or 4 AA Alkaline Batteries
-
Color:
-
Silver, Golden(PVD), Black
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ORBITA
-
Model Number:
-
E3441
-
Product name:
-
Orbita High Quality Hotel Room Card Lock System
-
Material:
-
304 Stainless Steel/2.0mm, Moisture Proof, Fire Rated
-
Mortise:
-
ANSI Standard Mortise
-
Card option:
-
RFID, M1 K / S50 Card, Temic card
-
Certificate:
-
CE, FCC, BHMA, ISO, Fidelio /Opera
-
PMS interface:
-
Fidelio Registered, Others Available
-
Size:
-
L290mm*W60mm*H34mm
-
Warranty:
-
2 Years
-
Working Voltage:
-
DC6 or 4 AA Alkaline Batteries
-
Color:
-
Silver, Golden(PVD), Black
Product Description
|
External Panel Dimension
|
L290mm*W60mm*H34mm
|
|
|
|
|||
|
Key Feature
|
IP54 Waterproof Function
, Good Performance Under Hyperthermia and Humid Environment
|
|
|
|
|||
|
Material
|
Complete 304 Stainless Steel, 2.0mm
|
|
|
|
|||
|
Mortise Type
|
5 latch ANSI U.S. standard mortise or European standard mortise 72mm/85 mm hole distance
|
|
|
|
|||
|
Certificates
|
CE, FCC, IP54 Waterproof, Fireproof, BHMA(America army standards, unlock last more than 800,000 times circles)
|
|
|
|
|||
|
Keycard Options
|
125khz Temic card, 13.56 mhz M1/MF card, RFID card
|
|
|
|
|||
|
PMS System
|
Interface with most of the PMS systems, Fidelio/Opera registered
|
|
|
|
|||
|
Opening Records
|
1680pcs
|
|
|
|
|||
|
Color Optional
|
Silver, Golden(PVD), Black
|
|
|
|
|||
|
Application
|
Star/Economic Hotel, Resort, Apartment, Dormitory, Motel, Cruise Ship etc.
|
|
|
|
|||
|
Life Span
|
About 10 to 15 years
|
|
|
|
|||
Fancy Features:
Suitable For Moist and Foggy Environment
● The PCB was dealed with silicon encapsulated treatment that
make it waterproof and moistureproof.
● The PCB was assembled with imported brand components.
● After a variety of surface treatment, the panel sealed glaze treatment at last.
●
Experienced 90 minutes aging test and 96 hours salt spray test.
The Door Lock Mortise and Advantages:
1. Both ANSI standard mortise and European standard mortise( 72mm/85mm hole distance) are
anti panic(Panic release).
2. Easy for lock installation,
the lock surface can cover most of the door holes which is digged for old locks.
3. The mortise is suitable for more than 90% locks in the market, so
it is very easy and convenient to replace the old locks by our locks.
4. Inside dead bolt. Inside handle retracts latches and deadbolts.
The detailed photos of the door lock and the installation diagram
How ORBITA waterproof fashion smart hotel door lock system works?
(It can be updated to bluetooth system that open the locks by mobilephone；
Our software can support multi-language, such as English, Germany, French, Spanish etc.
)
1. Hotel card lock (Installed on the hotel room door)
2. PC(usually located on the reception desk of hotel lobby)
3. Hotel lock management software(Download to PC, setting the software system )
4. Encoder (Connect to PC, Issue the cards)
5. Cards (Open doors)
2. PC(usually located on the reception desk of hotel lobby)
3. Hotel lock management software(Download to PC, setting the software system )
4. Encoder (Connect to PC, Issue the cards)
5. Cards (Open doors)
|
Electronic hotel card lock system for 1 hotel need following accessories
|
|
|
|
|
||||
|
Accessories Name
|
Suggestion Qty
|
|
Function
|
|
||||
|
Lock
|
Same as door qty
|
|
Locking the door
|
|
||||
|
Cards
|
5~10 times of door qty
|
|
Openning the lock
|
|
||||
|
Encoder
|
1~2pcs/hotel
|
|
Issuing all kinds of cards
|
|
||||
|
Data Cards
|
1~2pcs/hotel
|
|
Getting the records of the door's opening
|
|
||||
|
Software System
|
1 disk, free of charge
|
|
Setting the program the whole system
|
|
||||
|
Handset
|
1~2pcs/hotel,optinal
|
|
Program locks,use as master cards ,check clock,check openning records...
|
|
||||
|
Energy Saver Switch
|
Same as door qty
|
|
Getting power
|
|
||||
Orbita Recommend Products(Please click below pictures know more detailed information)
Customer Feedback
Packing & Delivery
1. Packing Size(W*D*H): 490*360*450mm
2. Package sort: PP bag+foam
3. Net/Gross Weight(KGS): 16.3/17.0
4. Qty/Carton: 6 pieces in one carton
2. Package sort: PP bag+foam
3. Net/Gross Weight(KGS): 16.3/17.0
4. Qty/Carton: 6 pieces in one carton
