Quick Details
-
Control Software:
-
Golden Laser Original Software
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Golden Laser
-
Weight (KG):
-
2000 KG
-
Applicable Industries:
-
Carpet Production, Home Interior, Automotive Interior, Insulation, Outdoors, Industrial, etc
-
Products handled:
-
Roll Fed
-
Certification:
-
CE ISO
Quick Details
-
Laser Type:
-
CO2
-
Cooling Mode:
-
WATER COOLING
-
Cutting Area:
-
2100mm*3000mm
-
Control Software:
-
Golden Laser Original Software
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Golden Laser
-
Weight (KG):
-
2000 KG
-
Applicable Industries:
-
Carpet Production, Home Interior, Automotive Interior, Insulation, Outdoors, Industrial, etc
-
Products handled:
-
Roll Fed
-
Certification:
-
CE ISO
NOTE:
Different configurations have different prices. The price on Alibaba is NOT real price, please contact us to get the latest quotation. Thank you.;-)
Product Description

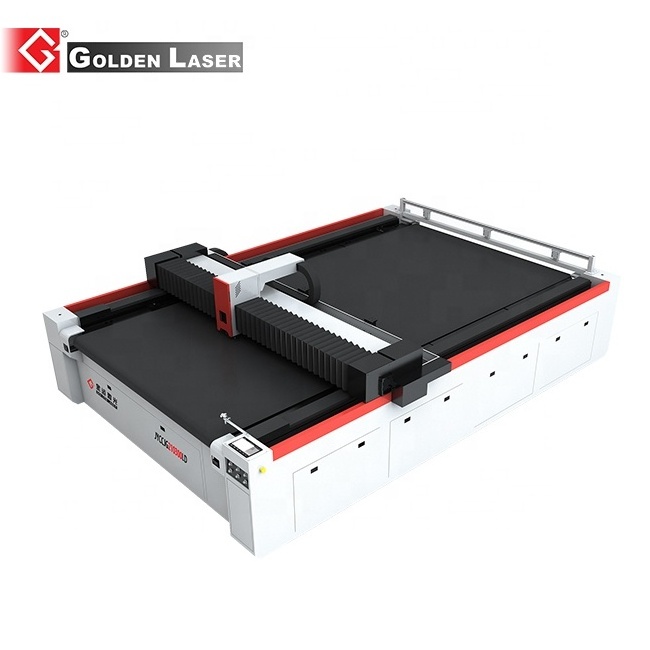

Carpet Laser Cutting Machine
__
Carpet fabric are usually made of non-woven, polypropylene fiber, blended fabric, leatherette and other composite material. CO2 laser systems are ideally suitable for cutting of various non-metal materials. In particular, the contactless processing with the laser beam and the distortion-free cutting involved, as well as the high precision are crucial arguments for the use of laser technology in textile processing.
Specification
|
JYCCJG-210300LD
Technical Parameters
|
|
|
|
Laser type
|
CO2 DC glass laser 150W / 300W
|
|
|
|
CO2 RF metal laser 150W / 300W / 600W
|
|
|
Cutting area
|
2100×3000mm
|
|
|
Working table
|
Conveyor working table
|
|
|
Working speed
|
Adjustable
|
|
|
Positioning accuracy
|
±0.1mm
|
|
|
Motion system
|
Offline mode servo motor control system, 5 inch LCD screen
|
|
|
Cooling system
|
Constant temperature water chiller
|
|
|
Power supply
|
AC220V ± 5% 50Hz/60Hz
|
|
|
Format supported
|
AI, BMP, PLT, DXF, DST etc.
|
|
|
Standard collocation
|
1 set of 550W top exhaust suction machine, 2 sets of 3000W bottom exhaust suction machines, mini air compressor
|
|
|
Optional collocation
|
Auto-feeding system, red light positioning
|
|
Features
__
• Open-type or closed type design. Processing format 2100mm × 3000mm. Servo motor driving. High efficiency and good processing effect.
• Particularly suitable for large format continuous line engraving as well as cutting sizes and shapes of various carpets, mats and rugs.
• Conveyor working table with the auto-feeding device (optional). Fast and continuous cutting of carpet.
• The laser cutting machine can do extra-long nesting and full format cutting on a single pattern that is longer than the cutting format of the machine.
• Optional smart nesting software can do fast and material-saving nesting on the graphics to be cut.
• 5-inch LCD screen CNC operating system supports multiple data transmission mode and can run in offline and online modes.
• Following up exhaust suction system to synchronize laser head and exhaust suction system, good suction effects, saving energy.
• Red light positioning device prevents position deviation of the material in the feeding process and ensures high processing quality.
• Users can also choose formats of 1600mm × 3000mm, 4000mm x 3000mm, 2500mm × 3000mm working table and also other customized format of working table.
Advantages
__
* High precision - accurate cutting of details
* Clean and perfect cut edges - no fraying or charring
* High flexibility in contour - without tool preparation or tool changes
* Sealing of cut edges when cutting synthetic carpets
* No tool wear - consistently high cutting quality
• Open-type or closed type design. Processing format 2100mm × 3000mm. Servo motor driving. High efficiency and good processing effect.
• Particularly suitable for large format continuous line engraving as well as cutting sizes and shapes of various carpets, mats and rugs.
• Conveyor working table with the auto-feeding device (optional). Fast and continuous cutting of carpet.
• The laser cutting machine can do extra-long nesting and full format cutting on a single pattern that is longer than the cutting format of the machine.
• Optional smart nesting software can do fast and material-saving nesting on the graphics to be cut.
• 5-inch LCD screen CNC operating system supports multiple data transmission mode and can run in offline and online modes.
• Following up exhaust suction system to synchronize laser head and exhaust suction system, good suction effects, saving energy.
• Red light positioning device prevents position deviation of the material in the feeding process and ensures high processing quality.
• Users can also choose formats of 1600mm × 3000mm, 4000mm x 3000mm, 2500mm × 3000mm working table and also other customized format of working table.
Advantages
__
* High precision - accurate cutting of details
* Clean and perfect cut edges - no fraying or charring
* High flexibility in contour - without tool preparation or tool changes
* Sealing of cut edges when cutting synthetic carpets
* No tool wear - consistently high cutting quality
Applications
Suitable for
non-woven, polypropylene fiber, blended fabric, leatherette and other carpets.
Suitable for various carpets cutting.
Suitable for various carpets cutting.
