Quick Details
-
Productivity:
-
10-15M³/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yuandong
-
Weight:
-
1600 kg
-
Dimension(L*W*H):
-
3*1.2*1.3m
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
Placing Boom Truck-mounted Concrete Delivery Pump
-
Structure:
-
secondary structure
-
Control mode:
-
electric-liquid,hydraulic overload protection and instrument display
-
Anti-pump function:
-
Eliminate pipe blockage in time and shut down for a short time
-
Engine:
-
Electric Diesel Gasoline Engine
-
Max. Concrete Output:
-
40M³/H
-
Function:
-
high-rise building ash mortar and fine stone concrete transportation
-
Feature1:
-
Optimized design of the hopper is easy to clean and work
-
Machine material:
-
High-quality seals prevent internal and external material leakage
-
System:
-
Fully hydraulic system
Quick Details
-
Power Type:
-
Gasoline/diesel/electric
-
Max. vertical conveying distance:
-
120M
-
Max. horizontal conveying distance:
-
80
-
Productivity:
-
10-15M³/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yuandong
-
Weight:
-
1600 kg
-
Dimension(L*W*H):
-
3*1.2*1.3m
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
Placing Boom Truck-mounted Concrete Delivery Pump
-
Structure:
-
secondary structure
-
Control mode:
-
electric-liquid,hydraulic overload protection and instrument display
-
Anti-pump function:
-
Eliminate pipe blockage in time and shut down for a short time
-
Engine:
-
Electric Diesel Gasoline Engine
-
Max. Concrete Output:
-
40M³/H
-
Function:
-
high-rise building ash mortar and fine stone concrete transportation
-
Feature1:
-
Optimized design of the hopper is easy to clean and work
-
Machine material:
-
High-quality seals prevent internal and external material leakage
-
System:
-
Fully hydraulic system
The concrete pump also called concrete delivery pump which composed of a pump body and a delivery pipe. It is a machine that uses pressure to continuously transport concrete along pipelines. It is mainly used in construction of houses, bridges and tunnels. Mainly divided into gate valve concrete pump and S valve concrete pump.
|
Model |
XK-15 |
XK-20 |
XK-30 |
XK-37 |
|
Weight (KG) |
600 |
1000 |
1300 |
1400 |
|
Aggregate size (MM) |
< 20 |
< 20 |
< 30 |
< 30 |
|
Conveying pipe diameter (MM) |
Φ80 |
Φ80 |
Φ100/Φ80 |
Φ100/Φ80 |
|
Dimension (M) |
1.8*0.7*1.1 |
2.7*1.1*1.2 |
3.0*1.2*1.3 |
3.0*1.2*1.3 |
|
Conveying height (M) |
15-20 |
25-40 |
40-80 |
50-100 |
|
Conveying distance (M) |
40-50 |
50-80 |
80-160 |
100-200 |
|
Power (KW) |
15 |
22 |
30 |
37 |
|
Theoretical efficiency (M³/H) |
6-8 |
8-12 |
10-15 |
15-20 |
|
Model |
XK-45 |
XK-50 |
ZS-45 Diesel |
ZS-50Diesel |
|
Weight (KG) |
2300 |
2500 |
2200 |
2980 |
|
Aggregate size (MM) |
< 30 |
< 40 |
< 30 |
< 40 |
|
Conveying pipe diameter (MM) |
Φ100/Φ80 |
Φ100/Φ80 |
Φ100/Φ80 |
Φ100/Φ120 |
|
Dimension (M) |
4.7*1.5*1.6 |
4.2*1.5*1.6 |
3.6*1.2*1.5 |
4.2*1.4*1.5 |
|
Conveying height (M) |
80-150 |
100-180 |
80-120 |
100-150 |
|
Conveying distance (M) |
180-250 |
200-300 |
150-250 |
200-300 |
|
Power (KW) |
45 |
55 |
Diesel 4108 72KW |
Diesel 6105 130KW |
|
Theoretical efficiency (M³/H) |
20-25 |
30-40 |
18-25 |
30-40 |

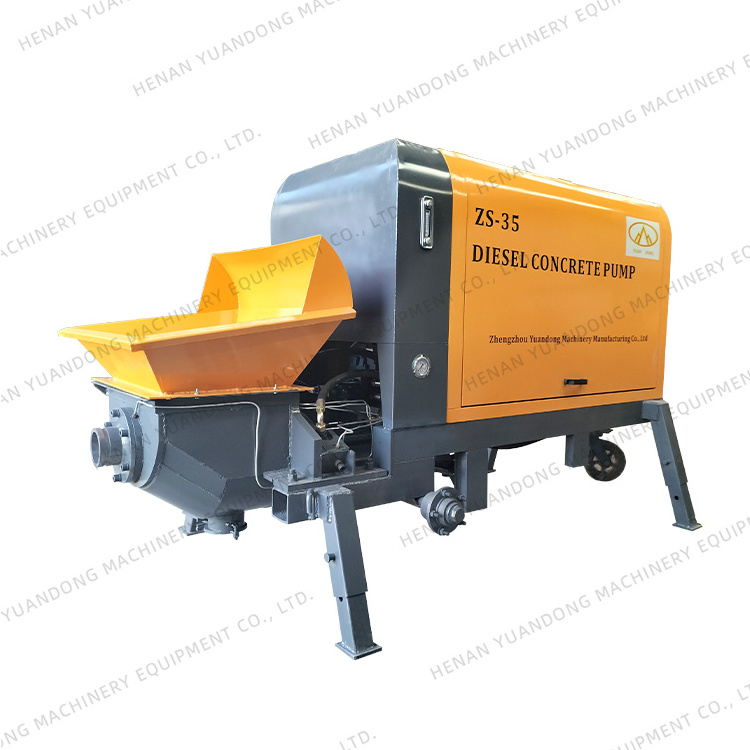

This product is a towed S-valve concrete pump, divided into electric concrete pumps, concrete pumps and diesel-powered hybrid pumps.
Performance characteristics
1. The triple pump open system is adopted, the hydraulic circuit does not interfere with each other, and the system runs.
2. With anti-pump function, it is helpful to eliminate pipe blockage in time, and can be shut down for a short time.
3. The advanced S-pipe distribution valve is adopted, which can automatically compensate the wear gap and has good sealing performance.
4. . Using wear-resistant alloy glasses plate and floating cutting ring, long service life.
5. . The long-stroke material cylinder extends the service life of the material cylinder and piston.
6. The optimized design of the hopper is easy to clean and has better suction performance.
7. Automatic centralized lubrication system to ensure effective lubrication during machine operation.
8. With remote control function, the operation is safer and more convenient.
9. All parts and components adopt national standards, and the interchangeability is good.
