Quick Details
-
Brand Name:
-
MOEN
-
Model Number:
-
MOEN-W6161
-
Brand name:
-
MOEN
-
Product name:
-
Optical Digital Multimeter
-
Model:
-
MOEN-W6161
-
Fiber optic serial port:
-
0-30A
-
Phase voltage output (effective value):
-
2 pairs*(2~10Mbits/s),SC
-
Receive time stamp accuracy:
-
<25ns
-
Battery:
-
Rechargeable lithium battery, 11000mAh
-
Power supply:
-
4.2V,3.0A
-
Volume:
-
250mm*140mm*44mm
-
Weight:
-
1kg
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Hubei
-
Brand Name:
-
MOEN
-
Model Number:
-
MOEN-W6161
-
Brand name:
-
MOEN
-
Product name:
-
Optical Digital Multimeter
-
Model:
-
MOEN-W6161
-
Fiber optic serial port:
-
0-30A
-
Phase voltage output (effective value):
-
2 pairs*(2~10Mbits/s),SC
-
Receive time stamp accuracy:
-
<25ns
-
Battery:
-
Rechargeable lithium battery, 11000mAh
-
Power supply:
-
4.2V,3.0A
-
Volume:
-
250mm*140mm*44mm
-
Weight:
-
1kg

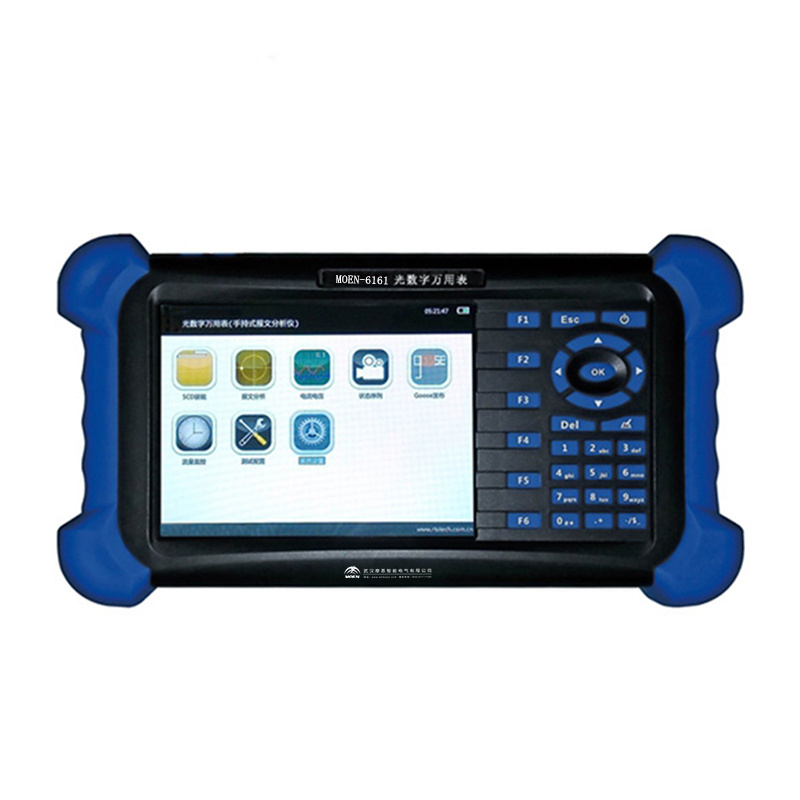

MOEN-W6161 2024 New Optical Digital Multimeter High Precision Test Instrument
Product Features：
1. 5.7-inch capacitive multi-touch screen, built-in 11000mAh large-capacity rechargeable lithium battery, with a battery life of more than 6 hours;
2. 2 pairs of fiber optic Ethernet ports, 2 pairs of fiber optic serial ports, 1 IRIG-B/PPS synchronization interface, supporting single fiber connection;
3. Supports USB storage device access to facilitate import and export of data;
4. Support IEC61850-9-1/2/LE, Goose, IEC60044-7/8 FT3, IEEE-1588, IRIG-B, PPS, SCL and other standards;
5. Integrate multiple functions into one to easily complete protection measurement and control devices, merging units, intelligent terminals, and transformer tests at the bay level and process level;
6. Charts display various electrical parameters. Users do not need to care about the details of message analysis and can directly view the results;
7. A9+FPGA dual-core industrial computer performance, fast computing speed, message sending discreteness <0.1us, message receiving time scale error <25ns;
8. Small and exquisite, easy to carry and easy to test;
|
1. Fiber optic Ethernet port 2 pairs × 100Mbits/s, SC, multi-mode, 1310nm;
IEC61850-9-1/2/LE, Goose, IEEE-1588; Transmission
dispersion: <0.1μs Receive time scale accuracy: <25ns 1588 timing accuracy: <80ns
2. Fiber optic serial port 2 pairs × (2~10Mbits/s),
SC, multi-mode, 850nm; IEC60044-7/8, FT3; supports Mann code or asynchronous serial port transmission mode; transmission dispersion: <0.1μs Receive time scale accuracy: <25ns
3. Synchronous interface: 1 x IRIG-B/PPS optical port, SC, multi-mode, 850nm Accuracy: <1μs
4. 1 electrical Ethernet port, RJ-45, 100Mbits/s
5. 1 USB interface, USB storage device
6. Screen 5.7’, capacitive screen, multi-touch
7. Power supply 4.2V, 3.0A
8. Battery: Rechargeable lithium battery, 11000mAh, battery life: >6 hours 9.
Volume: 250mm×140mm×44mm Weight: <1Kg |
