Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Poweronly
-
Model Number:
-
BC100
-
Speed:
-
1500/1800 RPM
-
Weight:
-
1600Kgs
-
Product Name:
-
Diesel Generator
-
Engine:
-
Cummins
-
Color:
-
White
-
Alternator:
-
Stamford,Leroy Somer,Marathon
-
Controller:
-
Smartgen/Deepsea/Comap
-
Keyword:
-
30kva generator
-
Certificate:
-
ISO9001,CE
Quick Details
-
Rated Voltage:
-
220V/380V
-
Rated Current:
-
144A
-
Frequency:
-
50/60HZ
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Poweronly
-
Model Number:
-
BC100
-
Speed:
-
1500/1800 RPM
-
Weight:
-
1600Kgs
-
Product Name:
-
Diesel Generator
-
Engine:
-
Cummins
-
Color:
-
White
-
Alternator:
-
Stamford,Leroy Somer,Marathon
-
Controller:
-
Smartgen/Deepsea/Comap
-
Keyword:
-
30kva generator
-
Certificate:
-
ISO9001,CE

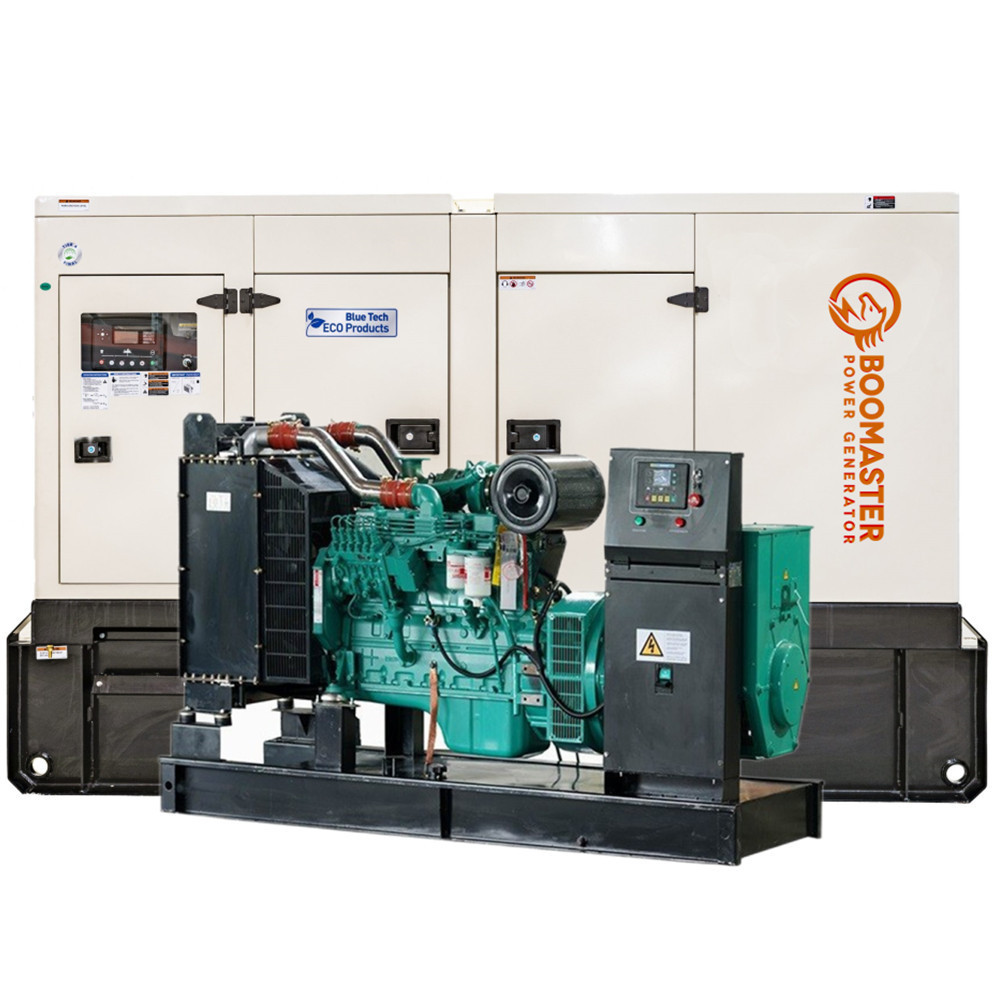

100kva G2 Cummins diesel generator | |
Genset Specification | |
Genset Model | BC100 |
Prime Power(Kw/Kva) | 80/100 |
Frequency | 50Hz |
Structure type | Open or Soudproof |
Dba"@7m | silent genset 55-78 dba @ 7m , open type75-98 dba @7m |
Engine Model | 6BT5.9-G2 |
Alternator Model | STG274C |
Open type DimensionL*W*H(mm) | 2100*700*1380 |
Weight(Kg) | 1500 |
Silent type DimensionL*W*H(mm) | 2300*1000*1500 |
Weight(Kg) | 1700 |
Engine Detail | |
Manufacturer | cummins engine |
Model | 6BT5.9-G2 |
Engine speed | 1500rpm |
Engine Characters | water-cooled,6cylinders in line,4-cycle,direct injection |
The maximum output(kw) | 110KW |
Aspiration | Turbocharged |
Bore(mm)xStroke(mm) | 102*120 |
Compression ration | 17.5:1 |
Fuel consumption(L/H) | 22(100%loading) |
Displacement(Liters) | 5.9 |
Exhaust air flow(m3/min) | 148 |
Compress air flow(m3/min) | 5.8 |
Exhaust gas flow(m3/min) | 14 |
Exhaust highest temperature | 510℃ |
Lube-oil pan capacity(L) | 16.4 |
Cooling water capacity(L) | 11Liters(Engine only) |
Voltage for start(V) | 24 |
Instrument for adjusting speed | Elctronically |
Noise level(A)@7m | 96dBA(open type) ,72dBA(silent type) |
Alternator Detail | |
Model | STG274C |
Output power(Kw/Kva) | 80/100 |
Number of phase | 3 |
Power factor(Cos Phi) | 0.8 |
Number of Pole | 6 |
Exciter type | Shunt |
Insulation class | H |
Voltage regulation | 0.50% |
Wave form:Nema=TIF | 50 |
Wave form:I.E.C=THF | 2% |
Bearing | single |
Coupling | Direct |
![](https://cdn.bestsuppliers.com/seo_products_img/boomaster/f7952d6dff3333f4b9639dc6f11906cf.jpg!/rotate/180)
![](https://cdn.bestsuppliers.com/seo_products_img/boomaster/ea33cfe977ef32dc8c6abeeb05844b23.jpg!/rotate/180)
Boomaster Power who is devoted to the R&D and manufacturing of diesel generator sets since its establishment in 2008 ,Wetech accumulates a wealth
of experience in the manufacturing and maintenance of generator sets field. Our production capacity amounts to 4000 sets per year.
Wetech production are submit to ISO8525, GB/T2820-97 and CE certification, and quality certified by ISO9001 & ISO14001 Management System to guarantee high quality products and service.
FAQ
Q1: How is your Package & Payment & Delivery Date & Warranty?
A.1) Package: Plastic film (free of charge) or wooden case (add USD200 for wooden)
A.2) Payment: by 30% T/T as deposit, 70% balance should be paid 10 days before shipment. Or 100% L/C at sight.
A.3) Delivery: 7-25 days after we get the down payment.
A.4) Warranty: Guarantee for one year or 1000 running hours (whichever come first shall apply) from installed date.During the guarantee period.
such as Cummins or Perkins generators. they are international brands and the after-sale service is worldwide.
you can contact your country's after-sale or contact us for repairment. when replacing spare parts, please kindly take some pictures to describe the problems. we will solve it a.s.a.p.
Q2: Any advantages about your company?
Answers: Boomaster Brand Diesel Generators with following advantages:
----MOQ is 1 set and we could finis more than 100sets/month
---- Middle-high Positioning;
---- 7-25days Lead-time;
---- Got the ISO and CE certificate; OEM Certifications
--- High quality with the best price can help you get more benefit and beat your competitors;
---- Powered by Cummins, Perkins, Detuz etc. famous engine brands optional;
---- Open, Soundproof Canopy, Container, Trailer etc. for your choose.
Q3: Any advantage of Digital Control Panel?
1) Controller Brand: Smartgen, Deepsea,ComAp
2) Control Panel: English interface,LED screen and touch buttons.
3) Main Functions:
1- Display loading power, voltage, current, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown.
