Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
MAISHI
-
Model Number:
-
MS88
-
Wire Gauge:
-
0.5mm_3mm
-
Product name:
-

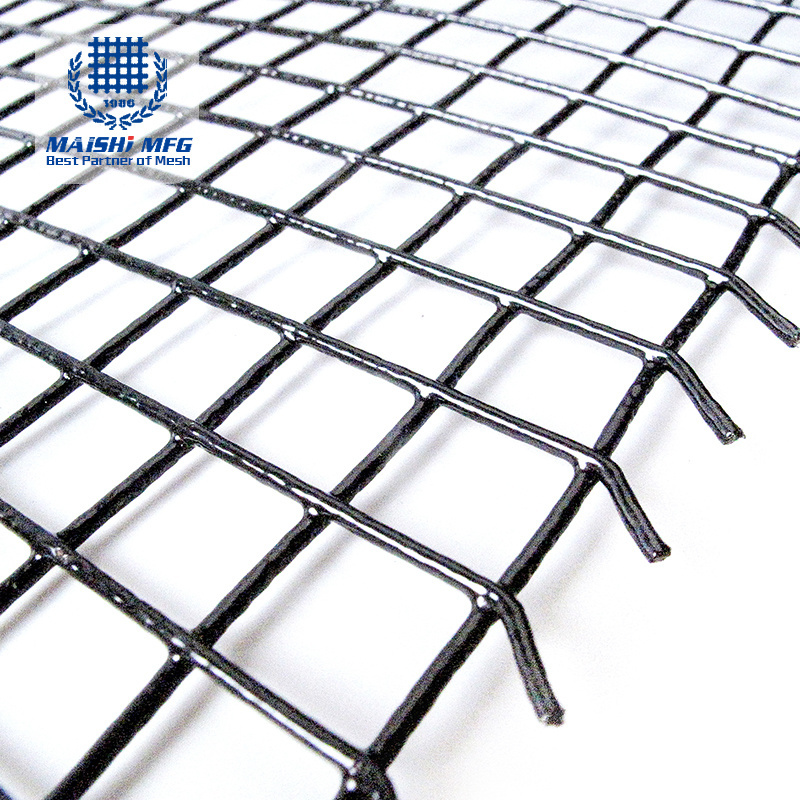

Black Powder Coated Welded Wire Mesh
-
Length:
-
25m, 30m ,50m
-
Width:
-
0.5M-3M
-
Usage:
-
Construction mesh and fence netting etc
Quick Details
-
Material:
-
Galvanized Iron Wire
-
Type:
-
Wire Cloth
-
Application:
-
Fence Mesh
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
MAISHI
-
Model Number:
-
MS88
-
Wire Gauge:
-
0.5mm_3mm
-
Product name:
-
Black Powder Coated Welded Wire Mesh
-
Length:
-
25m, 30m ,50m
-
Width:
-
0.5M-3M
-
Usage:
-
Construction mesh and fence netting etc
[ Welded Wire Mesh ]
Welded wire mesh, or welded wire fabric, or "weldmesh" is an electric fusion welded prefabricated joined grid consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing.
Machines used to produce the mesh must be with precise dimensional control. The product in considerable savings in time. labor and money.
Till now, we have 8 sets of large-scale automatic multiple spot welding machine, 7 stes of medium -sized multiple spot welding machine.
As for the production ability, we can produce 150-300 tons of welded wire mesh per month.(about 7-15 40' high containers)
Epoxy coated welded wire mesh
Epoxy coated welded mesh with Epoxy powder covering is constructed with galvanized iron wire of high quality. lt has Epoxy powder covering which is processed by an automatic machine. The smooth plastic coating on this corrosion protective wire is attached with a strong adhesive which can increase durability of the wire. lt is used in fencing residential and official properties like gardens, parks, building etc. The Epoxy coated welded mesh which is available as both rolls and panels.
As a leading welded wire mesh supplier and manufacturer,Hebei Maishi offers a full range of welded wire mesh for various applications. We supply the mesh from 1/2" to 6", customer requst can be customized .Welded wire mesh is generally constructed in rolls or flat panels designed by customers. Green plastic coated is widely used for fence and breeding .Custom wire openings available upon request.
welded wire mesh rolls
|
Opening
|
Wire diameter
|
Available Width
|
|
1/4'' x 1/4''
|
0.45mm-0.7mm
|
300mm-1830mm
|
|
3/4'' x 3/4''
|
0.7mm-2.0mm
|
300mm-1830mm
|
|
3/8'' x 3/8''
|
0.7mm-1.1mm
|
300mm-1830mm
|
|
5/8'' x 5/8''
|
0.8mm-1.2mm
|
300mm-1830mm
|
|
1/2'' x 1/2''
|
0.45mm-1.6 mm
|
300mm-1830mm
|
|
1'' x 1''
|
0.7mm-3.0mm
|
300mm-2000mm
|
|
1'' x 1/2''
|
0.8mm-1.6mm
|
300mm-1828mm
|
|
1-1/2'' x 1-1/2''
|
0.7mm-3.5mm
|
300mm-1828mm
|
|
1'' x 2''
|
1.6mm-2.1mm
|
300mm-1828mm
|
|
2'' x 2''
|
0.7mm-4.0mm
|
300mm-2500mm
|
|
2'' x 3''
|
1.5mm-3.5mm
|
300mm-2000mm
|
|
2'' x 4''
|
2.0mm-4.0mm
|
300mm-1828mm
|
|
3'' x 3''
|
1.0mm-4.5mm
|
300mm-2500mm
|
|
3'' x 4''
|
1.5mm-4.5mm
|
300mm-2000mm
|
|
4'' x 4''
|
1.0mm-4.5mm
|
300mm-2500mm
|
|
5'' x 5''
|
2.5mm-4.5mm
|
300mm-2500mm
|
|
6'' x 6''
|
2.5mm-4.5mm
|
300mm-2500mm
|
Welded Wire Mesh Panels
|
Opening
|
Wire diameter
|
Available width
|
|
1/2'' x 1/2''
|
0.45mm-2.0mm
|
100mm-1830mm
|
|
1'' x 1''
|
0.7mm-3.5mm
|
100mm-2000mm
|
|
1'' x1/4''
|
0.45mm-4.0mm
|
100mm-2000mm
|
|
1''x 1/2''
|
0.45mm-4.0mm
|
100mm-3600mm
2 x 2 |
|
2'' x 2''
|
0.7mm-6.0mm
|
100mm-3600mm
|
|
3'' x 3''
|
1.0mm-7.0mm
|
100mm-3600mm
|
|
4'' x 4''
|
1.0mm-8.0mm
|
100mm-3600mm
|
|
5'' x 5''
|
2.5mm-9.0mm
|
100mm-3600mm
|
|
6'' x 6''
|
2.5mm-10.0mm
|
100mm-3600mm
|
Roll or panel length can be negotiated, welcome to contact us for further information.
[ Quality Standard ]
Our products can meet below quality standard:
[ JG/T114-1997 ] National Standard
[ BS4483 ] British Standard
[ DIN488 ] German Standard
[ SIA16211 S550 ] Swiss Fabric Standard
[ NFA35-016 ] Franch Fabric Standard
[ onORM B4200/7 ] Australian Fabric Standard
[ Production ]
Our automatic welding machines can set up any mesh sizes in the market, no matter it's standard type or special requirement;
The fully digital controlled techniques and well-trained staff can ensure the even mesh size and the accurate dimensions of panels.
[ Guarantee ]
1.We guarantee our customers will get right material and sizes,enough weight,on time delivery at our best service and price
2.The goods can be returned or compensated if the quality is not ok
3.There is no "cheat" and "misunderstanding" in Maishi
