Quick Details
-
Input signal:
-
±10A; ±2000V; 75mV
-
Output signal:
-
4-20mA; 20-4mA; ±10V
-
Accuracy:
-
0.1%F.S.
-
Power supply:
-
DC24V,±10%
-
Input resistance:
-
≥300Ω
-
Output load resistance:
-
≤700Ω; ≥2KΩ
-
Certificate:
-
CE ,ISO9001
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Qidian
-
Model Number:
-
GLT-B
-
Input signal:
-
±10A; ±2000V; 75mV
-
Output signal:
-
4-20mA; 20-4mA; ±10V
-
Accuracy:
-
0.1%F.S.
-
Power supply:
-
DC24V,±10%
-
Input resistance:
-
≥300Ω
-
Output load resistance:
-
≤700Ω; ≥2KΩ
-
Certificate:
-
CE ,ISO9001

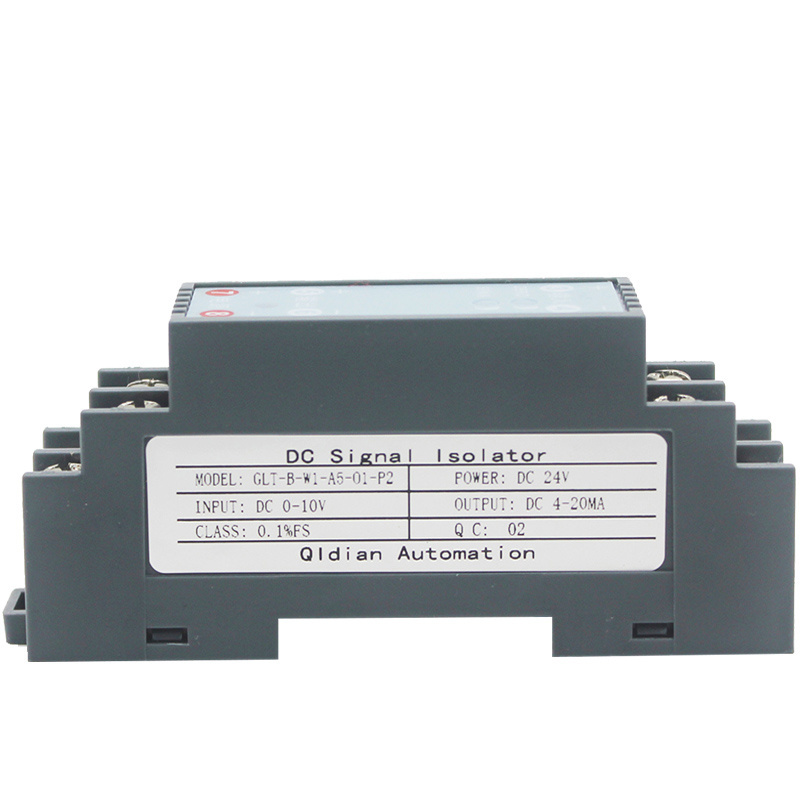

GLT-B DC Voltage Transmitter 0-2000V Input Signal Isolator Converter Splitter Voltage Transducer
<1>. This multi-functional transmitter, input voltage ranges i s -2000V~2000V , input current range is -10A~10A .
<2>. It can be used for standard signals, such as 4~20mA, 0~10V, 0~5V,-10V~10V,etc.
BUT, it also can be used for non-standard signals, such as 20~4mA, 10~0V, -10V~10V,etc.
<3>.
Standard 35mm DIN rail independent mounting. High precision, high linearity, low temperature drift. Full channel configuration, parameter customized.
<4>. The input, output and power are isolated from each other, isolating the industrial DC voltage signal and converting it into standard current or voltage signal.
|
Input |
|
| Input Signal | ±10A; ±2000V; 0~75mV |
| Input Resistance | ≥300Ω |
| Output | |
| Output Signal | 4-20mA; 20-4mA; ±10V |
| Output Load Resistance |
RL≤500Ω(output current signal) RL≥10KΩ(output voltage signal) |
| Other Parameters | |
| Power Supply | DC24V,±10% |
|
Current consumption |
≤30mA(1 in 1 out,24V power supply output 20mA); |
| ≤50mA(1 in 2 out,24V power supply output 20mA); | |
| ≤50mA(2 in 2 out,24V power supply output 20mA); | |
| Accuracy | 0.1% F.S. |
| Respond Time | ≤10mS(0-90%) (TYP) |
| Temperature Drift | 0.005%F.S./℃ (-20℃~+55℃) |
| Isolation Intensity | 1500V AC/1min(between input-ouput-power) |
| Insulation Resistance | ≥100MΩ(between input-ouput-power) |
| EMC | Complies with GB/T 18268(IEC61326-1) |
| Applicable Equipment | Voltage siganl output devices |
| Working Temperature & Humidity | -20℃~+55℃/<80%humidity(non condensing state) |
