Quick Details
-
Material:
-
wooden box, Al2O3
-
Weight:
-
Depends on capacity
-
Size:
-
Depends on capacity
-
Weight (KG):
-
0.5 kg
-
Product name:
-
Flat sheet ceramic membrane
-
Model:
-
FCM
-
Application:
-
water treatment
Quick Details
-
Core Components:
-
housing, membrane
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TFT
-
Material:
-
wooden box, Al2O3
-
Weight:
-
Depends on capacity
-
Size:
-
Depends on capacity
-
Weight (KG):
-
0.5 kg
-
Product name:
-
Flat sheet ceramic membrane
-
Model:
-
FCM
-
Application:
-
water treatment
|
Products name
|
Flat sheet ceramic membrane
|
|
Material
|
Al2O3
|
|
Model
|
FCM
|
|
Application
|
water treatment
|
|
Model
|
FCM1010
|
FCM1020
|
FCM1040
|
||
|
Membrane Area
|
0.125m²
|
0.25m²
|
0.5m2
|
||
|
Dimension L*W"T
|
250*250*6mm
|
500*250*6mm
|
1000*250*6mm
|
||
|
Weight
|
0.5KG
|
1.0KG
|
1.9KG
|
||
|
Material
|
Al₂O₃
|
|
|
||
|
Pore size
|
100nm
|
|
|
||
|
PH
|
2-12
|
|
|
||
|
Temperature
|
5-80℃
|
|
|
||
|
Fitration Mode
|
Outside-In
|
|
|
||
|
Work Pressure
|
-0.06~0.20Mpa
|
|
|
||
|
Cieaning Mode
|
Online Backwash/Aeration / Chemical Cleaning
Offine Chemical Soaking / High-pressure Water Rinse
|
|
|
||
|

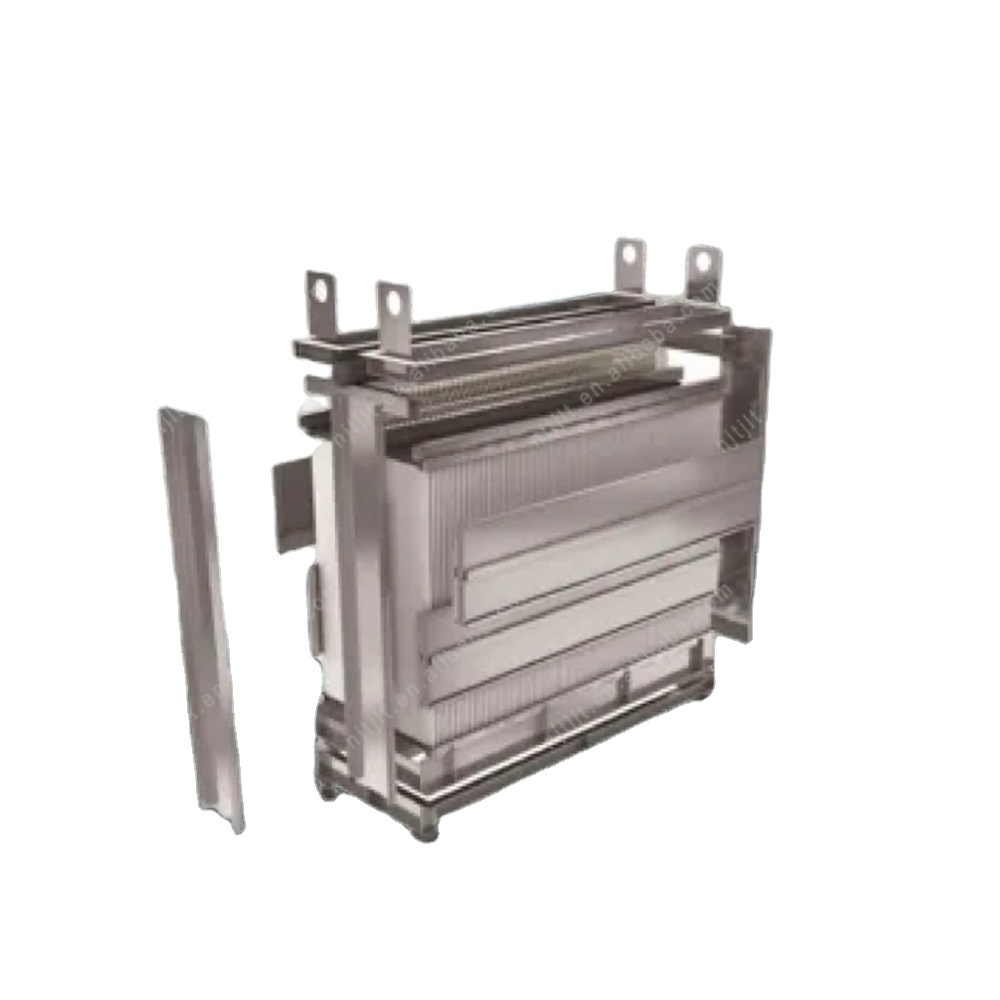

Module
|
|
TF-MH2
|
TF-MH25
|
TF-MH50
|
TF-MH100
|
TF-MH200
|
||||||
|
Parameters
|
Membrane Model
|
FCM1020
|
FCM1040
|
FCM1040
|
FCM1040
|
FCM1040
|
||||||
|
|
Membrane Qty
/pes |
10
|
50
|
100
|
200
|
400
|
||||||
|
|
Area/m²
|
2.5
|
25
|
50
|
100
|
200
|
||||||
|
|
Water Output
m'day |
2-3
|
15-35
|
30-70
|
60-140
|
120-280
|
||||||
|
Dimension
8 Weight |
Dimension
L*W*H/mm |
320*340*800
|
1010*320*1800
|
1720*320*1800
|
1720*720*1800
|
1720*720*3250
|
||||||
|
|
Weight /kg
|
15
|
200
|
310
|
630
|
1185
|
||||||
|
Operation
Condition |
PH
|
2-12
|
|
|
|
|
||||||
|
|
Temperature
|
5-80℃
|
|
|
|
|
||||||
|
|
Work Pressure
|
-0.06~0.2Mpa
|
|
|
|
|
||||||
|
|
Cleaning
|
Online Backwash/Aeration / Chemical Cleaning
Offine Chemical Soaking / High-pressure Water Rinse |
|
|
|
|
||||||
|
● Above data is just for reference .The actual water output fiux is determined according to the quality of raw water and the
general process design. ● Module load/size can be customized and designed according to the individual requirement |
|
|
|
|
|
|
||||||
FCM Ceramic Membrane Characteristics:
* High strength, acid and alkali corrosion resistance.
* High durability and long work life which is 2-3 times longer than polymeric membrane.
* Wide application range of water temperature.
* Environmentally friendly, can be recycled as a raw material for ceramic products.
* Good hydrophilicity, low operating pressure, saving energy.
* Diversified cleaning methods, surface is smooth, and the attachments are easy to fall off, good recovery.
* Automated management, easy maintenance.
TFT FCM flat sheet ceramic membranes are made of Al2O3, which are characterized by excellent chemical, oxidation,solvent and thermal stability. FCM product have been proved to be a reliable membrane for waste water treatment system by means of MBR(Membrane Bio Reactor) technology. FCM can work a similar principle as hollow fiber or polymeric plate MBR membrane, with a unique performance under harsh conditions.
