Quick Details
-
Standard or Nonstandard:
-
Standard
-
Color:
-
Black/brown/green
-
Service:
-
Prompt
-
Price:
-
reasonable
-
Temperature:
-
-30 C~+200
-
material:
-
nbr/fkm
-
consist of:
-
nbr/fkm, iron skeleton, spring
-
pressure:
-
max0.05mpa
-
speed:
-
max30m/s
-
application:
-
rotary shaft
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DSH
-
Model Number:
-
tto oil seal
-
Standard or Nonstandard:
-
Standard
-
Color:
-
Black/brown/green
-
Service:
-
Prompt
-
Price:
-
reasonable
-
Temperature:
-
-30 C~+200
-
material:
-
nbr/fkm
-
consist of:
-
nbr/fkm, iron skeleton, spring
-
pressure:
-
max0.05mpa
-
speed:
-
max30m/s
-
application:
-
rotary shaft

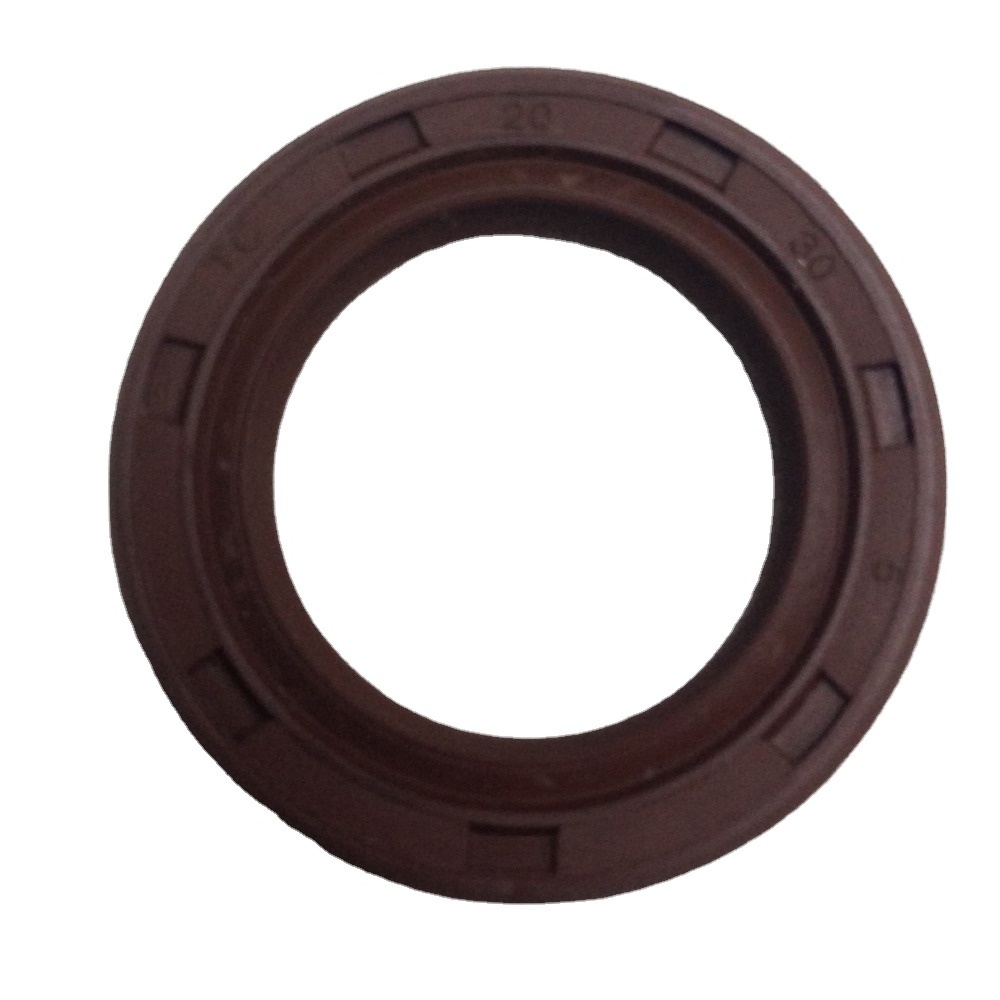

fkm material crankshaft oil seal for replacing tto Brand
is a double lipped rubber coated seal with a metal inner
Available in Nitrile.
The seal construction will consist of a sprung main sealing lip which has a point contact with the shaft. The point contact is formed by two angles, with the air side angle usually less than the oil side angle. Depending on the seal type these two angles are varied to create pressure distribution at the seal contact point which has a steeper slope on the oil side of the seal. The shallower the slope on the oil side of the seal the wetter the seal will run. The spring is positioned such that axially the centerline of the spring is biased to the air side of the lip contact point.
Temp -30~200
o
C, Speed≤30m/s, Pressure≤0.05MPa, Material NBR/FKM+Metal
