Quick Details
-
Brand Name:
-
Huahong
-
Dimension(L*W*H):
-
1700*900*700mm
-
Weight:
-
800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
visit factory:
-
supply
-
sample processing:
-
supply
-
color:
-
as to request
-
Max feeding size:
-
80mm
-
Installation:
-
Engineer Guide
-
Keyword:
-
Hammer crusher, hammer mill, stone crusher
-
After sale Service:
-
Life-long Service
-
Product name:
-
Hammer crusher, hammer mill, stone crusher
-
Spare parts supply:
-
Anytime
Quick Details
-
Application:
-
Mining
-
Capacity(t/h):
-
1-3t/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huahong
-
Dimension(L*W*H):
-
1700*900*700mm
-
Weight:
-
800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
visit factory:
-
supply
-
sample processing:
-
supply
-
color:
-
as to request
-
Max feeding size:
-
80mm
-
Installation:
-
Engineer Guide
-
Keyword:
-
Hammer crusher, hammer mill, stone crusher
-
After sale Service:
-
Life-long Service
-
Product name:
-
Hammer crusher, hammer mill, stone crusher
-
Spare parts supply:
-
Anytime

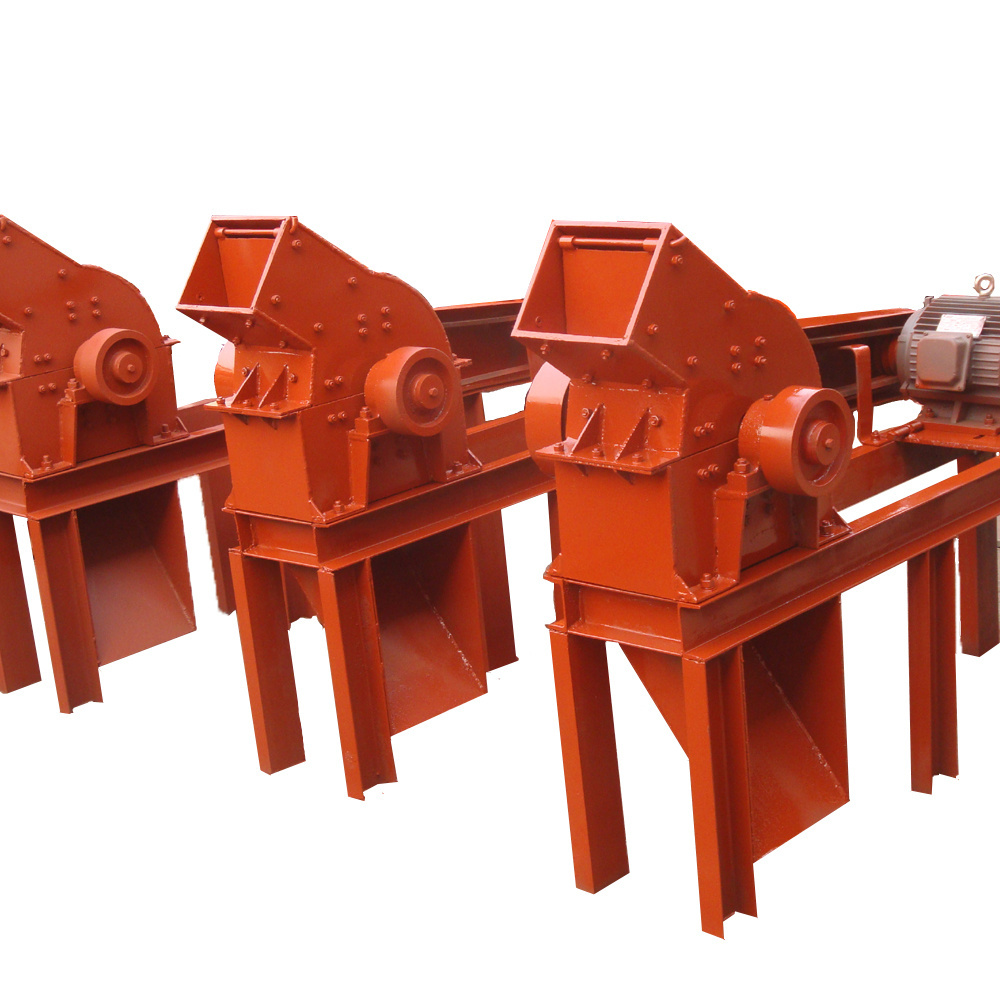

Hammer Crusher, Hammer Mill, Stone Crusher
1. The function of Hammer Crusher:
The series of products have the features of small volume ,light weight ,simple structure ,easy operation and maintenance ,high ratio of crushing ,too little crush , even product size ,high producing capacity .They are suitable for crushing all the materials of brittle,medium hard ,and compressive strength 150 Mpa.The features include great hammerhead work ,adoption of new technology casting ,with wear and impact resistance. This solve the problems of crushing plant dust pollution and gray body leakage.
2.The features of Hammer Crusher:
1, Hammer Crusher adopts new technology .
2, Adjusting grain size to cater for customers’need .
3, Seal body structure solved the problems of crushing plant dust pollution and gray body leakage .
4, The overall design has attractive appearance,compact structure ,less easy damaged parts ,convenient maintenance.
3.The specifications of Hammer Crusher:
|
Model |
Rotor speed (r/min) |
Feed opening size (mm) |
Max feeding size (mm) |
Discharghing size (mm) |
Capacity (t/h) |
Motor power (kw) |
Weight (t) |
Overall dimensions L×W×H (mm) |
|
PC300 × 200 |
1500 |
100*200 |
80 |
0-10 |
2-5 |
5.5 |
.32 |
700 × 750 × 800 |
|
PC400×300 |
1500 |
145×295 |
100 |
0-30 |
5-8 |
7.5 |
0.9 |
844×942×878 |
|
PC600×400 |
1000 |
295×450 |
100 |
0-35 |
10-12 |
18.5 |
1.5 |
1000×1000×1300 |
|
PC600×600 |
1000 |
295×570 |
100 |
0-35 |
12-18 |
45 |
2.14 |
1315×840×1501 |
|
PC800×600 |
1000 |
350×570 |
120 |
0-45 |
20-25 |
55 |
2.45 |
1515×2586×1040 |
|
PC800×800 |
1000 |
350×850 |
120 |
0-45 |
35-45 |
55 |
3.05 |
1515×2831×1040 |
|
PC1000×800 |
1000 |
580×580 |
200 |
0-45 |
25-40 |
110 |
6.5 |
3206×2210×1515 |
|
PC1000×1000 |
1000 |
580×1060 |
200 |
0-45 |
40-80 |
132 |
7.59 |
3514×2230×1515 |
|
PC 1250×800 |
750 |
650×850 |
200 |
0-45 |
20-50 |
132 |
11.7 |
2630×1780×2050 |
|
PC1250×1250 |
750 |
650×1330 |
200 |
0-45 |
90-110 |
185 |
13.2 |
2630×2180×2050 |
|
PC1400×1400 |
750 |
1050×1540 |
250 |
0-45 |
120-170 |
280 |
17.2 |
2790×2800×2310 |
|
PC1600×1600 |
600 |
1500×1785 |
350 |
0-60 |
220-280 |
450 |
22.8 |
3350×3120×2660 |
4. Hammer Crusher structure chart:
1 sieve plate
2 rotor plate
3 discharge hole
4 central axis
5 bracing piece
6 supporting ring
7 feed port
8 hammerhead
9 counter-attack board
10 arc lining plate
11 binding mechanism
....................................................................................................................................
