Quick Details
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WEIGUAN
-
Model Number:
-
YB-12
-
Product name:
-

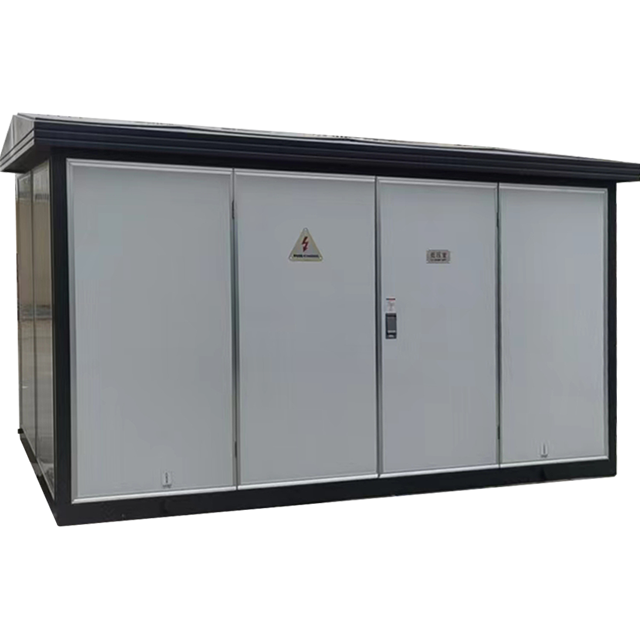

YB Box-Type Substation
-
Rated voltage:
-
10KV
-
Rated current:
-
400-630A
-
Rated capacity:
-
50-3150KVA
-
Rated short-circuit breaking current:
-
20-50KA
-
size:
-
2400 * 2500* 2350mm (determined according to customer project)
-
Color:
-
customizable
-
Enclosure protection grade:
-
IP3X
Quick Details
-
Usage:
-
Power
-
Phase:
-
Single
-
Coil Structure:
-
TOROIDAL
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WEIGUAN
-
Model Number:
-
YB-12
-
Product name:
-
YB Box-Type Substation
-
Rated voltage:
-
10KV
-
Rated current:
-
400-630A
-
Rated capacity:
-
50-3150KVA
-
Rated short-circuit breaking current:
-
20-50KA
-
size:
-
2400 * 2500* 2350mm (determined according to customer project)
-
Color:
-
customizable
-
Enclosure protection grade:
-
IP3X
Product Description
|
Product name
|
12kv combined box station
|
|
Type
|
Oil-filled Transformer
|
|
Rated capacity
|
30-3000kva
|
|
Material
|
Copper/Aluminum
|
|
Frequency
|
50Hz/60Hz
|
|
Configuration
|
High voltage distribution device, transformer, low voltage distribution device,Can be arranged into a ring network power supply,terminal power supply, dual power supply
|
|
Application
|
Residential district, urban public change, bustling downtown, construction power and so on.
|
|
Features
|
Complete set, small size, compact structure, safe and mobile operation
|
Product Paramenters
Environmental conditions :
1.Altitude: ≤1000m;
2.Ambient temperature should be within -25°C~+40°C, mean value within 24h should not exceed +35°C;
3.Outdoor wind speed should not exceed 35m/s;
4.Relative air humidity should not exceed 90% (+25°C);
5.Seismic intensity: horizontal acceleration should not more than 0.4m/s2; vertical acceleration should not more than 0.2m/s
6.The installation site should be free of fire, explosive danger, serious pollution, chemical corrosion or severe vibration.
7.Note: Any special requirements can be settled through friendly negotiation.
2.Ambient temperature should be within -25°C~+40°C, mean value within 24h should not exceed +35°C;
3.Outdoor wind speed should not exceed 35m/s;
4.Relative air humidity should not exceed 90% (+25°C);
5.Seismic intensity: horizontal acceleration should not more than 0.4m/s2; vertical acceleration should not more than 0.2m/s
6.The installation site should be free of fire, explosive danger, serious pollution, chemical corrosion or severe vibration.
7.Note: Any special requirements can be settled through friendly negotiation.
