Quick Details
-
Product name:
-

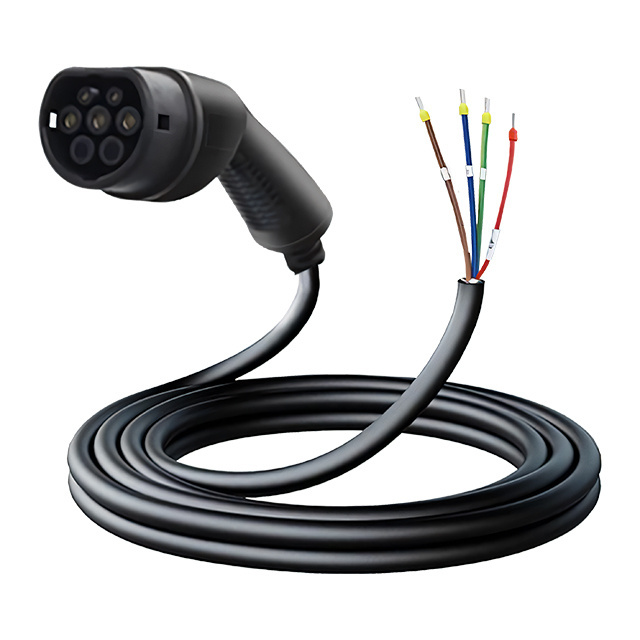

EV Charging Cable
-
IP Grade:
-
IP55
-
Operating Temperature:
-
-30°C - +50°C
-
Standard:
-
Meet IEC 62196-2
-
Type 2 EV Charging Station:
-
3.5kW 7KW Charging cable one phase
-
Performance:
-
>10000 times working life
-
Strong bearing capacity:
-
Withsand the weight of a car stable
-
Cable Length:
-
5M(Customizable)
-
Cable Material:
-
TPU
-
Service:
-
OEM, ODM
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
XD-XC-1-16-C-T2
-
Brand Name:
-
XUNDAO
-
Product name:
-
EV Charging Cable
-
IP Grade:
-
IP55
-
Operating Temperature:
-
-30°C - +50°C
-
Standard:
-
Meet IEC 62196-2
-
Type 2 EV Charging Station:
-
3.5kW 7KW Charging cable one phase
-
Performance:
-
>10000 times working life
-
Strong bearing capacity:
-
Withsand the weight of a car stable
-
Cable Length:
-
5M(Customizable)
-
Cable Material:
-
TPU
-
Service:
-
OEM, ODM
|
Item No.
|
IEC 62196-S16A
|
IEC 62196-S32A
|
IEC 62196-T16A
|
IEC 62196-T32A
|
|||
|
Phase
|
Single Phase
|
|
Three Phase
|
|
|||
|
Rated Current
|
16A
|
32A
|
16A
|
32A
|
|||
|
Cable Sections
|
3X2.5mm＾2+1X0.75mm＾2
|
3X6mm＾2+1X0.75mm＾2
|
5X2.5mm＾2+1X0.75mm＾2
|
5X6mm＾2+1X0.75mm＾2
|
|||
|
Cable Length
|
5m, 7m, 10m or customized
|
|
|
|
|||
|
Certificates
|
CE,CB,TUV,UKCA,SASO
|
|
|
|
|||
|
EV Charging Cable Product Specification
|
|
|
|
Product Specification
|
|
|
|
Fire retardant level
|
94 V-0
|
|
|
Insulation resistance
|
> 500M ohm (DC 500V)
|
|
|
Terminal temperature rise
|
<50K
|
|
|
Withstand voltage
|
2000V
|
|
|
Contact resistance
|
0.5m ohm Max
|
|
|
Product Material Testing
|
|
|
|
Mechanical life
|
no load plug in / pull out > 10000 times
|
|
|
Coupled insertion force
|
45N<F<100N
|
|
|
Impact of external force
|
qualify 1m drop
|
|
|
Working Environment
|
|
|
|
Operating temperature
|
-30°C - +50°C
|
|
|
Certificates
|
|
|
|
CE,CB,TUV,UKCA,SASO
|
|
|
