Quick Details
-
Model Number:
-
OPT-A/OPT-B
-
Brand Name:
-
SNS
-
Standard or Nonstandard:
-
Standard
-
Type:
-
2/2 Port Direct-acting Solenoid Valve, Drain Valves
-
Highest Medium Temperature:
-
90℃
-
Insulation Grade:
-
H Level
-
Voltage:
-
DC24,AC220V
-
Voltage Range:
-
±10%
-
Max. Working Pressure:
-
1.0MPa
-
Protection Class:
-
IP65
-
Certification:
-
CE
Quick Details
-
Port Size:
-
G1/2
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
OPT-A/OPT-B
-
Brand Name:
-
SNS
-
Standard or Nonstandard:
-
Standard
-
Type:
-
2/2 Port Direct-acting Solenoid Valve, Drain Valves
-
Highest Medium Temperature:
-
90℃
-
Insulation Grade:
-
H Level
-
Voltage:
-
DC24,AC220V
-
Voltage Range:
-
±10%
-
Max. Working Pressure:
-
1.0MPa
-
Protection Class:
-
IP65
-
Certification:
-
CE
Banner
CHINA SNS PNEUMATIC
------
Excellent
supplier of pneumatic components in China -----
Products Description
|

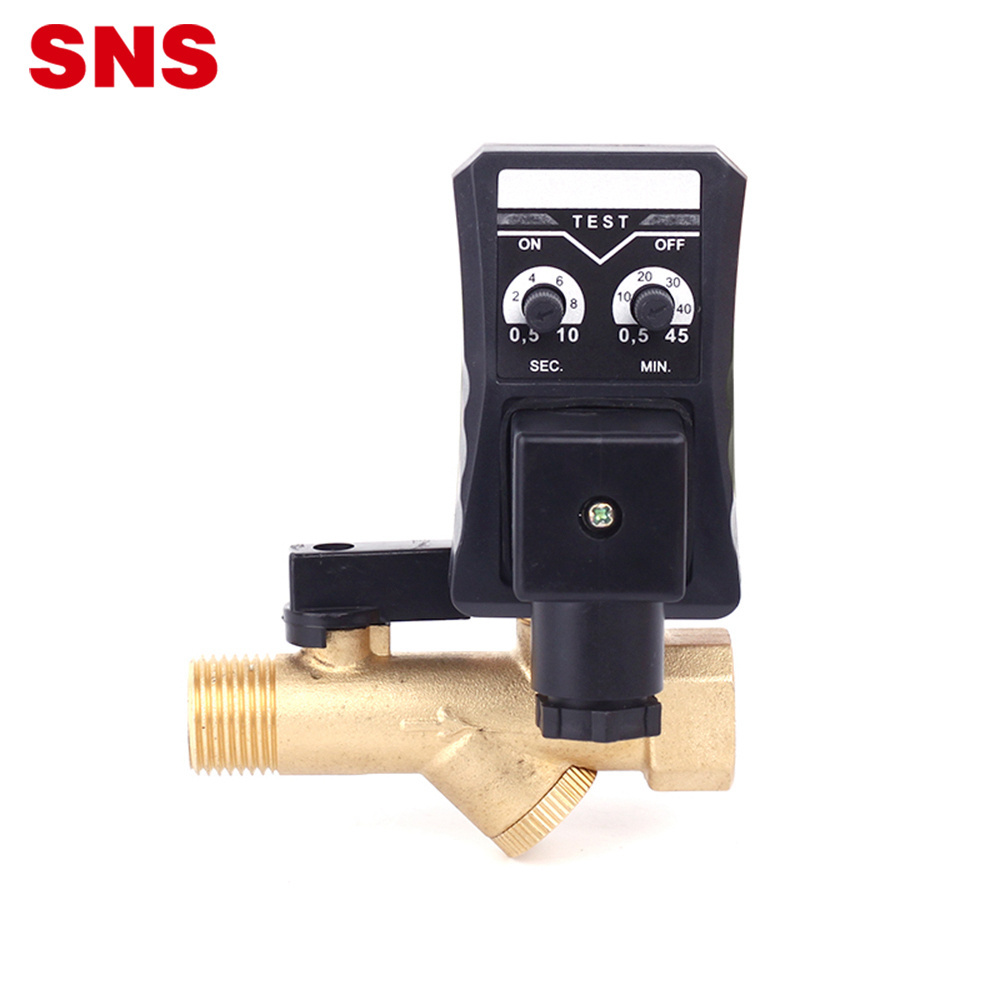

Timer
|
OPT-A/OPT-B
|
|
Interval Time(OFF)
|
0.5~45 Mins
|
|
Discharge Time(NO)
|
0.5~10S
|
|
Manual Test Button
|
Micro Switch
|
|
Power Supply
|
24-240V AC/DC 50/60Hz(AC380V can be customized)
|
|
Current Consumption
|
Max.4mA
|
|
Temperature
|
-40~+60℃
|
|
Protection Class
|
IP65
|
|
Shell Material
|
Flame Retardant ABS Plastic
|
|
Electrical Connection
|
DIn43650A
|
|
Indicator
|
LED Indicator On/Off
|
|
Valve
|
OPT-A
|
OPT-B
|
|
|
Type
|
2/2 Port Direct-acting Solenoid Valve
|
2/2 Port Direct-acting Solenoid Valve
|
|
|
2/2 Port Direct-acting Solenoid Valve
|
G1/2
|
Input G1/2 Male Thread
Output G1/2 Female Thread
|
|
|
Max.Working Pressure
|
1.0MPa
|
|
|
|
Lowest/Highest Ambient Temperture
|
2℃/55℃
|
|
|
|
Highest Medium Temperature
|
90℃
|
|
|
|
Valve Body
|
Brass(Stainless steel can be customized)
|
Brass
|
|
|
Insulation Grade
|
H Level
|
|
|
|
Protection Class
|
IP65
|
|
|
|
Voltage
|
DC24,AC220V
|
|
|
|
Voltage range
|
±10%
|
|
|
Certifications
