Quick Details
-
Brick size:
-
400*100*200 mm, 400*150*200 mm, 400*200*200 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HF
-
Voltage:
-
110V-440V
-
Dimension(L*W*H):
-
2060x1730x2580mm
-
Weight (KG):
-
2300 kg
-
Raw material:
-
Cement,sand,crush stone,fly ash
-
Pallet size:
-
880*480mm
-
Brick material:
-
26-35s
-
Keywords:
-
Concrete Block Making Machine Vibropress
-
Worker:
-
3-5
-
Machine Type:
-
Semi Automatic Brick Block Making Machine
-
Brick type:
-
Hollow Brick Concrete Brick Hole Brick
-
Advantage:
-
Operating Easily
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Free spare parts
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
-
Brick Raw Material:
-
CONCRETE
-
Production Capacity (Pieces/8 hours):
-
4000pcs per day
-
Brick size:
-
400*100*200 mm, 400*150*200 mm, 400*200*200 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HF
-
Voltage:
-
110V-440V
-
Dimension(L*W*H):
-
2060x1730x2580mm
-
Weight (KG):
-
2300 kg
-
Raw material:
-
Cement,sand,crush stone,fly ash
-
Pallet size:
-
880*480mm
-
Brick material:
-
26-35s
-
Keywords:
-
Concrete Block Making Machine Vibropress
-
Worker:
-
3-5
-
Machine Type:
-
Semi Automatic Brick Block Making Machine
-
Brick type:
-
Hollow Brick Concrete Brick Hole Brick
-
Advantage:
-
Operating Easily
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Free spare parts
Machine Introduction

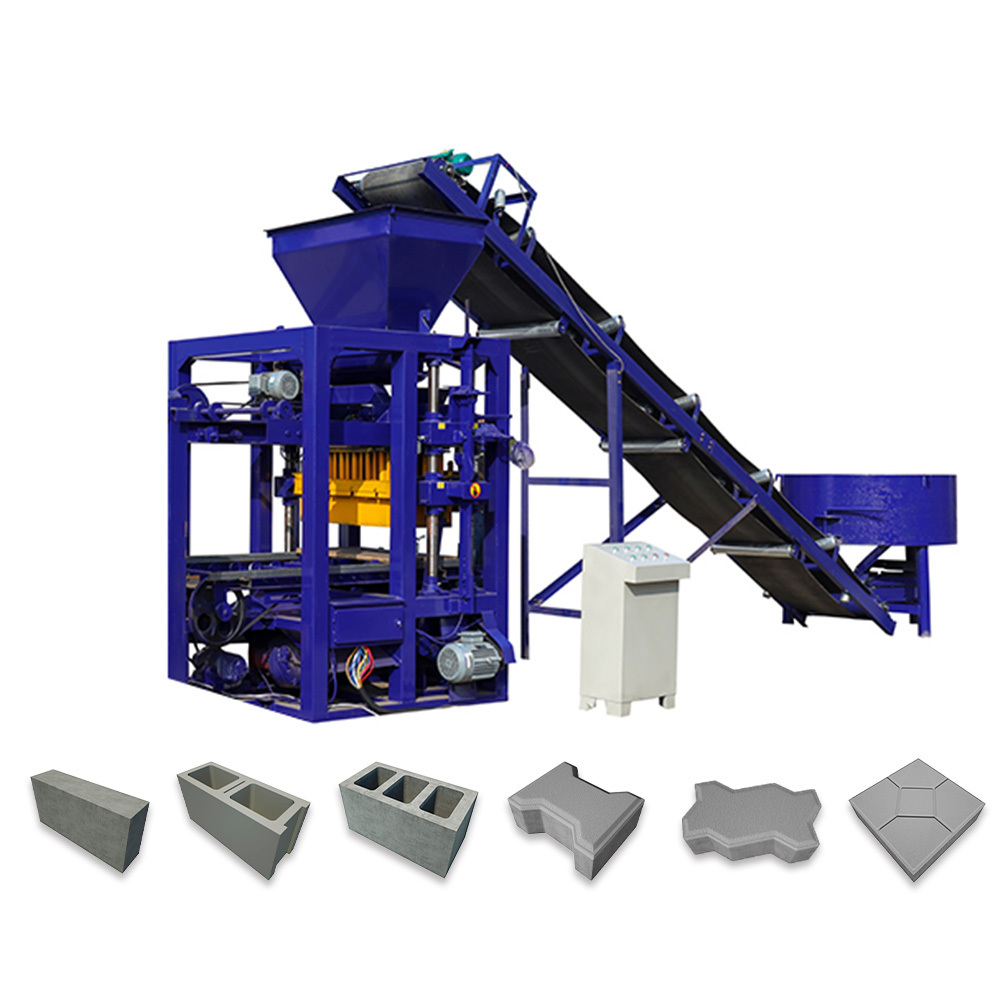

QT4-26 block making machine
is one of our sell best block making machine, it is semi automatic, suitable for making all types of hollow blocks, solid block, pavers, curbstones and so on. Now in order to suit the overseas markets and ensure the machine work more efficiently, we have used many parts of some well-known brands imported from overseas countries, List as follows.
1. Switches and motor: switches will use Japan Omron and France Schneider brand, motor will use Simens or ABB brand.
3. Hydraulic system: hydraulic spare parts be ordered according to our block machine characteristics form Taiwan.
4. Material feeder: rotary mixer type material feeding cart, finshed products get higher density and strength.
5. Mould: newest heat treatment device assure longer mould life span.
6. Spare parts: follow the machine shipment, we supply suitable wearing parts, the after-sales services will be faster.
|
Main Technical Specifications
|
|
|
|
|||
|
Overall Dimension
|
2060x1730x2580mm
|
|
|
|||
|
Vibration force
|
45KN
|
|
|
|||
|
Main vibration form
|
Platform vibration
|
|
|
|||
|
C
ycle Time
|
26-35 seconds
|
|
|
|||
|
Vibrating Frequency
|
2800-4500 rolls/minute
|
|
|
|||
|
Motors Power
|
17.85KW
|
|
|
|||
|
P
allet Size
|
880x480mm
|
|
|
|||
|
Raw Materials
|
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
|
|
|
|||
|
Applied Products
|
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
|
|
|
|||
|
Applied Fields
|
widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.
|
|
|
|||
QINGDAO HF MACHINERY CO.,LTD
is the professional manufacturer and exporter for block machine technology. Our company is located in Qingdao city Shandong Province and our factory has three manufacturing bases that cover an area of 500 acres and a plant construction area of 100,000 square meters. We are always developing advanced products to international standards to meet consumer demands.We had exported to more than 116 countries from the Philippines, Russia, Egypt, South Africa, Ghana, Oman, India, Armenia, Israel, Chile etc. and have an exceptional high reputation from our customers. We cooperate with SIEMENS for Motors and PLC intelligent control system, Schneider electrical equipment and YUKEN for the hydraulic operations to insure our machines have the highest quality standrads with a stable working status.We have more than 50 technician to ensure superior installations and after sale service to assist customer to install the machine and perfrom the proper training abroad. We warmly welcome customers from all over the world come to visit our factory and discuss long term cooperation.
