Quick Details
-
Production Capacity:
-
High
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
WANLONG
-
Voltage:
-
380V/50Hz
-
Dimension(L*W*H):
-
6000x5500x3360mm
-
Weight:
-
6400kgs
-
Warranty:
-
One Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Stone Bridge Cutting Machine
-
Application:
-
Stone Industrial
-
Color:
-
Yellow
-
Function:
-
Cut Slabs
-
Product name:
-
Laser bridge saw machine
-
Keyword:
-
CNC Marble Cutting Machine
-
Control system:
-
PLC(imported Brand)
-
Cutting materials:
-
Stone Marble Granite Tile
-
Description:
-
Automatic Table Stone Cutting Saw
-
Certification:
-
CE ISO9001
Quick Details
-
Type:
-
Bridge Saw
-
Power:
-
18.5KW
-
Cutting thickness (max):
-
400mm
-
Production Capacity:
-
High
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
WANLONG
-
Voltage:
-
380V/50Hz
-
Dimension(L*W*H):
-
6000x5500x3360mm
-
Weight:
-
6400kgs
-
Warranty:
-
One Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Stone Bridge Cutting Machine
-
Application:
-
Stone Industrial
-
Color:
-
Yellow
-
Function:
-
Cut Slabs
-
Product name:
-
Laser bridge saw machine
-
Keyword:
-
CNC Marble Cutting Machine
-
Control system:
-
PLC(imported Brand)
-
Cutting materials:
-
Stone Marble Granite Tile
-
Description:
-
Automatic Table Stone Cutting Saw
-
Certification:
-
CE ISO9001

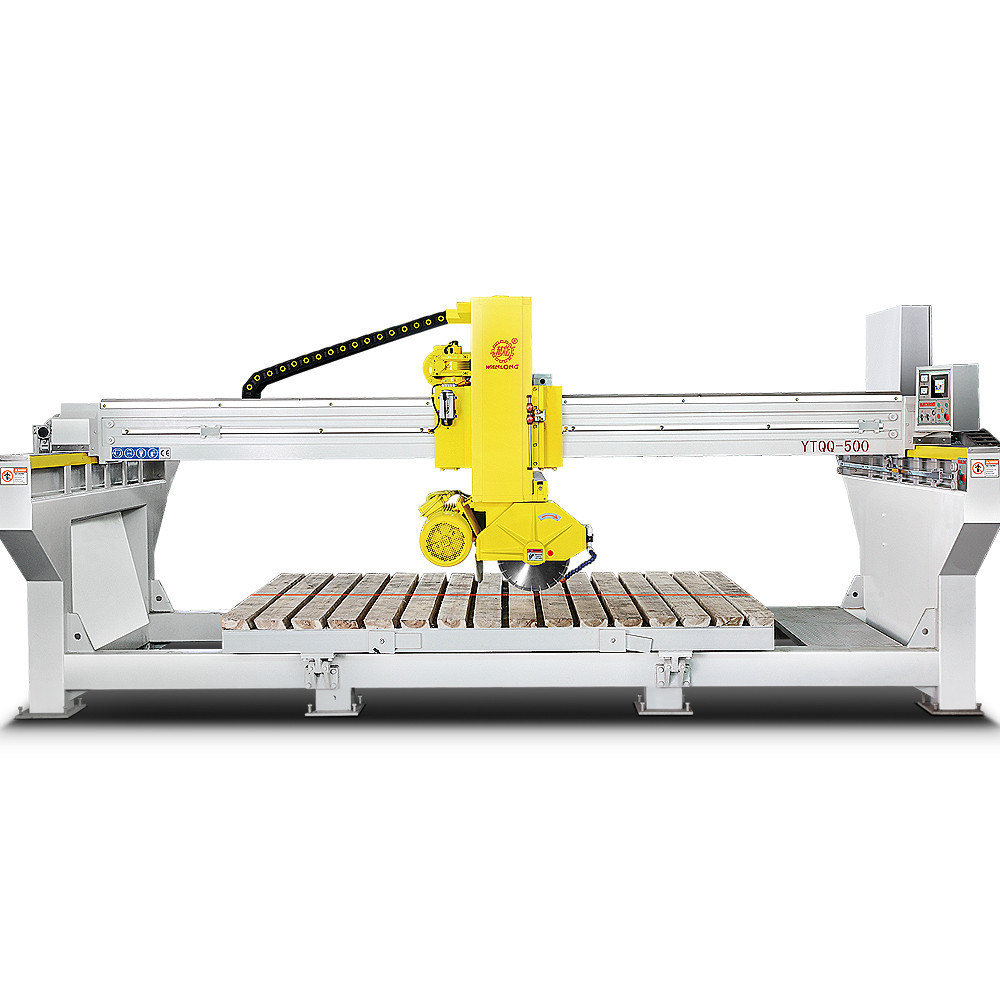

YTQQ-500 Monoblock Bridge Cutting machine: Wanlong YTQQ-500 Bridge Cutting Machine is CE Certified Precision Bridge Saw with steel stand for cutting slab thickness up to 13cm. Machine Testing and Initializing will be completed at Wanlong factory and could be in function directly after machine receipt at Buyers Factory.
| Technical Parameters | YTQQ-500 | YTQQ-600 | |
| Max.blade diameter | mm | 500 | 600 |
| Max.cutting size(L*W*H) | mm | 3000×1800×130 | 3200*200*180 |
| Cutting head rotating degree | n° | 0-90° | 0-90° |
| Table tilting degree | n° | 0-85° | 0-85° |
| Main motor power | kw | 15/18.5 | 15/18.5 |
| Water consumption | m 3 /h | 4 | 4 |
| Overall dimensions(L*W*H) | mm | 5800×3000×2900 | 5800×3000×3000 |
| Approximate weight | kg | 6000 | 6500 |
Feature Characteristics:
1) Cutting Precision of ±0.2mm with Maximum Blade Diameter of 500mm
2) Equipped with 90° Rotating Head and 0-85° Hydraulic Tilting Table for Slab Loading & Unloading
3) Iron Cast Crossbeam for Durable Working Tension, avoiding crossbeam bending for long-term machine working;
4) European & Japanese Components for Prolong Machine Life, Working Precision and Easy to Operate & Maintain.
Standard configuration:
1). SIEMENS or indigenous main motor, 15KW.
2). PANASONIC PLC, PANASONIC converter, FUJI contactor
3). Adopts encoder for forward & backward slicing
4). Top quality laser device with longer life and brightness
5). Using linear guide rail for side beams
6). Blade can rotate 90 degrees automatically
7). Worktable can tilt 85 degrees, and rotate 360 degrees automatically
