Quick Details
-
Brand Name:
-
xrf sulfur analyzer
-
Model Number:
-
GD-17040 X-ray Fluorescence Sulfur Analyzer
-
Sulfur Analyzer Application:
-
X-ray Fluorescence Sulfur Analyzer
-
Sulfur Analyzer Test Standard:
-
ASTM D4294 ED XRF
-
Oil sample quantity:
-
2.5 ml
-
Measuring range:
-
20 ppm to 5%
-
Sulfur analyzer limit:
-
20 ppm
-
Sulfur analyzer Repeatability:
-
<0.02894 (X+0.1691)
-
Sulfur analyzer Reproducibility:
-
<0.1215(X+0.5555)
-
Test method:
-
X-RAY Fluorescence method
-
Sulfur analyzer features:
-
Rapid and accurate
-
Price level:
-
Competitive price
Quick Details
-
Warranty:
-
2 years
-
Power:
-
Electronic
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
xrf sulfur analyzer
-
Model Number:
-
GD-17040 X-ray Fluorescence Sulfur Analyzer
-
Sulfur Analyzer Application:
-
X-ray Fluorescence Sulfur Analyzer
-
Sulfur Analyzer Test Standard:
-
ASTM D4294 ED XRF
-
Oil sample quantity:
-
2.5 ml
-
Measuring range:
-
20 ppm to 5%
-
Sulfur analyzer limit:
-
20 ppm
-
Sulfur analyzer Repeatability:
-
<0.02894 (X+0.1691)
-
Sulfur analyzer Reproducibility:
-
<0.1215(X+0.5555)
-
Test method:
-
X-RAY Fluorescence method
-
Sulfur analyzer features:
-
Rapid and accurate
-
Price level:
-
Competitive price

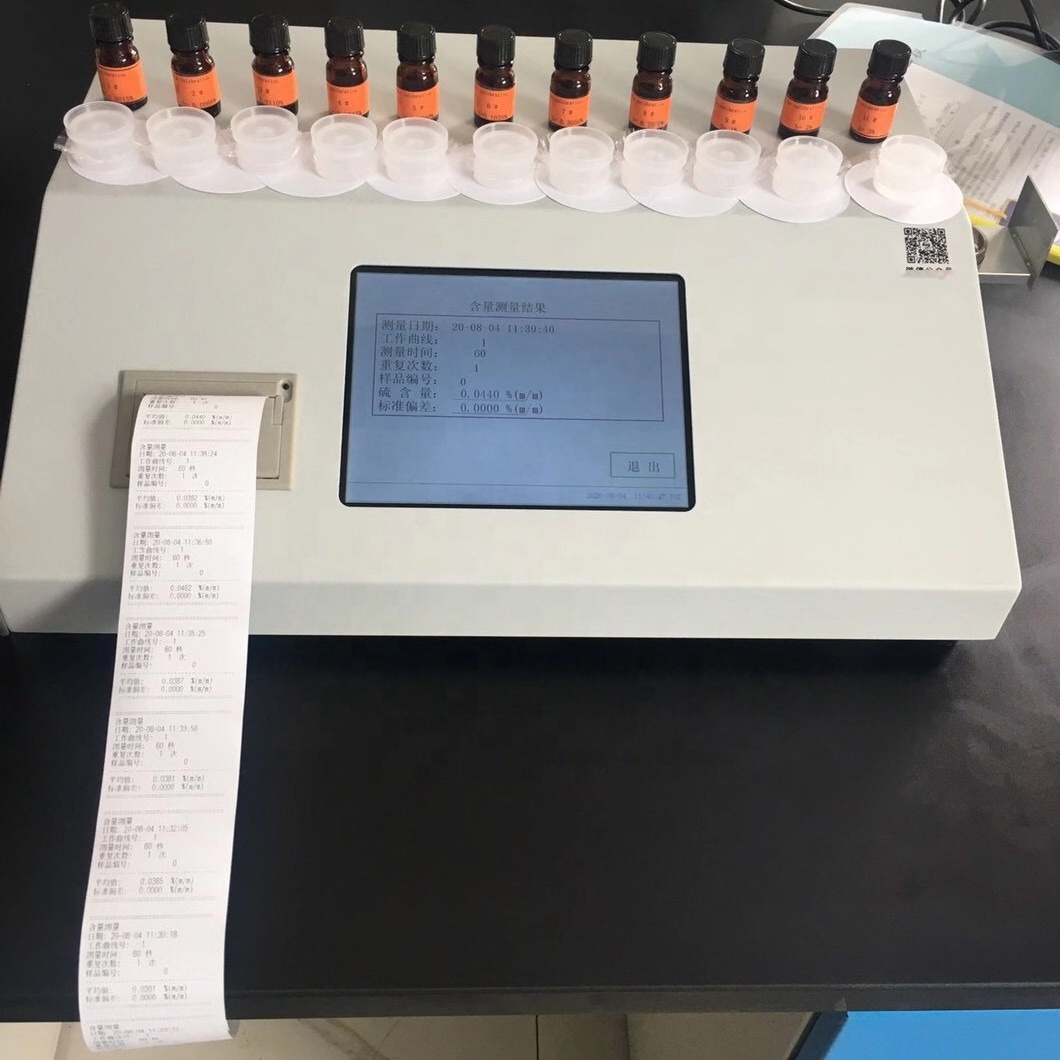

GD-17040 Factory Price Automatic XRF Sulfur Content Analyzer for Diesel Fuels
I. Brief Introduction
- GD-17040 XRF Fluorescence sulfur-in-oil analyzer is specially designed to determine sulfur content in the petroleum products.
- Adopts energy-dispersive principle, and with integrated design, it is rapid and accurate.
- The sulfur-in-oil analyzer can meet the requirements of National Standard GB/T 17040 and GB/T11140 on repeatability and reproducibility, and it can also meet requirements of ASTM D4294-03 on these indexes.
- It provides a measure to determine sulfur content during petroleum or petrochemical production process.
II. Test Purpose
1. The sulfur-in-oil analyzer can be used to determine mass% of total sulfur in the crude petroleum, petroleum, heavy oil, diesel oil, gasoline, and naphtha.
2. The Sulfur Analyzer can be used to determine total sulfur content in the products of coal chemical industry, such as primary benzene.
3. The Sulphur Analyzer can be used to determine total sulfur or sulfide in other liquid or solid powder samples.
III. Main technical parameters of sulfur-in-oil analyzer
| Model | GD-17040 XRF sulfur-in-oil analyzer | |
| Measurement range | 7 ppm to 5% | |
| Precision | Repeatability&Reproducibility | |
| Sample quantity | 2 to 3 ml (it is equal to sample depth of 3 mm to 4 mm) | |
| Measurement time | 60, 120, 240, 300, and 600 s at random | |
| Working condition | Temperature: 5 to 40 °C | |
| Relative humidity: ≤ 85% (30 °C) | ||
| Power supply: AC 220V±20V, 50 Hz | ||
| Rated power: 30 W | ||
| Dimension | 468 mm×368 mm×136 mm | |
| Weight | 13 kg | |
IV. Sulfur Analyzer's Instrument characteristics
1. Electromechanical integration; microprocessor control; large screen LCD display; Man-machine conversation; simple and beautiful;
2. This Sulfur Content Tester can determine various products and in a wide measurement range. It is rapid for analysis and it only need little standard sample.
3. Adopts fluorescence intensity ratio analysis methods, it can make correction to temperature and pressure automatically and it can also make correction to ratio of carbon and hydrogen (C/H).
4. It has self-diagnostic function, so it can determine its working state and electric parameters.
5. It takes disposable sample cell with Mylar film, so it can avoid cross contamination. Sample cell is made by a multifunction pressure device, so it is rapid and convenient. It can record sample serial number, S% (m/m), and date.
6. The sample holder can be precisely located. It can move out from inside of the instrument for sample location and anti-leakage parts replacement. It is convenient and it can avoid any contamination to detection system.
7. It can save large quantity of test data. You can browse test data and calibration curve at any time.
8. It uses a thermal printer, so it is easy to replace printing paper. It is needed to speed money on printing ribbon.
9. Equipped with a RS232 serial port, it can connect with any computer or web system.
10. Its safe X-ray protection measures can keep people from injury of X-ray radiation.
