Quick Details
-
Source voltage:
-
AC 220V, 50HZ, Customized as request
-
Power:
-
1800W
-
Air compression:
-
0.6-0.7MPa
-
Vacuum degree:
-
≤-0.095MPa
-
Size (L*W*H):
-
900*1000*1600mm
-
Weight:
-
About 700kg
-
Suitable battery size with air bag:
-
350*250*15mm
-
Sealing head length:
-
≤350mm
-
Sealing time:
-
1-99s, adjustable
Quick Details
-
Brand Name:
-
TOB
-
Place of Origin:
-
Fujian, China
-
Product name:
-
Battery Vacuum Sealing Machine
-
Source voltage:
-
AC 220V, 50HZ, Customized as request
-
Power:
-
1800W
-
Air compression:
-
0.6-0.7MPa
-
Vacuum degree:
-
≤-0.095MPa
-
Size (L*W*H):
-
900*1000*1600mm
-
Weight:
-
About 700kg
-
Suitable battery size with air bag:
-
350*250*15mm
-
Sealing head length:
-
≤350mm
-
Sealing time:
-
1-99s, adjustable

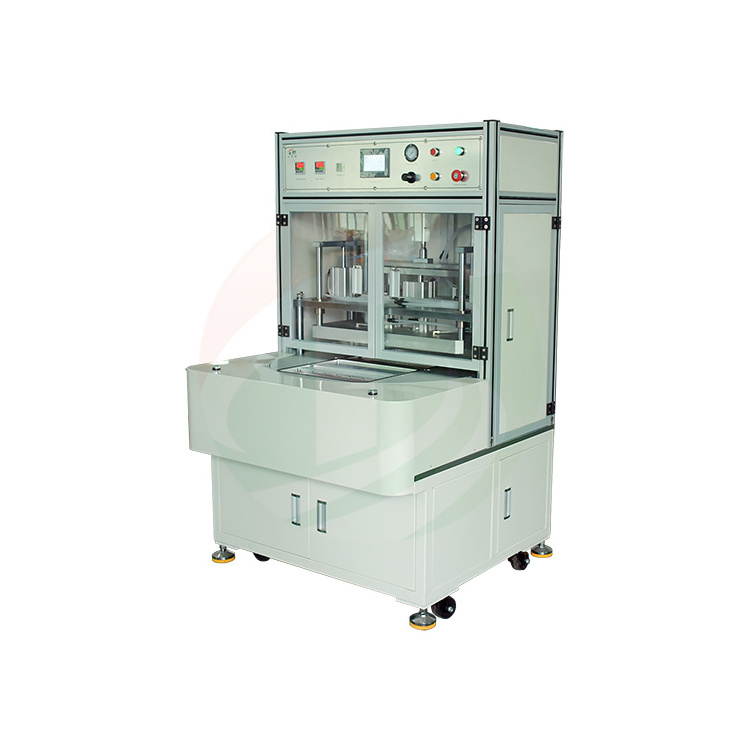

Double Working Position Turntable Battery Heat Sealing Machine For Lithium Ion Battery Vacuum Sealing
SPECIFICATION
1. This Turntable type vacuum sealer machine is used for middle size pouch cell final vacuum sealing after the lithium battery formation.
2. The feed turntable is divided into sealing and loading-unloading positions, firstly put the pouch cell on loading-unloading position, start double point button, the turntable go into sealing position, up and down chamber close, form a sealing cavity, finish vacuum, puncture and hot press sealing, start again, sealed pouch cell is send out by the turntable.
3. The double working position rotary cam drive.
4. The turntable, cavity with corrosion resistant material .
5. Can preset temperature, extraction time and sealing time.
6. Upper and lower head independent temperature control, with low and high temperature alarm function.
7. Digital vacuum degree display, clear and easy to adjust the settings.
9. Adopt programmable controller PLC to realize automatic control, touch screen man-machine conversation, convenient operation and setting.
|
Model |
TOB-EF-350 |
|
Type |
Turntable type |
|
Source voltage |
AC 220V, 50HZ, Customized as request |
|
Power |
1800W |
|
Warranty |
One year limited warranty with lifetime support |
|
Air compression |
0.6-0.7MPa |
|
Vacuum degree |
≤-0.095MPa |
|
Size (L*W*H) |
900*1000*1600mm |
|
Weight |
About 700kg |
|
Suitable battery size with air bag |
350*250*15mm |
|
Sealing head length |
≤350mm |
|
Sealing stamp width |
6mm (customized) |
|
Sealing thickness |
0.1-0.35mm |
|
Sealing temperature |
RT-250℃ adjustable, Accuracy ±2° |
|
Sealing time |
1-99s, adjustable |
|
Vacuum sealing time |
1-99s,adjustable |
|
Depth of parallelism for sealing head |
±0.01mm |
