Quick Details
-
Dimension(L*W*H):
-
3.41*1.38*1.33M
-
Weight:
-
58000 KG
-
Marketing Type:
-
Hot Product 2022
-
Mobility:
-
MOBILE
-

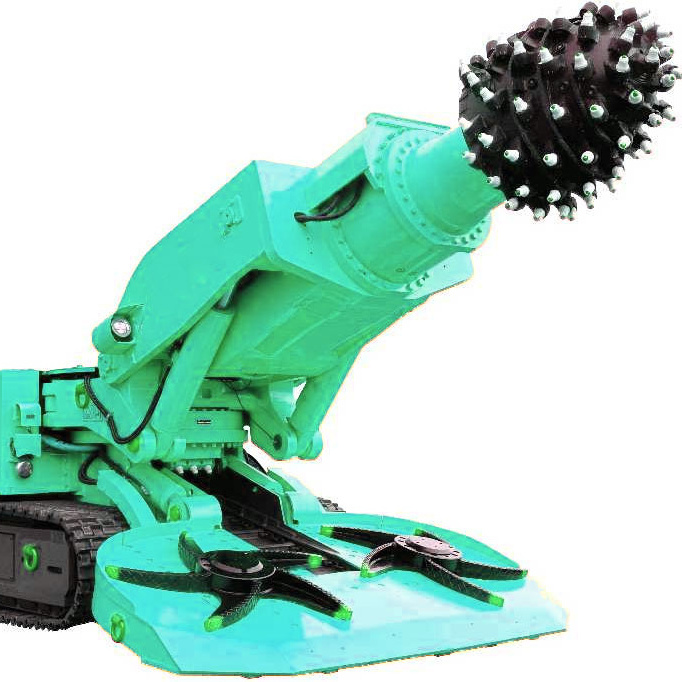

Product name:
-
Coal Roadheader
-
Application:
-
COAL MINING
-
Model:
-
HFBZ-200A
-
Color:
-
BULUE AND GREEN
-
Advantage:
-
High Performance
-
Power of Cutting motor:
-
75
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HF
-
Voltage:
-
AC1140/660
-
Dimension(L*W*H):
-
3.41*1.38*1.33M
-
Weight:
-
58000 KG
-
Marketing Type:
-
Hot Product 2022
-
Mobility:
-
MOBILE
-
Product name:
-
Coal Roadheader
-
Application:
-
COAL MINING
-
Model:
-
HFBZ-200A
-
Color:
-
BULUE AND GREEN
-
Advantage:
-
High Performance
-
Power of Cutting motor:
-
75
Product Description
Product Selling Point
The cement mill clinker uses 3D digital model design and finite element analysis for optimization. The pick arrangement is reasonable and the rock breaking ability is strong.
The picks have high cutting efficiency, the cutter body and the cutter head are resistant to wear and have a long service life. The guide plate adopts imported high-strength wear-resistant steel plate, which improves the service life.
The traveling drive adopts German original hydraulic motor and reducer, which has great traction and strong climbing ability.
High-strength cast steel track shoes, strong impact resistance.
Rexroth slice handle adopts gradual control, high sensitivity, and precise and non-clearance control features.
The handle plunger has anti-rust features, long service life, good operating feeling and low failure rate.
HFBZ-135L
1.
HFBZ-135L Suspended Type Roadheader is mainly used for driving coal roadways, semi-coal rock roadways and soft rock roadways and tunnels. Mainly aimed at the construction of low coal mine roadway soft rock. The body is short, the center of gravity is low, the climbing ability is strong, and the stability is strong;
2.
Dust removal spray system has internal and external spray functions, with good dust suppression and pick cooling effects;
3.
The traveling drive system adopts the highly integrated international advanced technology of motor and reducer, and the output torque is large, which is suitable for operation;
4.
hydraulic system adopts constant power, pressure cut-off, load-sensitive control, and uses bypass filter technology to effectively increase the life of hydraulic components and reduce system failures. The main hydraulic components are all internationally renowned brands;
5.
The electrical system uses an explosion-proof and intrinsically safe switch box and an intrinsically safe operation box, which are small in size and light in weight; High abrasiveness and long service life;
6.
The intermediate conveyor has a straight structure, smoothly overlaps with the shovel, and has a high gantry and smooth transportation;
7.
The main body and rear support are welded with a thick plate box structure, which has good rigidity and high reliability;
8.
cutting mechanism has a telescopic function, which is conducive to sweeping and trimming, reducing car moving, high cutting efficiency, and deep undercover;
9.
double seat configuration, and the seat can be adjusted to meet the needs of different operating positions, and the operation is comfortable and convenient;
10.
The operating handle fully considers ergonomics, and the operation is convenient and comfortable;
11.
Large cone angle cutting head design, reasonable arrangement of picks, strong drilling and rock breaking capabilities, low pick loss and high tunneling efficiency;
12.
self-locking washer is added to the connection position of key components, which is durable and reliable.
Product Paramenters
|
Item
|
Unit
|
Parameter
|
|
Overall dimension
|
|
|
|
Overall weight
|
t
|
42
|
|
length
|
mm
|
8932
|
|
Width
|
|
|
|
Shovel plate
|
mm
|
2800/2500
|
|
Main body
|
mm
|
2200
|
|
Height
|
|
|
|
Cutting head is laid horizontally on the highest point
|
mm
|
1608
|
|
Main body
|
mm
|
1470
|
|
Undercut depth
|
mm
|
295
|
|
Ground clearance of machine
|
mm
|
158
|
|
Range of positioning cutting
|
|
|
|
Height
|
mm
|
4000
|
|
Width
|
mm
|
4840
|
|
Area
|
m^2
|
19.3
|
|
gantry height
|
mm
|
350
|
|
Grade ability
|
°
|
±18
|
|
Travelling speed
|
m/min
|
6
|
|
Ground pressure
|
MPa
|
0.131
|
|
Gross power
|
kW
|
210
|
|
Power of Cutting motor
|
kW
|
135
|
|
Power of electric pump motor
|
kW
|
75
|
|
Input voltage
|
V
|
AC1140/660
|
|
Input frequency
|
Hz
|
50
|
|
Rotation speed of cutting head
|
r/min
|
38
|
|
Stretch
|
mm
|
500
|
|
Loading capacity
|
|
|
|
Star wheel type
|
m³/min
|
4.32
|
|
Crawler width
|
mm
|
520
|
|
Out. width of crawlers
|
mm
|
2200
|
|
Tensioning style
|
/
|
Cylinder tensionning and snap-gauge locking
|
|
Water pressure of spraying
|
|
|
|
Water pressure of outside spraying
|
MPa
|
≥4
|
|
Water pressure of inside spraying
|
MPa
|
≥2
|
|
Max. non-removable parts size
|
m
|
3.41×1.38×1.33
|
|
Max. non-removable parts mass
|
kg
|
4700
|
our company
FAQ
1. Are you trading company or manufacturer
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2. Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3. How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4. Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provide the training for your staff.
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provide the training for your staff.
5. What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6. How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
Generally, we can deliver the machine in 7 days.
