Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunrise
-
Dimension(L*W*H):
-
5100*600*1200mm
-
Weight (KG):
-
200 kg
-
Material Feature:
-
Heat Resistant
-
Load Capacity:
-
200KG
-
Conveyor models:
-
Telescopic Unloading Roller Conveyor
-
Width of working surface:
-
Customized(300-1000mm)
-
Length of conveyor:
-
Usually from 4.2-13.5m(folded & extended)
-
Roller material:
-
Plastic, Zinc steel, Stainless steel
-
Roller pitch:
-
75, 100, 150
-
Belt material:
-
PVC PU Rubber Steel
-
Usage:
-
Material Transimission
-
After Warranty Service:
-
Video technical support
Quick Details
-
Power:
-
2.2 KW
-
Warranty:
-
1 Year
-
Width or Diameter:
-
500mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunrise
-
Dimension(L*W*H):
-
5100*600*1200mm
-
Weight (KG):
-
200 kg
-
Material Feature:
-
Heat Resistant
-
Load Capacity:
-
200KG
-
Conveyor models:
-
Telescopic Unloading Roller Conveyor
-
Width of working surface:
-
Customized(300-1000mm)
-
Length of conveyor:
-
Usually from 4.2-13.5m(folded & extended)
-
Roller material:
-
Plastic, Zinc steel, Stainless steel
-
Roller pitch:
-
75, 100, 150
-
Belt material:
-
PVC PU Rubber Steel
-
Usage:
-
Material Transimission
-
After Warranty Service:
-
Video technical support
Product Description

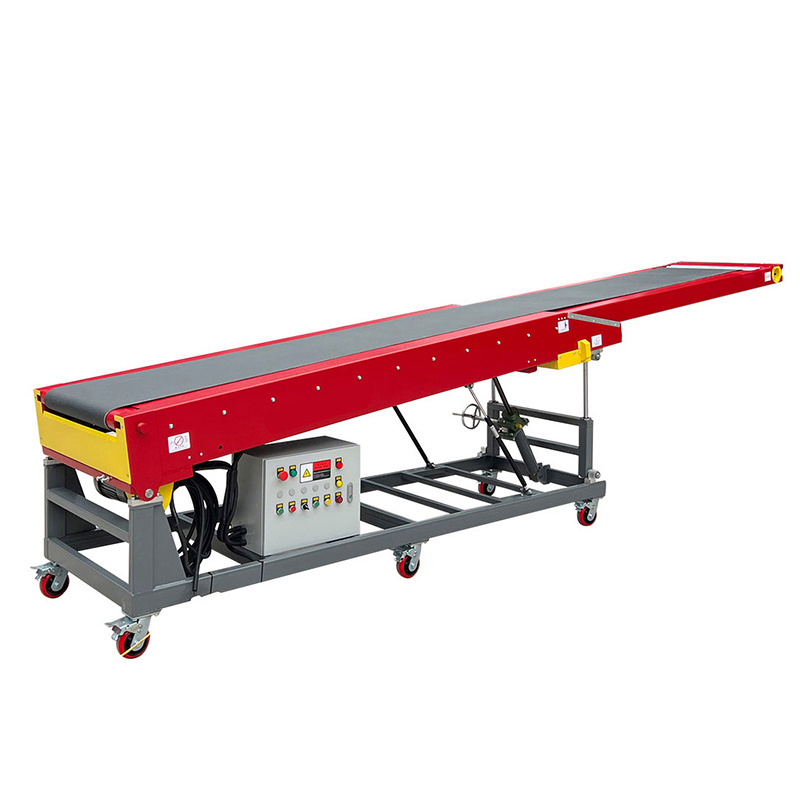

2 STAGES MOBILE TELESCOPIC BELT CONVEYOR
The telescopic belt conveyor is mainly used in the loading and unloading of vehicles and the material transmission system with telescopic requirements.Telescopic belt machine is in the ordinary belt conveyor to increase the telescopic mechanism, so that the belt machine can be freely telescopic in the direction of length. Users can adjust according to their own requirements,control the length of the conveyor at any time. This model also equipped with automatic lifting device, the user can also control the height of the conveyor end at any time.
Specification
|
Two Stages Mobile Telescopic Belt Conveyor
|
TBC51
|
|
Fixed Length
|
3.1m
|
|
Extension Length
|
2m
|
|
Total Length
|
5.1m
|
|
Belt Running Speed
|
10-45m/min
|
|
Belt Spec
|
600mm width PVK belt
|
|
Belt Top Height
|
920~1400mm,1200~1700mm,1500~2000mm
|
|
Belt Direction
|
Forward & reverse
|
|
Max. Load Capacity
|
60kg/m
|
|
Motorized Roller Power
|
0.75kw
|
|
Telescopic Motor
|
0.4kw
|
|
Machine Total Power
|
1.15kw
|
|
Standard Color
|
RED
|
|
Voltage
|
220V, single phase, 50Hz
|
PVK belt with long lift span
General electric box
Adjustable leg height system
Front control panel
Side control for extend and retract
Belt extendable
Why choose us?
15 years manufacturing experience in hydraulic lifting industry. What is it makes us walk such far.
1.Competitive price
We are the manufacture,and have lots of orders from domestic and foreign each year,so we can purchase the raw material with much cheaper price which will directly effects the price of the lifting machines.
2.Reliable quality
a. Material used. The thickness of the material is 40mm,and the material antiskid density space is 35*30mm which make the whole machine more steady and durable.
b.Ramp platform.
3.Good service
We assure you reply the email within 24 hours.
We assure you 30 month quality warranty time.
15 years manufacturing experience in hydraulic lifting industry. What is it makes us walk such far.
1.Competitive price
We are the manufacture,and have lots of orders from domestic and foreign each year,so we can purchase the raw material with much cheaper price which will directly effects the price of the lifting machines.
2.Reliable quality
a. Material used. The thickness of the material is 40mm,and the material antiskid density space is 35*30mm which make the whole machine more steady and durable.
b.Ramp platform.
We use anti-skid steel grate plate which is durable,not easy to be ponding,and not easy to deformation.
c.Tyre used. We use solid Tyre instead of pneumatic Tyre which can adapt to variety of road conditions.
c.Tyre used. We use solid Tyre instead of pneumatic Tyre which can adapt to variety of road conditions.
3.Good service
We assure you reply the email within 24 hours.
We assure you 30 month quality warranty time.
