Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
original BJJCZ LMCV4-Fiber-M(A)
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LaserMen
-
Weight (KG):
-
140 KG
-
Core Components:
-
laser source
-
Laser power:
-
20W
-
Cooling system:
-
air cooling
-
Laser type:
-
Fiber laser
-
Laser wavelength:
-
1064nm
-
Function:
-
metal and plastic marking, engraving, deep engraving
-
Laser power supply:
-
AC220V±10% 50HZ/60HZ
-
Repositioning accuracy:
-
0.003mm
-
Marking area:
-
110mm*110mm
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
original BJJCZ LMCV4-Fiber-M(A)
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LaserMen
-
Weight (KG):
-
140 KG
-
Core Components:
-
laser source
-
Laser power:
-
20W
-
Cooling system:
-
air cooling
-
Laser type:
-
Fiber laser
-
Laser wavelength:
-
1064nm
-
Function:
-
metal and plastic marking, engraving, deep engraving
-
Laser power supply:
-
AC220V±10% 50HZ/60HZ
-
Repositioning accuracy:
-
0.003mm
-
Marking area:
-
110mm*110mm
MACHINE FEATURES
1. High quality laser source (Raycus brand, optional: IPG, MAX, JPT, CAS, etc.), good laser beam quality, uniform laser power density, and stable laser power output. It has the characteristics of no laser leakage, resistance of high reflection and so on, meeting the application demand of the mainstream market.
2. High speed galvano scanner has the advantages of small size, high scanning speed and good stability. Its performance reaches the advanced level in the world.
3. Easy to use, no consumables, low power consumption; The marking is more precise and clear. It has an irreplaceable advantage in areas where depth, smoothness and fineness are highly demanded. It fully meet the needs of industrial continuous working.
4. Strong marking software with multiple functions, compatible with software AutoCAD, Coreldraw, Photoshop, etc.; supporting formats of PLT、AI、DXF、BMP、JPG, etc.; supporting SHX and TIF font library, and itself possessing multi-font library; Support marking of variable numbers, bar codes, QR codes, etc.
5. Based on different working requirements, we can build the machine with optional functions like rotary, 2D/3D work table, auto focusing, dynamic auto focusing, conveyor table, etc.
2. High speed galvano scanner has the advantages of small size, high scanning speed and good stability. Its performance reaches the advanced level in the world.
3. Easy to use, no consumables, low power consumption; The marking is more precise and clear. It has an irreplaceable advantage in areas where depth, smoothness and fineness are highly demanded. It fully meet the needs of industrial continuous working.
4. Strong marking software with multiple functions, compatible with software AutoCAD, Coreldraw, Photoshop, etc.; supporting formats of PLT、AI、DXF、BMP、JPG, etc.; supporting SHX and TIF font library, and itself possessing multi-font library; Support marking of variable numbers, bar codes, QR codes, etc.
5. Based on different working requirements, we can build the machine with optional functions like rotary, 2D/3D work table, auto focusing, dynamic auto focusing, conveyor table, etc.
|
Model
|
fiber laser marking machine
|
|
Output Power
|
20w
|
|
Wavelength
|
1064nm
|
|
Cooling system
|
Air cooling
|
|
Electrical source
|
220V/50Hz/5A
|
|
Laser Source
|
MAX
|
|
Control system
|
Original BJJCZ LMCV4-Fiber-M(A)
|
|
Marking Depth
|
Max. 1mm ( Depending on materials)
|
|
Linear speed
|
≤7000mm/s
|
SAMPLE

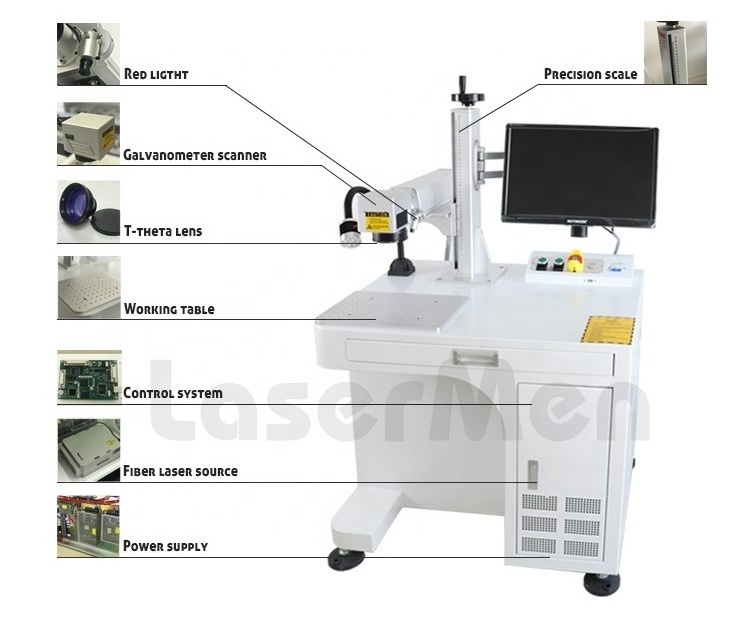

Machine Details
Ftheta-lens
It's specification of size can be customized, the standard size is 110*110mm,
The standard height is 50cm. The bigger the working size is, the higer the lifting pillar is.
Fiber laser source
With brand of MAX, best quality in China
Model name: MAX MFP-20XRepetition Rate:30~60 kHz
Supply Voltage:24 VDC
Model name: MAX MFP-20XRepetition Rate:30~60 kHz
Supply Voltage:24 VDC
As the picture shows, the target metal materials to be marked put on the fixed table
Switch
this part includes laser power, Galvo scanner power, e-stop and a main power supply. the bottom usb interface supports u disk .
Control cabinet
there are three power supply, the biggest one (in term of size) is for fiber laser source(24V), the middle one (15v) is for galvo
scanner, and the small one is for JCZ control card. Two fans on the right side is to cool these parts. Fans work with these parts
at the same time.
scanner, and the small one is for JCZ control card. Two fans on the right side is to cool these parts. Fans work with these parts
at the same time.
Packing & Shipping
1.First, the machine will be packed with plastic wrap tightly, and the plastic wrap will be many layers onto the machine, the plastic wrap will stop the mosit air from entering the machine, this is very important during sea transportation, moist air will etch the machine.
2.Second, we will use the air cushion film to pack the machine, and it can avoid scratching the machine during the transportation.
3.Third, we will use the plywood case to package the machine for the last step, and we will also put some foam between the plywood case and the machine, the foam can buffer light impact during the transportation. And the bottom of the plywood case has steel beam, it can support the machine well. The plywood case is fumigation-free, it won't take any life to your country.
2.Second, we will use the air cushion film to pack the machine, and it can avoid scratching the machine during the transportation.
3.Third, we will use the plywood case to package the machine for the last step, and we will also put some foam between the plywood case and the machine, the foam can buffer light impact during the transportation. And the bottom of the plywood case has steel beam, it can support the machine well. The plywood case is fumigation-free, it won't take any life to your country.
