- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V or customized
-
Dimension(L*W*H):
-
960*800*800
-
Weight:
-
100 kg
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
Cornstalk material pulverizer corn cob grinding machine
-
Application:
-
Poultry Farm
-
Raw material:
-
sorghum, maize straw, blighted millet,etc
-
Final product:
-
1-20mm
-
Mainshaft speed:
-
3800r/min
-
blade type:
-
hammer blade
Quick Details
-
Max. Capacity:
-
1ton/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
QISHENG
-
Voltage:
-
380V or customized
-
Dimension(L*W*H):
-
960*800*800
-
Weight:
-
100 kg
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
Cornstalk material pulverizer corn cob grinding machine
-
Application:
-
Poultry Farm
-
Raw material:
-
sorghum, maize straw, blighted millet,etc
-
Final product:
-
1-20mm
-
Mainshaft speed:
-
3800r/min
-
blade type:
-
hammer blade

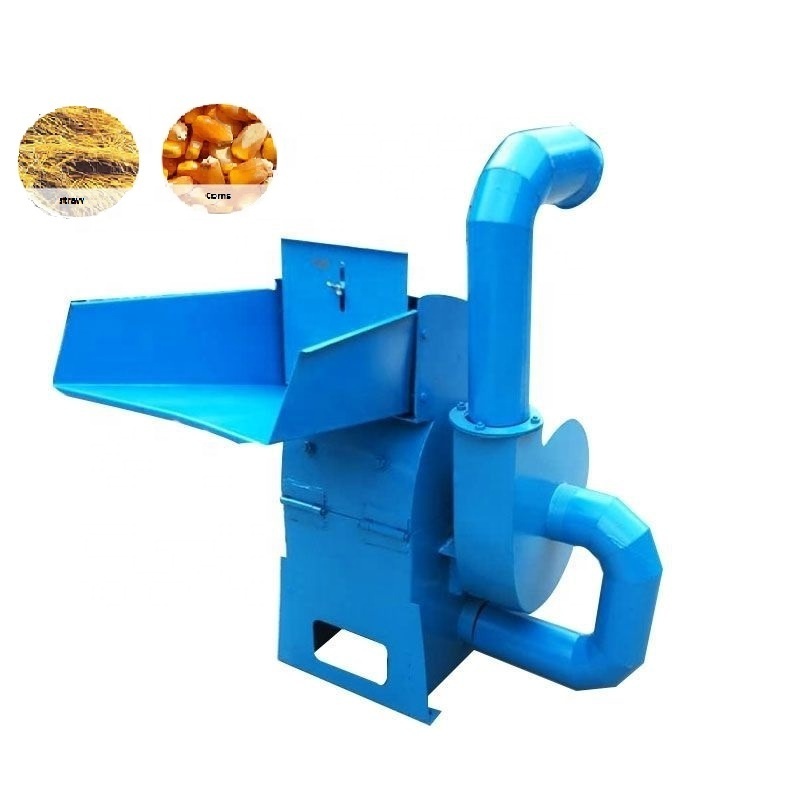

Multifunctional Dry feed hammer crusher wheat straw Cornstalk medicinal material pulverizer corn cob grinding machine
Product Description
Working Principle of corn grain/straw/stalk/wood chips/tree branches and forest waste hammer mill crusher grinder:
The hammer feed crusher is made of high quality materials welded mill feed inlet at the top, can be compatible with various forms of feeding structure, hammer symmetrical arrangement. When the mill work, material into the crushing chamber, high-speed rotary hammer blow and sieve friction at the material gradually be crushed, and the centrifugal force and airflow through the bottom of the discharge port.
1. QISHENG hammer feed crusher machine is available to grind and cut various dry materials like sorghum, maize straw, blighted millet, coconut, stalk, cassava,small shell,Lime calcium etc and the raw materials in the fields of chemical industry, the pharmaceutical industry and brewing industry,9FQ series Hammer Mill crusher are popularly used for grinding biomass,like straw/stalk/wood chips/
tree branches and forest waste,grains like corns, soybeans and maize ect.into small granular material less than 3-5mm,which is perfect size for pelletizing and briquetting.
2,The machine could be driven by the diesel engine, motor, tractor, etc.It is equipped with high carbon steel blade and
works with high efficiency. widely used in swine farm, wood factory, etc.
3. Hammmer feed crusher machine is easy in operation, sanitary, form and durable in service and really ideal equipment for grain processing.
4,Hammer mill solves all kinds of grinding problems. The grinding fineness is determined by the size of the hole diameter. The screen mesh can be properly selected according to the feed particle size requirements. This product can be used for crushing various crops
Specification
|
Items
|
9FQ-36
|
9FQ-40
|
9FQ-42
|
9FQ-50-32
|
9FQ-50-40
|
||||
|
Dimension(L*W*H mm)
|
900*750*740
|
960*800*800
|
1000*850*850
|
1158*930*1090
|
1158*110*1090
|
||||
|
Main shaft speed:r/min
|
3800
|
3800
|
3800
|
3800
|
3800
|
||||
|
Rotor diameter:mm
|
360
|
400
|
420
|
500
|
500
|
||||
|
Capacity:kg/h(based 3mm mesh)
|
500-700
|
800-1000
|
1100-1300
|
1300-1500
|
1500-2000
|
||||
|
Weight:kg
|
80
|
100
|
130
|
170
|
200
|
||||
|
Power:KW
|
5.5-7.5
|
5.5-7.5
|
11-15
|
11-15
|
15-22
|
||||
|
Hammer number
|
16
|
16
|
24
|
24
|
32
|
||||
|
Hammer arrangement
|
Single head interleaving
|
|
|
|
|
||||
|
Remarks
|
The above data are for reference only, and there may be slight deviation in the actual situation. Please refer to the actual situation
|
|
|
|
|
||||
Packing & Delivery
Packaging: 1) Standard wooden case packing, nude packing 2) As require your requirements. Shipping: 1) Professional goods shipping
forklift. 2) Port:Qingdao. Delivery: within 7-30 days after receiving the payment.
forklift. 2) Port:Qingdao. Delivery: within 7-30 days after receiving the payment.
