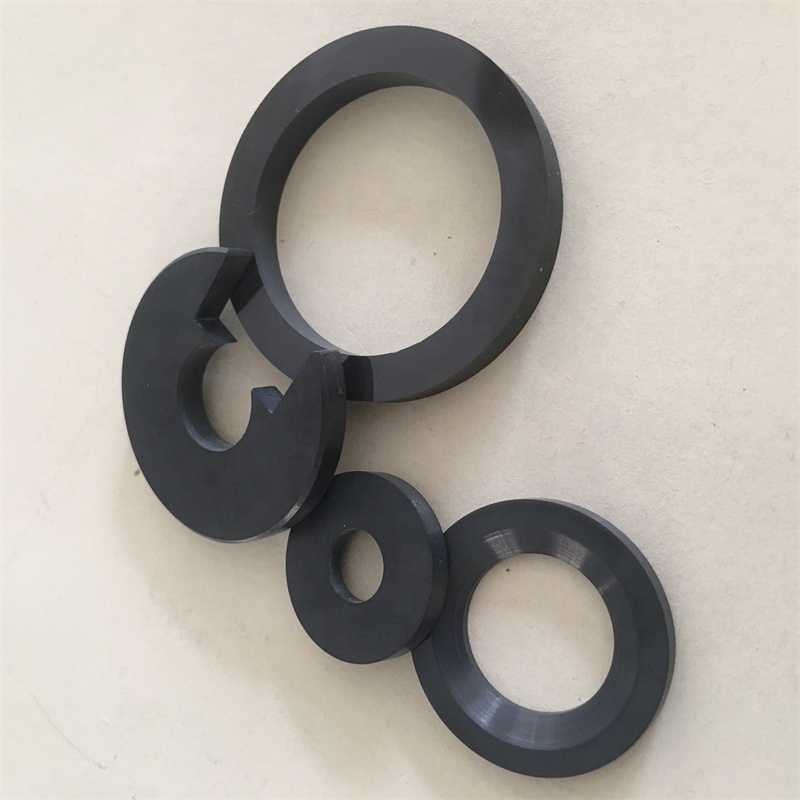

Silicon carbide Ceramic is one kind of technical ceramic materials which has very good performance in high temperature, its mechanical strength can be kept up to 1650℃. Its hardness and wear resistance performance ranks high among all technical ceramic materials.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
BB
-
Product name:
-
sic silicon carbide ceramic mechanical seal ring for heat exchanger
-
Size:
-
Size Customized
-
Color:
-
Black
-
Sintering temperature:
-
2400℃
-
Feature:
-
Insulation Performance
-
Corrosive characteristics:
-
Corrosion resistance
-
Density:
-
2.65g/cm3
-
Using temperature::
-
1200-1650℃
-
Bending srength(1100degree)::
-
100-120Mpa
-
Advantage:
-
Professional Technical Support
Quick Details
-
Material:
-
Silicon Nitride
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
BBGSC005
-
Brand Name:
-
BB
-
Product name:
-
sic silicon carbide ceramic mechanical seal ring for heat exchanger
-
Size:
-
Size Customized
-
Color:
-
Black
-
Sintering temperature:
-
2400℃
-
Feature:
-
Insulation Performance
-
Corrosive characteristics:
-
Corrosion resistance
-
Density:
-
2.65g/cm3
-
Using temperature::
-
1200-1650℃
-
Bending srength(1100degree)::
-
100-120Mpa
-
Advantage:
-
Professional Technical Support
Product Description
|
Product Name
|
High strength sic silicon carbide ceramic mechanical seal ring for heat exchanger
tungsten carbide rings rollers TC wire rolls
|
|
Material
|
SIC
|
|
Key words
|
silicon carbide ceramic seal ring
|
|
Advantage
|
High temperature resistance
|
-
-
Silicon carbide ring Introduction
SIC RINGS Features
1. Excellent thermal shock resistance
2.
Ability to withstand high structural loads to high
temperature
3.
Superior wear resistance
4. Unusually high fracture toughness
T
ungsten carbide rings rollers
Advantages
1. High strength over a broad temperature range
2.Moderate thermal conductivity
3. Low coefficient of thermal expansion
4. Moderately high elastic modulus
|
Technical date of silicon carbide(SIC)
|
|
|
|
|||
|
Item
|
SSIC
|
RBSIC/SISIC
|
RSIC
|
|||
|
Max temperature of application
|
1650℃
|
1300℃
|
1650℃
|
|||
|
Density
|
＞3.13g/cm3
|
＞3.03g/cm3
|
＞2.6g/cm3
|
|||
|
Open Porosity
|
＜0.2%
|
＜0.2%
|
15.00%
|
|||
|
Thermal Conductivity
|
120~150W/mk
|
90~110W/mk
|
24W/mk
|
|||
|
Hardness
|
9.2~9.4HRA
|
9.1~9.3HRA
|
|
|||
|
Acid Alkaline-proof
|
Excellent
|
Excellent
|
Excellent
|
|||
|
Coefficient of thermal expansion
|
4.0 K -1 x10 -6
|
4.0 K -1 x10 -6
|
4.8 K -1 x10 -6
|
|||
|
Bending strength
|
≥400Mpa
|
≥350Mpa
|
90~100Mpa(20℃）
|
|||
|
|
|
|
100~120Mpa(1100℃）
|
|||
|
Modulus of elasticity
|
400Gpa
|
350Gpa
|
240Gpa
|
|||
