Quick Details
-
Feature:
-
support WIFI
-
Operating System:
-
Linux
-
Video encoding:
-
H.264 AVC
-
Resolution:
-
up to 1920x1080P
-
Protocol:
-
HTTP/RTSP//RTMP/UDP/ONVIF
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Type:
-
video encoder wifi
-
Input:
-
HDMI
-
Feature:
-
support WIFI
-
Operating System:
-
Linux
-
Video encoding:
-
H.264 AVC
-
Resolution:
-
up to 1920x1080P
-
Protocol:
-
HTTP/RTSP//RTMP/UDP/ONVIF

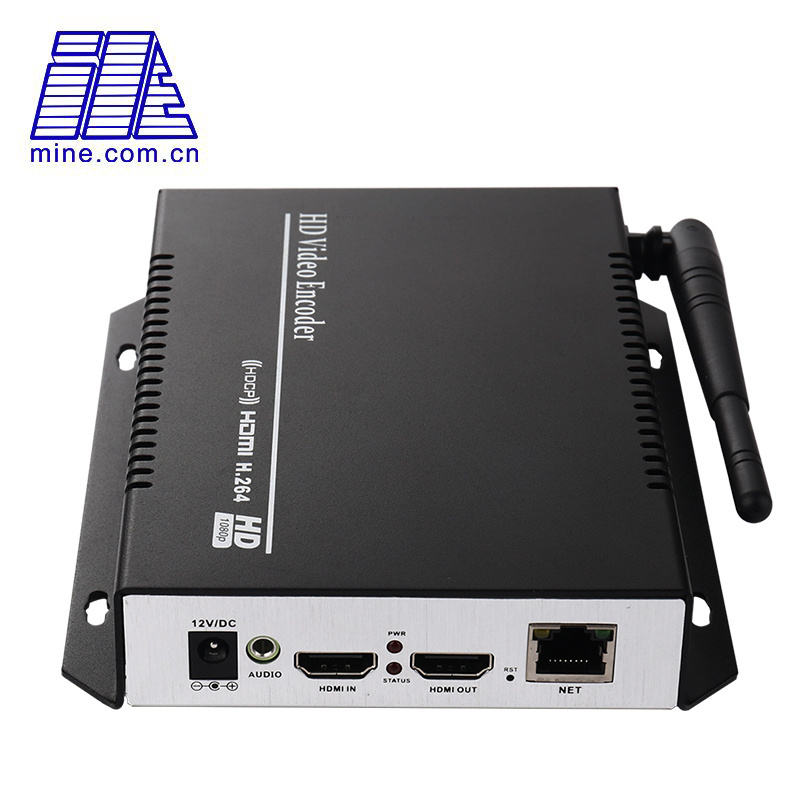

Cheap Selling 1080p H.264 HDMI Wifi Video Streaming Encoder for IPTV Modulator
H264 HDMI Video Encoder with HDMI Loopback - It is a HD audio & video encoding device with powerful functionality, which supports input HDMI max resolution at 1920×1 080 @60fps, and output stream resolution can up to 1080P@ 6 0fps. This Encoder works with HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (UNICAST/MULTICAST) Stream Protocols and ONVIF. Also the Encoder works with online live broadcast platform, such as YouTube, Facebook, Ustream, Twitter, etc.
Product features:
1. With 2 HDMI ports, 1 HDMI for input, 1 HDMI loopback.
2. Adopts professional en coding chip, embedded HiLinux System, high stability and efficiency.
3. Friendly Web Control UI, default IP is 192.168. 0 . 31 .
4. Support HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP ( Un i cast /Multicast) Stream Protocols and ONVIF.
5. Support output Multi RTMP(S) (Main stream & Sub stream.) to different Media Streaming Server.
6. Provide custom resolutions, Main Stream Preset Resolution –1920x1200, 1920x1080, 1680x1200, 1600x900, 1440x1050, 1440x900, 1360x768, 1280x720, 1280x800, 1280x768, 1024x768, 1024x576, 960x540, 850x480, 800x600, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 480x270 etc.
7. Support Text and image insert as Stream Logo for M ain stream & Sub stream.
8. Automatic detect the input video signals, output stream will show no signals when input signals interrupted.
9. Output Stream bitrate adjustable.
10. Support Audio digital gain.
11. Support External Analog audio input.
12. Support firmware upgrade.
13. Support remote control via router port forward.
14. Wifi version for option.
15. 3U chassis available, max supports 16Pcs Encoder installed.
Specification:
|
Interfaces |
|
|
Video Input |
1 HDMI input, 1 HDMI loopback Max support 1920x1080P@60Hz |
|
Audio Input |
3.5mm L/R Analog Audio line in |
|
Ethernet |
1Gbps, RJ-45 |
|
WiFi |
Option – 2.4G |
|
Video Encoding |
|
|
Video Format |
H.264/AVC High/Main/Baseline Profile |
|
Video Resolution |
Max support 1920x1080P@ 6 0FPS |
|
Video Bitrate |
0.1~32Mbps |
|
Video FPS |
5-60FPS |
|
Bitrate Control |
VBR/CBR |
|
Streaming Protocols |
HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP ( Un i cast /Multicast) ONVIF |
|
Audio Encoding |
|
|
Audio Format |
AAC/AAC+/AAC++/MP3/MP2/AC3 G711 |
|
Sample Rates |
44.1kHz/48kHz |
|
Bitrate |
12~640kbps |
|
System |
|
|
Control Method |
Web based management – IP 192.168. 0 . 31 |
|
Language |
Chinese-English control interface |
|
Firmware |
Ethernet software upgrade |
|
Working environment |
|
|
Operating temperature |
-1 0 to 7 0 deg C |
|
Storage temperature |
–20 to 8 0 deg C |
|
Relative Humidity |
5% to 90% non-condensing |
|
Miscellaneous |
|
|
Dimension ( L × W × H) |
1 70 *1 3 0*30mm |
|
Approx weight |
300g |
|
Power adapter |
AC input 100-240V 50/60Hz DC output 12V 1A |
FAQ:
Q1, Your Method of shipment?
A1, Transportation by International Express like FedEx, UPS, DHL, TNT, EMS etc, takes 3-7 days from China to you, we will choose the best way for you based on our history data, ensure the package will be received safely and smoothly.
Q2, Can I get some Samples?
A2, Yes, sure, we are honored to offer you samples to test, but sample is not free.
While to ensure the products are bought correctly and safely, we will offer online test.
Q3, Can you provide OEM service as per our request? Is it free?
A3, With our professional & experienced design team, we can provide OEM service by replacing your company logo on chassis, software interface as well as carton.
Q4, What about your Warranty?
A4, 1 year warranty for free repair or replacement.
We offer technical supports online by remote help, repair services by our experienced after-sales specialist.
