Quick Details
-
Brand Name:
-
SONOR
-
Model Number:
-
SNR
-
Operating Temperature:
-
120
-
Certification:
-
CE, LVD, RoHS
-
Current:
-
1.5A(220V),0.5A(110V)
-
Cable:
-
Customized
-
Contact form:
-
NO,NC
-
Working Temperature:
-
-30~125℃
-
Reed Switch:
-
OKI,MKA,COTO,HAMLIN
-
vertical float switch:
-
stainless steel float switch
-
horizontal float switch:
-
pp float switch
Quick Details
-
Media Type:
-
Liquid
-
Flow Rate:
-
NA
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SONOR
-
Model Number:
-
SNR
-
Operating Temperature:
-
120
-
Certification:
-
CE, LVD, RoHS
-
Current:
-
1.5A(220V),0.5A(110V)
-
Cable:
-
Customized
-
Contact form:
-
NO,NC
-
Working Temperature:
-
-30~125℃
-
Reed Switch:
-
OKI,MKA,COTO,HAMLIN
-
vertical float switch:
-
stainless steel float switch
-
horizontal float switch:
-
pp float switch
14 years manufacture experience
Certificated:CE&RoHS
Paypal is OK.
Data sheet:
|
Data Scan: |
1A1 |
2A1 |
|
|
Max Contact Rating |
10W |
50W |
|
|
Max Switching Voltage |
100VDC |
220VDC |
|
|
Max Switching Current |
0.5A |
1.5A |
|
|
Mac Breakdown Voltage |
220VDC |
300VDC |
|
|
Max Carry Current |
1.0A |
3.0A |
|
|
Max Contact Resistance |
100mΩ |
100mΩ |
|
|
Temperature Rating |
SS 304 SS316 |
-30~+125℃ |
-30~+125℃ |
|
PP |
-30~+85℃ |
-30~+85℃ |
|

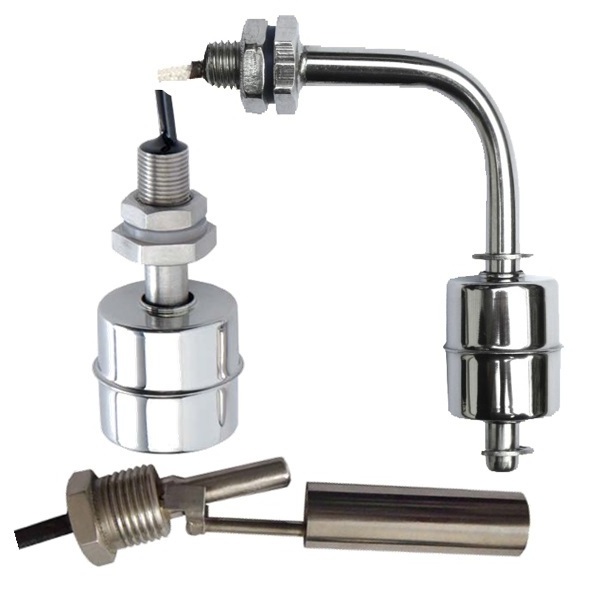

water tank float switch/vertical float switch/magnetic float switch
Vertical float switch: stainless float switch/level float switch
PP float switch
Horizontal float switch
Our factory can provide below 450 ° C Liquid float controller , all kinds of non-standard flanges, different sizes
If the products is not your expecting,please tell me your detail requirements.
Customized Float Switches
Working Systems
liquid float switch/vertical float switch/magnetic float switch Working principle
When the float ball rises or falls with the liquid to the level of the switch, The magnetic force of magnet which inside of the float
ball will cause the reed switch to turn ON. When the float ball move away from the reed switch, the reed switch will turn OFF.
