Quick Details
-
Material:
-
Copper
-
Product name:
-
wire terminals / cable terminals / crimp terminals
-
Sleeve Color:
-
Red, Blue, Black, Yellow
-
Usage:
-
Connecting Cable
-
Item No.:
-
SV1.25 , SV2, SV3.5, SV5.5
-
A.W.G.:
-
22-16, 16-14, 14-12, 12-10
-
Max Current:
-
19A, 27A, 37A, 48A
-
Wire Range:
-
0.5-1.5mm2, 1.5-2.5mm2, 2.5-4mm2, 4-6mm2
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZHEV
-
Model Number:
-
SV
-
Material:
-
Copper
-
Product name:
-
wire terminals / cable terminals / crimp terminals
-
Sleeve Color:
-
Red, Blue, Black, Yellow
-
Usage:
-
Connecting Cable
-
Item No.:
-
SV1.25 , SV2, SV3.5, SV5.5
-
A.W.G.:
-
22-16, 16-14, 14-12, 12-10
-
Max Current:
-
19A, 27A, 37A, 48A
-
Wire Range:
-
0.5-1.5mm2, 1.5-2.5mm2, 2.5-4mm2, 4-6mm2

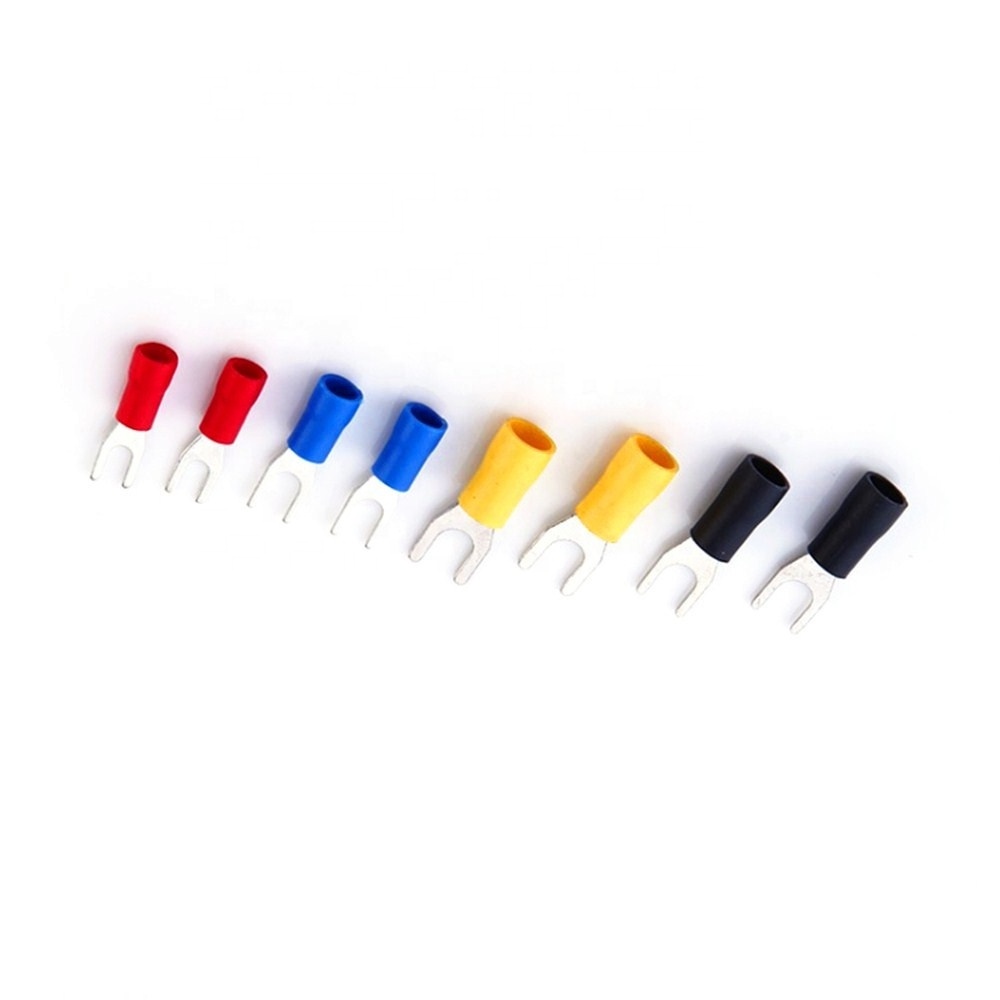

Insulated SV copper spade newest promotion cable connector high purity fork terminals ends
Material:
Insulation material: PVC
Terminal Body: Copper with tin plated
| Item No | Stud size | Dimension(mm) | Color | |||||
| d2 | B | L | F | H | Dφ | |||
| SV1.25-3.2 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10.0 | 4.3 | Red |
| SVS1.25-3.5 | #6 | 3.7 | 5.7 | 21.2 | 6.5 | |||
| SVL1.25-3.5 | #6 | 3.7 | 6.4 | 21.2 | 6.5 | |||
| SVS1.25-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 | |||
| SVM1.25-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | |||
| SVL1.25-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | |||
| SVS1.25-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | |||
| SVL1.25-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | |||
| SVS1.25-6 | 1/4 | 6.4 | 9.5 | 21.2 | 6.5 | |||
| SVL1.25-6 | 1/4 | 6.4 | 12.0 | 27.2 | 11.0 | |||
| SV1.25-8 | 5/16 | 8.4 | 14.0 | 29.0 | 12.5 | |||
| SV2-3.2 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10.0 | 4.9 | Bule |
| SVS2-3.5 | #6 | 3.7 | 5.7 | 21.2 | 6.5 | |||
| SVL2-3.5 | #6 | 3.7 | 6.0 | 21.2 | 6.5 | |||
| SVS2-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 | |||
| SVM2-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | |||
| SVL2-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | |||
| SVS2-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | |||
| SVL2-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | |||
| SVS2-6 | 1/4 | 6.4 | 9.5 | 21.2 | 6.5 | |||
| SVL2-6 | 1/4 | 6.4 | 12.0 | 27.2 | 11.0 | |||
| SV2-8 | 5/16 | 8.4 | 14.0 | 29.0 | 12.5 | |||
| Conductor section:2.5-4mm2 (A.W.G14-12) 1max=37A Thickness:1.0mm | ||||||||
| ITEM NO. | American | d2(mm) | Dimension(mm) | Color | ||||
| Bolt number | B | L | F | H | D | |||
| SV3.5-3 | #4 | 3.2 | 5.7 | 24.8 | 7 | 13 | 6.2 | Black |
| SV3.5-4 | #8 | 4.3 | 8 | 24.8 | 7 | |||
| SV3.5-5 | #10 | 5.3 | 8 | 24.8 | 7 | |||
| SV3.5-6 | 1/4 | 6.4 | 12 | 28 | 12.1 | |||
| SV3.5-8 | 5/16 | 8.4 | 12 | 33.7 | 13.7 | |||
|
Conductor section:4-6mm2 (A.W.G12-10) 1max=48A Thickness:1.0mm |
||||||||
| ITEM NO. | American | d2(mm) | Dimension(mm) | Color | ||||
| Bolt number | B | L | F | H | D | |||
| SV5.5-3.5 | #6 | 3.7 | 8.3 | 25.2 | 7.5 | 13 | 6.7 | Yellow |
| SV5.5-4 | #8 | 4.3 | 8.3 | 25.2 | 7.5 | |||
| SVL5.5-4 | #8 | 4.3 | 9 | 25.2 | 7.5 | |||
| SV5.5-5 | #10 | 5.3 | 9 | 25.2 | 7.5 | |||
| SVS5.5-6 | 1/4 | 6.4 | 9 | 25.2 | 7.5 | |||
| SVL5.5-6 | 1/4 | 6.4 | 12 | 31.2 | 12 | |||
| SV5.5-8 | 5/16 | 8.4 | 14 | 30 | 11.5 | |||
