3308T Digital Modulator HD to DVB-T Headend Decoder Modulator Converter iptv to Dvb t Qam Modulator

3308T Digital Modulator HD to DVB-T Headend Decoder Modulator Converter iptv to Dvb t Qam Modulator

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1120

≥10 Pieces

US $1100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Certification:: CE

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: WOLCK

Model Number:: WK-3308T

Certification:: CE

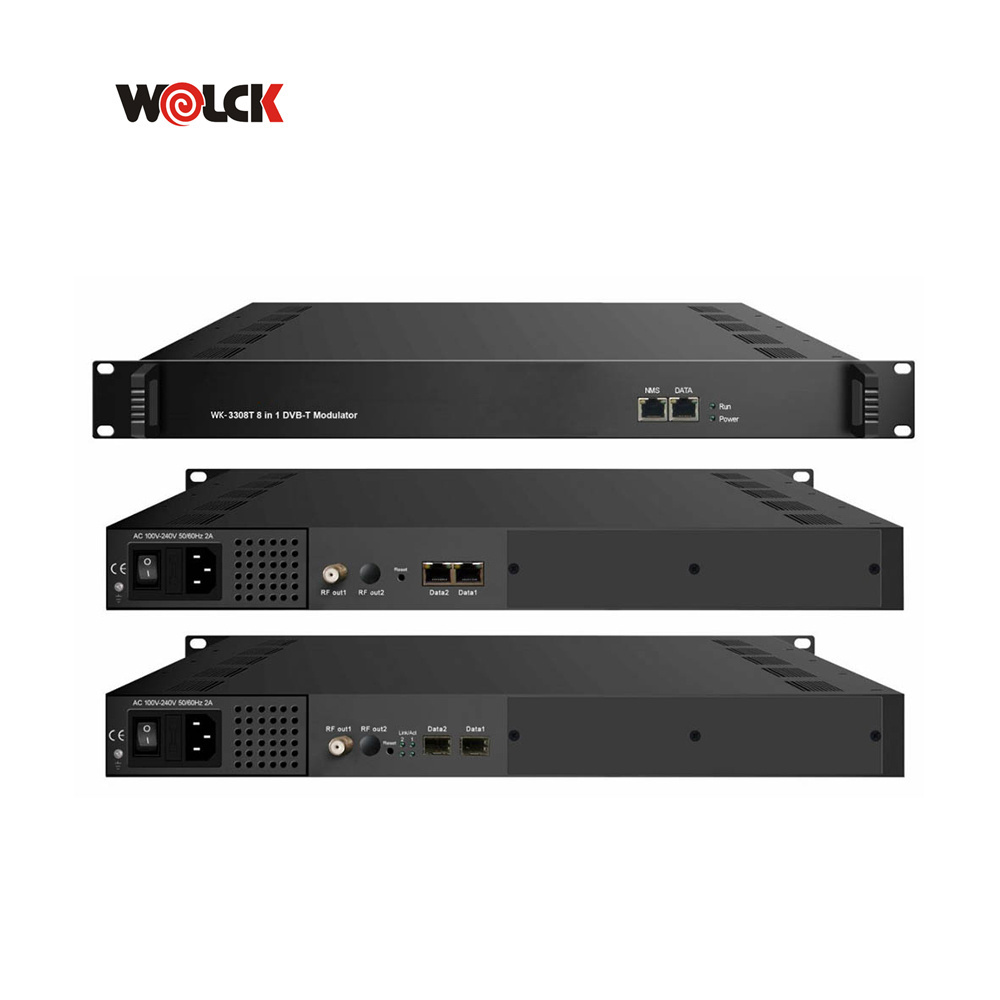

WK-3308T HD Encoder Modulator

This 8 in 1 DVB-T modulator is an all-in-one device developed by us. It has 8 multiplexing channels and 8 DVB-T modulating channels, and supports maximum 256 IP input through the GE port and 8 non-adjacent carriers (50MHz~960MHz) output through the RF output interface. The device is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation DTV broadcasting system.

1	NMS: network management port
2	Power Indicator
3	Power switch
4	AC Power Socket
5	RF output port
6	Reset IP: Reset webmaster IP address, recover it to default IP address
7	Data Input/Output 1/2
8	Link/Act Indicators

* 3 GE ports (max 256 IP in):
Data1 & Data2 bi-directional ports, max 256 IP in, 8 IP out (for 8 dvb-t out verison)
Data1 & Data2 bi-directional ports, max 512 IP in, 16 IP out (for 16 dvb-t out verison)
Data port (located on front panel), max 128 IP in
* Max 840Mbps for each input
* Supports accurate PCR adjusting
* Supports PID remapping and PSI/SI editing
* Supports up to 180 PIDs remapping per channel
* Support 8 (or 16) multiplexed TS over UDP/RTP/RTSP output
* 8 (or 16) DVB-T non-adjacent carriers output, compliant to ETSI EN300 744 standard
* Supports RS (204,188) encoding
* Support Web-based Network managementProduct Overview

Input	Input	256 IP input, 2 100/1000M Ethernet Port (SFP optional)
		Transport Protocol	TS over UDP/RTP, unicast and multicast, IGMP V2/V3
		Transmission Rate	Max 840Mbps for each input channel
Mux	Input Channel	256
		Output Channel	8
		Max PIDs	180 per channel
		Functions	PID remapping(auto/manually optional)
			PCR accurate adjusting
			PSI/SI table automatically generating
Modulation Parameters	Channel					8
		Modulation Standard					ETSI EN300 744
		Constellation					QPSK/16QAM/64QAM
		Bandwidth					6/7/8 MHz
		Trans mode					2K/4K/8K
		FEC					1/2, 2/3, 3/4, 5/6, 7/8
RF Output	Interface			F typed output port for 8 non-adjacent carriers
		RF Range			50~960MHz, 1kHz stepping
		Output Level			-20~+10dbm (for all carriers), 0.5db stepping
		MER			≥ 40dB
		ACL			-55 dBc
TS output	8 IP output over UDP/RTP/RTSP, unicast/multicast, 2 100/1000M Ethernet Ports
System	Web-based Network management
General	Demission			420mm×440mm×44.5mm (WxLxH)
		Weight			3kg
		Temperature			0~45℃(operation), -20~80℃(storage)
		Power Supply			AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
		Consumption			≤20W

24 hdmi modulator

package can be customized

1pcs in one cartoncarton

size: 59*51*15cm
GW: 8kgs
