Quick Details
-
Key Selling Points:
-
Save water,Automatic recovery,Uiform spraying
-
Pipe Diameter(mm):
-
40-100
-
Length of Pipe:
-
100-400
-
Irrigation Distance(m):
-
100-400
-
Sprinkling Width (m):
-
30-90
-
Control Area(ha):
-
6-27
-
Pressure(Mpa):
-
0.35-1.0
-
Water Flow(m^3/h):
-
4.3-72
-
Service Life(year):
-
15
-
Local Service Location:
-
None
Quick Details
-
Place of Origin:
-
China
-
Feature:
-
Automatic, Long uniform spraying range
-
Diameter:
-
6.5 cm
-
Key Selling Points:
-
Save water,Automatic recovery,Uiform spraying
-
Pipe Diameter(mm):
-
40-100
-
Length of Pipe:
-
100-400
-
Irrigation Distance(m):
-
100-400
-
Sprinkling Width (m):
-
30-90
-
Control Area(ha):
-
6-27
-
Pressure(Mpa):
-
0.35-1.0
-
Water Flow(m^3/h):
-
4.3-72
-
Service Life(year):
-
15
-
Local Service Location:
-
None
agricultural sprinkler farm irrigation gun sprinklers system
Introduction of automatic irrigation gun sprinklers system

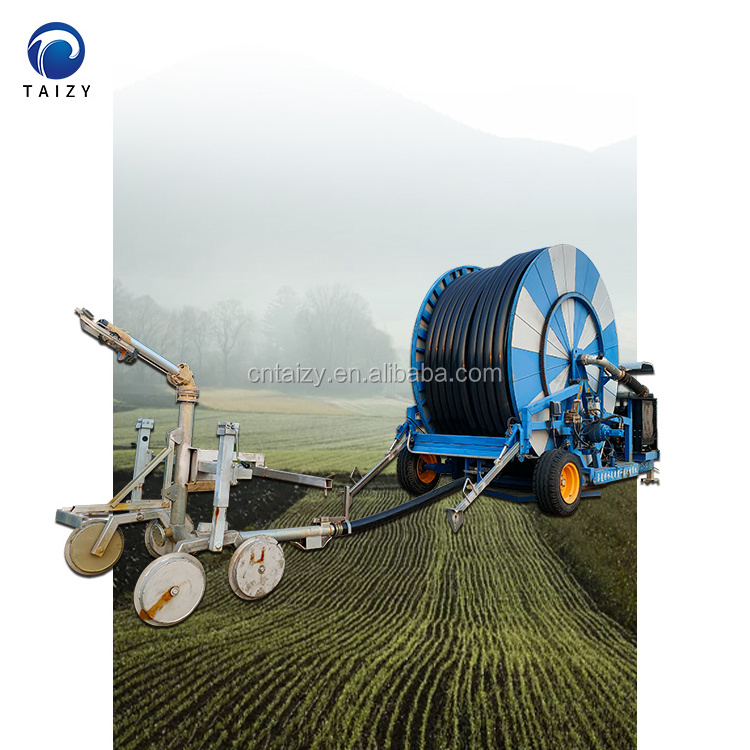

JP series reel sprinkler irrigation gun machine is a self-propelled machine driven by a water turbine. Water enters the water turbine through pressure and uses the kinetic energy of the water to drive the water turbine to rotate. The rotation of the water turbine drives the winch to rotate through the multi-function gearbox, and the PE pipe is dragged to realize the sprinkler car goes back evenly. At the same time, the water enters the PE pipe and is transferred to the sprinkler to realize the normal spraying of the sprinkler.
Main Components of automatic irrigation gun sprinklers system
It is mainly composed of a chassis, frame, winch, PE water pipe, automatic speed control device, water turbine drive device, gearbox, sprinkler car, guide device, safety device, etc.
Parameters of automatic irrigation gun sprinklers system
|
Model |
JP 40 |
JP50 |
JP65 |
JP75 |
JP90 |
JP100 |
|
Pipe Diameter(mm) |
40 |
50 |
65 |
75 |
90 |
100 |
|
Irrigation Distance(m) |
100-180 |
100-180 |
200-400 |
200-400 |
200-400 |
|
|
Sprinkling Width (m) |
30-45 |
30-45 |
47-90 |
47-90 |
47-90 |
47-90 |
|
Pressure(Mpa) |
0.35-0.70 |
0.35-0.70 |
0.4-1.0 |
0.4-1.0 |
0.4-1.0 |
0.4-1.0 |
|
15 |
15 |
15 |
15 |
15 |
Application Crops and Scope
1. The sprinkler irrigation gun machine is widely used in the spraying operations of cotton, wheat, rice, tobacco, peanuts, sugarcane, hemp, fruits, vegetables, tea, pasture, and other crops in plains and hilly areas.
2. It can also be used for dust removal in urban green spaces, power plants, and docks.
3. The sprinkler irrigation gun machine is ideal for water-saving irrigation gun equipment.
A dvantages of automatic irrigation gun sprinklers system
1. The JP series reel sprinkler irrigation gun machine has the advantages of convenient movement, simple operation, labor-saving, time-saving, fertilizer saving, water saving, long spray gun range, uniform spraying, automatic recycling of equipment, safety, and reliability.
2. JP series reel sprinklers have a low impact on crops and soil and are less affected by wind. It can effectively provide the required water and improve crop quality.
3. Low operating and maintenance costs.
