Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
Super Q
-
Model Number:
-
SV vacuum pump
-
Place of Origin:
-
Beijing, China
-
Horsepower:
-
1.5 ~ 18.5 kW
-
Cable Length:
-
Customize
-
Power:
-
1.5 ~ 18.5 kW, Electric
-
motor:
-
custom
-
Usage:
-
380v vacuum pump
-
Style:
-
Rotary vane pumps
-
brand:
-
Super Q
-
Certificate:
-
CE
-
Actual pumping speed:
-
44L/min
-
Ultimate pressure:
-
1.2 x 10^3
-
Motor:
-
Single phase, 220V, 210W, 4P, Capacitor run
Quick Details
-
Application:
-
medical appliances, Automatic packing machines, Vacuum chuck
-
Pressure:
-
High vacuum/ultra-high vacuum
-
Voltage:
-
380 v, 220v
-
Warranty:
-
1 year
-
Brand Name:
-
Super Q
-
Model Number:
-
SV vacuum pump
-
Place of Origin:
-
Beijing, China
-
Horsepower:
-
1.5 ~ 18.5 kW
-
Cable Length:
-
Customize
-
Power:
-
1.5 ~ 18.5 kW, Electric
-
motor:
-
custom
-
Usage:
-
380v vacuum pump
-
Style:
-
Rotary vane pumps
-
brand:
-
Super Q
-
Certificate:
-
CE
-
Actual pumping speed:
-
44L/min
-
Ultimate pressure:
-
1.2 x 10^3
-
Motor:
-
Single phase, 220V, 210W, 4P, Capacitor run

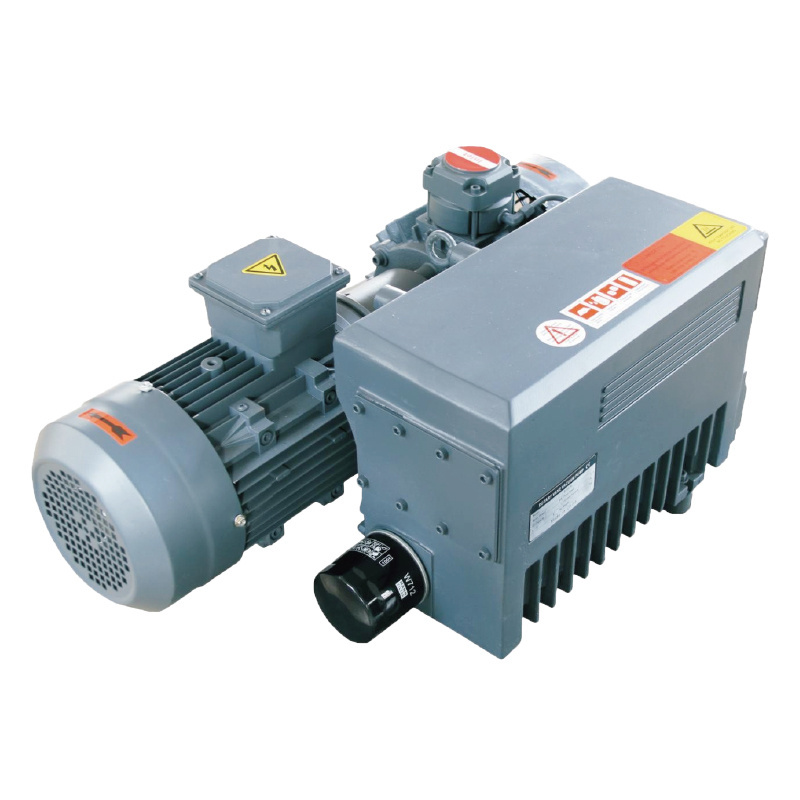

The SV series vacuum pump is a single-stage rotary vane oil-sealed vacuum pumpsuitable for low and medium vacuum applications, mainly used to remove air and other dry gases. It is one of the main equipment for low and medium vacuum, it can be used alone or as a fore pump of other vacuum pumps.
The vacuum pump has the characteristics of reliable running performance, less wearing parts, low vibration, low noise and high efficiency. The SV series vacuum pump is imported from foreign advanced technology, and the key components are imported components or imported materials. The SV series vacuum pump can completely replace similar foreign products.
● High pumping speed and low working noise, which can be less than 67db
● Strong water vapor extraction capacity
● Environmental protection. The pump is equipped with an oil mist eliminator,
which can remove 99.99% of the oil mist in the exhaust gas
● Compact structure, scientific and reasonable design, light weight, easy to
install in industrial system
|
|
SV-040
|
SV-063
|
SV-100
|
SV-160
|
|
Rated pumping speed(m3/h)
|
40
|
63
|
100
|
160
|
|
Ultimate pressure(mbar)
|
0.1-0.5
|
0.1-0.5
|
0.1-0.5
|
0.1
|
|
Noise(dB(A))
|
64
|
65
|
66
|
71
|
|
Operating temperature(℃)
|
83
|
84
|
85
|
65
|
|
Oil consumption(L)
|
1.5
|
2
|
2
|
5
|
|
Water vapor allowable pressure(mbar)
|
40
|
40
|
40
|
40
|
|
Water vapor removal rate(kg/h)
|
0.6
|
1
|
1.6
|
2.5
|
|
Air inlet(inch)
|
Rp 1-1/4"
|
Rp 1-1/4"
|
Rp 1-1/4"
|
Rp 2"
|
|
Motor power (kW)
|
1.5
|
1.5
|
3
|
4
|
|
Motor speed(rpm)
|
1440
|
1440
|
1440
|
1440
|
|
Weight(kg)
|
48
|
58
|
72
|
157
|
|
Dimension(cm)
|
65×30×28
|
65×43×29.5
|
72×43×29.5
|
85.5×49.5×43.5
|
|
|
SV-200
|
SV-250
|
SV-300
|
SV-630
|
|
Rated pumping speed(m3/h)
|
200
|
250
|
300
|
630
|
|
Ultimate pressure(mbar)
|
0.1
|
0.1
|
0.1
|
0.1-0.5
|
|
Noise(dB(A))
|
73
|
73
|
75
|
80
|
|
Operating temperature(℃)
|
72
|
81
|
83
|
88
|
|
Oil consumption(L)
|
5
|
7
|
7
|
25
|
|
Water vapor allowable pressure(mbar)
|
40
|
40
|
40
|
40
|
|
Water vapor removal rate(kg/h)
|
4
|
4.5
|
5
|
7.5
|
|
Air inlet(inch)
|
Rp 2"
|
Rp 2"
|
Rp 2"
|
Rp 3"
|
|
Motor power (kW)
|
4.5
|
5.5
|
7.5
|
18.5
|
|
Motor speed(rpm)
|
1440
|
1440
|
1440
|
1440
|
|
Weight(kg)
|
157
|
195
|
211
|
550
|
|
Dimension(cm)
|
85.5×49.5×43.5
|
98×56×44
|
101×56×44
|
178×88×73
|
Exhibitions
FAQ
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample, the sample charge and freight cost is extra
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
