72V/126Ah capacity (can be improved as per customer's request), with intelligent BMS to control the charging and discharging of each cell, then to protect the battery properly, BMS can be connected to App on the mobile phone for easy operation.
4000 times life cycles based on 99% DOD.
3 Years warranty to be provided!
Lower life cost, you are deserved to have!
- Product Details
- {{item.text}}
Quick Details
-
Battery:
-
72V115AH Lithium Battery
-
Motor:
-
4/5/7.5KW AC Motor
-
Minimum turning radius:
-
3.5
-
Max. movement after brake:
-
≤4m
-
Max. loading weight:
-
320kgs
-
Net weight:
-
500kgs
-
Rear cargo bed dimension:
-
770x1100x250mm
-
Min. ground clearance:
-
240mm
-
Wheelbase:
-
1680mm
Quick Details
-
Dimension:
-
2750x1340x1990mm
-
Battery Voltage:
-
72V
-
Keywords:
-
Lithium latest 5kw electric 4 wheel drive utv golf cart 2 seater
-
Battery:
-
72V115AH Lithium Battery
-
Motor:
-
4/5/7.5KW AC Motor
-
Minimum turning radius:
-
3.5
-
Max. movement after brake:
-
≤4m
-
Max. loading weight:
-
320kgs
-
Net weight:
-
500kgs
-
Rear cargo bed dimension:
-
770x1100x250mm
-
Min. ground clearance:
-
240mm
-
Wheelbase:
-
1680mm
Product Description

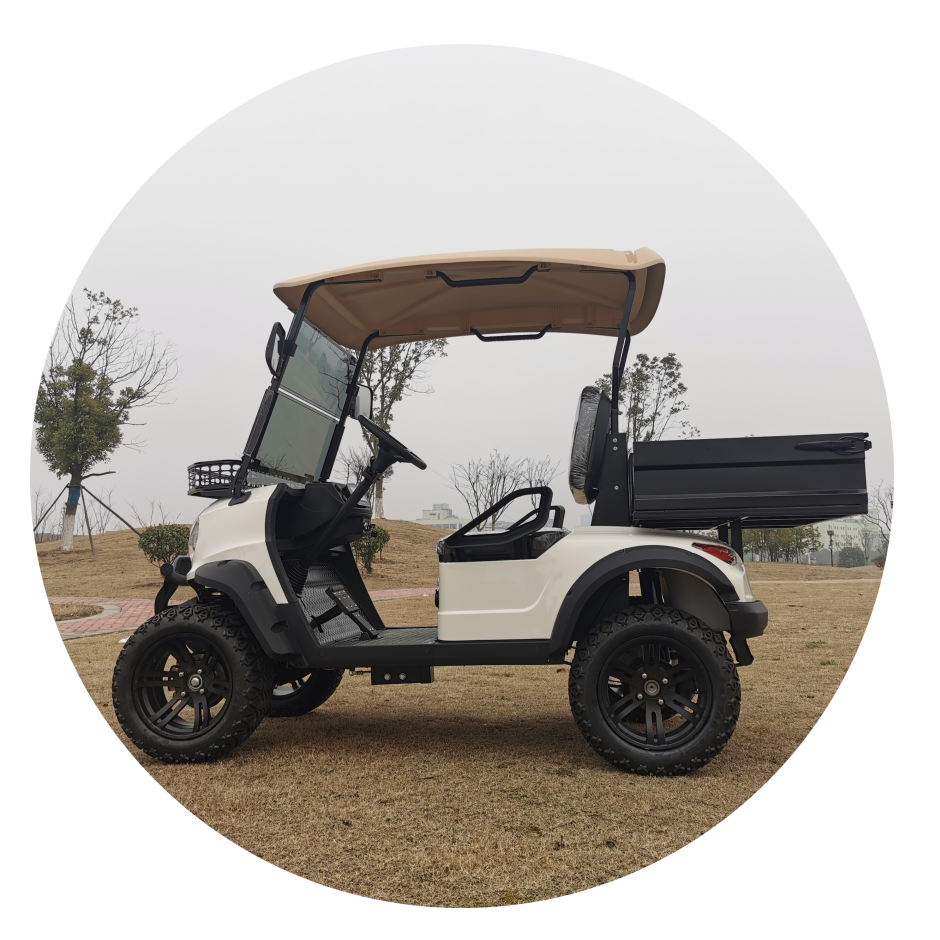

Lithium latest 5kw electric 4 wheel drive utv golf cart 2 seater
LS2020H
Lithium latest 5kw electric 4 wheel drive utv golf cart 2 seater
has steel cargo box
, it's powered by lithium battery and 72V (4KW/5KW/7KW) AC motor.
The big teeth off road tire makes electric golf car golf buggy to be suitable for using many places for different applications, such as in hotel, resort, residential community, airport, port, stations, museum, theme park, factory, campus, garden and any places where need a quite and clean vehicles, etc..
Specification
|
SPECIFICATIONS OF Lithium latest 5kw electric 4 wheel drive utv golf cart 2 seater LS2020H
|
|
|
||
|
Key Components
|
System
|
72V/5KW AC Syetem
|
||
|
|
Battery
|
72V115AH Lithium Battery
|
||
|
|
Motor
|
5KW AC Motor
|
||
|
|
Controller
|
AC controller
|
||
|
Performance
|
Passenger capacity
|
2
|
||
|
|
Range (loaded) based on flat road at a speed of 20km/h
|
>110km
|
||
|
|
Max. speed
|
32km/h (adjustable)
|
||
|
|
Minimum turning radius
|
3.5m
|
||
|
|
Max. climbing ability (loaded)
|
25%
|
||
|
|
Max. movement after brake at speed of 20km/h
|
≤4m
|
||
|
|
Max. loading weight
|
320kgs
|
||
|
|
Net weight
|
500kgs
|
||
|
Dimensions
|
Overall dimensions
|
2750x1340x1990mm
|
||
|
|
Rear cargo bed dimension
|
770x1100x250mm
|
||
|
|
Min. ground clearance
|
240mm
|
||
|
|
Wheelbase
|
1680mm
|
||
|
|
Front wheel tread
|
850mm
|
||
|
|
Rear wheel tread
|
975mm
|
||
|
Body and Frame
|
|
|
||
|
Frame
|
Welded steel framework to be treated in galvanization and powder
|
|
||
|
Body
|
PP plastic front body + PP plastic rear body
|
|
||
|
Roof
|
PP injection (Black) or vacuum plastic
|
|
||
|
Windshield
|
Organic glass Windshield, hinged
|
|
||
|
Roof supports
|
Carbon Steel, powder coated
|
|
||
|
Backrest and Seat
|
Reborn Sponge, artificial leather + plastic armrest
|
|
||
|
Floor
|
Galvanized Steel plate and anti-slip rubber floor mat
|
|
||
|
Dashboard
|
Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key
|
|
||
|
Side trim
|
Plastic
|
|
||
|
Sider mirror
|
2pcs, foldable
|
|
||
|
Electric system
|
|
|
||
|
Lighting system and horn
|
All LED lights, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), electric horn.
|
|
||
|
Backup Buzzer
|
12V
|
|
||
|
Digital meter
|
LCD Screen, with speedometer, odometer, battery power meter, and various indicators
|
|
||
|
Charger
|
Smart charger, input 110V-240V~50Hz-60Hz, output 72V, 18A
|
|
||
|
Steering and Suspension
|
|
|
||
|
Steering system
|
Single-stage rack and pinion steering system, automatic rocker compensating function
|
|
||
|
Brake system
|
4-wheel hydraulic brake front disc rear drum + foot park brake
|
|
||
|
Accelerator
|
Stepless speed change
|
|
||
|
Suspension system
|
Front macpherson independent and rear plate spring + vibration absorber
|
|
||
|
Driving mode
|
Rear axle two stage deceleration, motor direct driving
|
|
||
|
Rear axle
|
Integrated, Gear ratio 12.49:1
|
|
||
|
Wheel & Tyre
|
12x7 aluminum wheel + 23" tire（23*10.5-12）
|
|
||
Details Images
Application
Golf carts, also known as electric golf car and electric golf buggy, are environmentally friendly passenger vehicles specially designed and developed for golf courses. Golf buggy can also be used in resorts, villas, garden hotels, tourist attractions, etc. From golf courses, villas, hotels, schools to private users, it will be a short-distance transportation.
Details Make Difference
Optional Accessories For Choose
Our Advantages
3 Years Warranty Lithium Battery
LG pouch cells made lithium ion battery pack.
72V AC Curtis or SME Controller
Programmable US brand Curtis Controller (72V 400A AC Controller) or Italy made SME brand Controller (72V 450A AC Controller), with regenerative brake and walk-away function.
High and Stable Quality, Powerful, Global 2 Years Warranty.
Very Powerful and Maintenance Free AC motor.
Motor power varies from 4KW, 5KW and 7.5KW.
With 7.5KW motor, the climbing ability can be 35%.
High quality rear end with aluminum cage, silent, durable and no oil leaking
Packing & Delivery
Packaging and Loading
|
Container loading qty
|
Disassembled
(with top basket, front basket, front bumper)
|
Disassembled
(without top basket, front basket, front bumper)
|
|
Qty/20'
|
6 units
|
6 units
|
|
Qty/40'
|
12 units
|
14 units
|
|
Qty/40'HQ
|
18 units
|
20 units
|
Our electric vehicles have been exported to more than 40 countries around the world
Due to our reliable quality and competitive prices, our electric vehicles have been exported to more than 40 countries around the world, and are widely used in golf courses, hotels, resorts, parks&garden, campus, stations, airports, residential communities, shopping centres, etc.
