Annual Output 25000-100000 Tons Tile Production Plant Laboratory Mortar Mixer Grout Epoxy Mortar Mortar Mixing Station

Annual Output 25000-100000 Tons Tile Production Plant Laboratory Mortar Mixer Grout Epoxy Mortar Mortar Mixing Station

FOB Reference Price: Get Latest Price

≥1 Pieces

US $20000

≥5 Pieces

US $19000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380v/220v

Power:: 33KW

Dimension(L*W*H):: Working Site

Weight:: 6000 kg

Features:: Automatic

Product name:: Laboratory mortar mixer

Raw material:: Chemical Materials, Cement, sand, etc.

Function:: Dry Mortor Mixing

Capacity:: 10-40TPH

Packaging:: Automatic Valve Port Packaging

Batching and weighting:: Automatic System

Occupied Area:: 100-200m2

Advantage:: Convenient Operation

Application scope:: Building Material Industry

Mixer Type:: Twin shaft weightless mixer

Quick Details

Application:: Dry Mortar Production Line

Place of Origin:: Henan, China

Brand Name:: Senxi

Voltage:: 380v/220v

Power:: 33KW

Dimension(L*W*H):: Working Site

Weight:: 6000 kg

Features:: Automatic

Product name:: Laboratory mortar mixer

Raw material:: Chemical Materials, Cement, sand, etc.

Function:: Dry Mortor Mixing

Capacity:: 10-40TPH

Packaging:: Automatic Valve Port Packaging

Batching and weighting:: Automatic System

Occupied Area:: 100-200m2

Advantage:: Convenient Operation

Application scope:: Building Material Industry

Mixer Type:: Twin shaft weightless mixer

Annual Output 25000-100000 Tons Tile Production Plant Laboratory Mortar Mixer Grout Epoxy Mortar Mortar Mixing Station

Product Overview

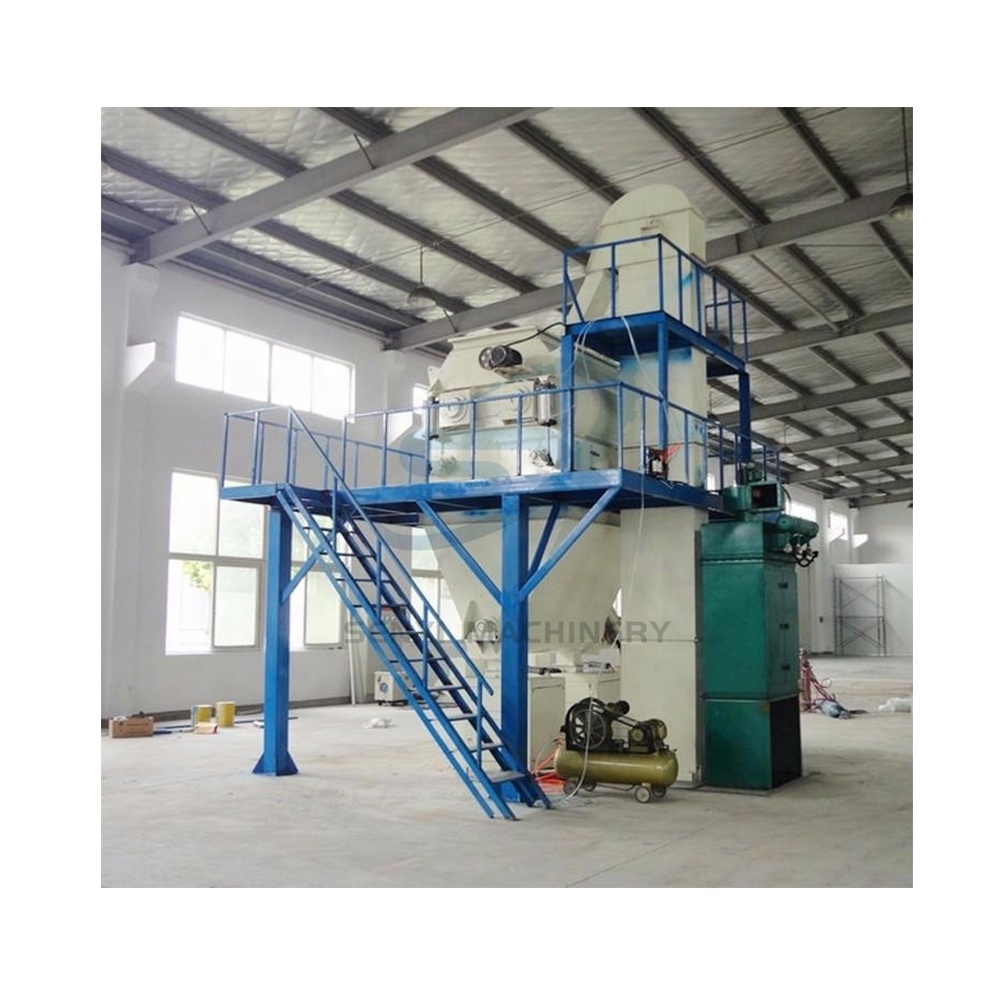

Laboratory mortar mixer plant is mainly consists of twin shaft weightless mixer, powder storage tank, screw conveyor, bucket elevator, powder measuring device (scale). Composed of a mixing silo, packaging machine, pulse dust collector, material level control system, alarm system, air compression system, and overall control system. Additionally, crushing and drying systems can be added as needed. The Laboratory mortar mixer plant is mainly used for the production of various dry powder mortars such as masonry mortar, plastering mortar, mortar required for insulation systems, decorative mortar, etc.

Working Principle

The main machine of l aboratory mortar mixer plant adopts a dual axis non gravity mixer, and the materials in the raw material warehouse are fed into the batching hopper through a screw conveyor pump.

After measurement, lift it into the mixing bin through a bucket elevator and evenly mix it after falling into a dual axis gravity free mixer, then enter the finished product silo and use a fully automatic packaging machine for bag packaging.

FEATURES AT A GLANCE

1.The precise control system of universities is safe and reliable.

2.Customized according to customer's on-site requirements.

3.High quality conveying system with extremely low failure rate. 4.Efficient mixing system 5.Efficient dust removal system 6.High precision weighing system 7.High precision packaging system

PRODUCT SPECIFICATIONS

Model	Main Machine Volume （M3)	Cover an Area (M2)	Capacity (T)	Total Power (KW)	Equipment Height (M)	Operating Person
SX-JT2000	2	100	10-15	≈60	8.5	>=3
SX-JT3000	3	150	20-30	≈80	9	>=4
SX-JT4000	4	200	30-40	≈100	10	>=5
